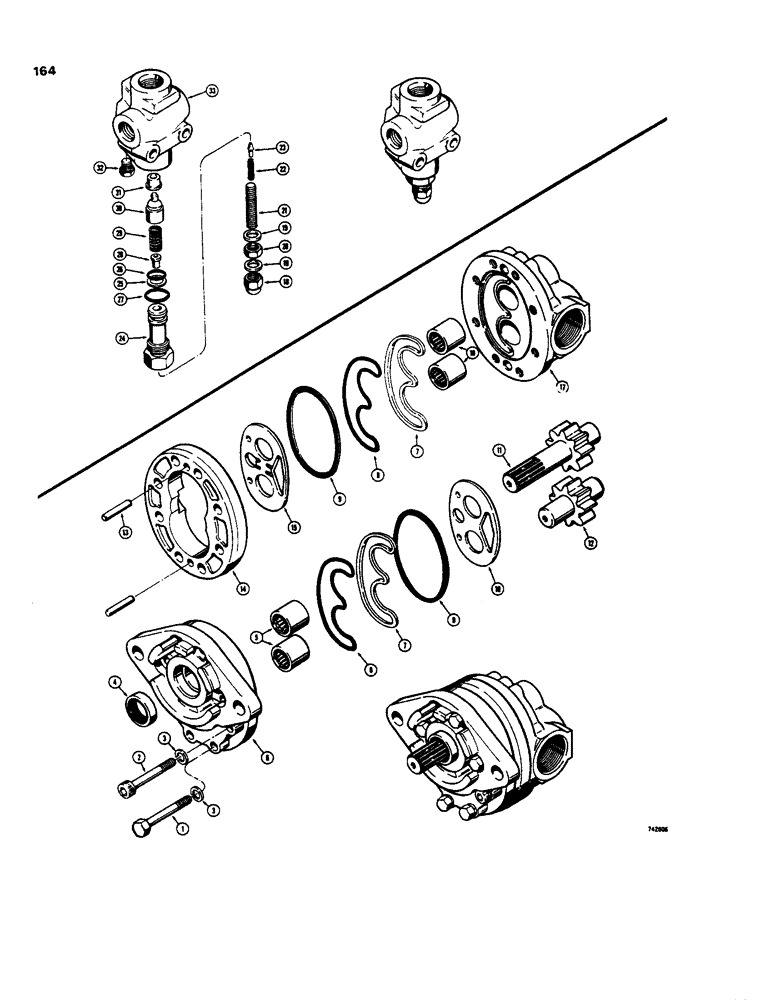

Запчасти Case 35 (164) - D52271 HYD PUMP, USED W/ 3 POINT HITCH NONLOADER MDLS ONLY

D52271

PUMP

- hydraulic, Webster Electric no. 2YDS6- 1LD 12 GPM . 2000 RPM . 2000 PSI, Includes: Ref. 1 - 17

1шт.

1

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex,3/8" - 16 NC x 2-1/2"

6шт.

2

61-640

HEX SOC SCREW,3/8"-16 x 2 1/2"

SHCS - 3/8" - 16 NC x 2-1/2"

2шт.

3

D52474

WASHER - special

8шт.

T30976

COVER ASSEMBLY - shaft end, Includes: Ref. 4 - 6

1шт.

4

T39095

OIL SEAL

- oil, drive gear

1шт.

5

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, drive and idler shaft

2шт.

6

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

7

T39085

RING

- backup

2шт.

8

T39086

SEALING RING

RING - sealing

2шт.

9

T39084

SEAL RETAINER

- pressure plate

2шт.

10

T39090

PLATE ASSY.

PLATE - pressure, shaft end

1шт.

D52465

GEAR-SET

GEAR SET - drive and idler, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

DRIVE SHAFT AND GEAR - pump

1шт.

12

NSS

NOT SOLD SEPARAT

IDLER SHAFT AND GEAR - pump

1шт.

13

T39083

PIN

- dowel

2шт.

14

T39082

PLATE

HOUSING - gear

1шт.

15

T39089

LARGE PLATE

PLATE - pressure, closed end

1шт.

D52464

COVER ASSEMBLY - closed end, Includes: Ref. 16 and 17

1шт.

16

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, drive and idler shaft

2шт.

17

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

D52170

VALVE - relief, Includes: Ref. 18 - 33

1шт.

18

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, main relief valve, D52170

1шт.

19

D26270

WASHER, SEALING

WASHER - special, D52170 relief valve

2шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, lock, 5/16" -24NF, D52170 relief valve

1шт.

21

176-299

SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt

SCREW - adj, main relief valve, 5/16" - 24 NF x 7/8", D52170

1шт.

22

D26268

SPRING

- pilot, D52170 relief valve

1шт.

23

D26267

PLUNGER

- relief valve, D52170

1шт.

24

D26262

CAP

- relief valve, D52170

1шт.

25

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, L30444 seal, D52170 relief valve

1шт.

26

L30444

O-RING,0.521" ID x 0.661" OD

- relief valve cap, small, D52170

1шт.

28

D26266

SEAT

- plunger, D52170 relief valve

1шт.

29

D52319

SPRING

- relief valve, D52170

1шт.

30

D37062

VALVE

POPPET ASSEMBLY - main relief valve, D52170

1шт.

31

D37063

SEAT

- poppet, D52170 relief valve

1шт.

32

D52471

PLUG

- special, 1/8" NPT, D52170 relief valve

2шт.

33

NSS

NOT SOLD SEPARAT

BODY - relief valve, D52170

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- relief valve cap, large, D52170

1шт.
