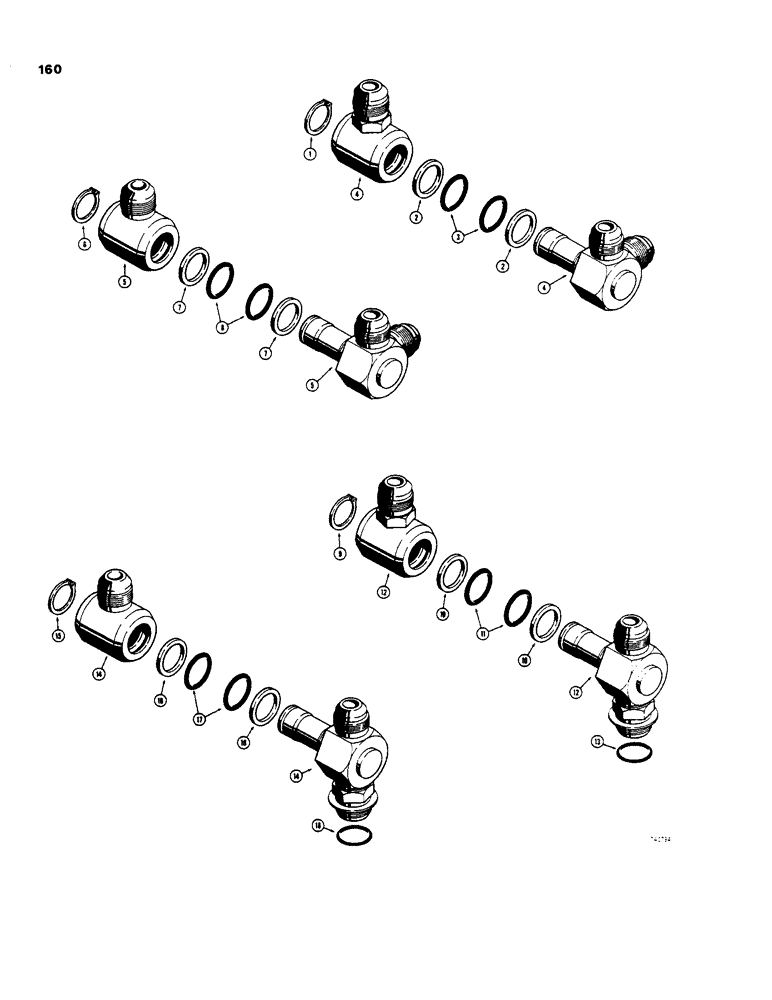

Запчасти Case 35 (160) - D50374 AND D60947 SWIVEL JOINTS

D50374

HYDRAULIC SWIVEL

JOINT ASSEMBLY - swivel, backhoe boom hydraulics, before backhoe, when replacing complete assembly order D60947 swivel for service, Includes: Ref. 1 - 4, Serial Range: -5254036

1шт.

D50374 AND D60947 swivel joints are R.H..

1шт.

1

B18206

SNAP RING,#87, Ext

RING- retaining

1шт.

2

D54578

SEAL

RING - backup, seal

2шт.

3

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

O-RING - internal

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - swivel joint

1шт.

D60947

FITTING

JOINT ASSEMBLY - swivel, backhoe boom hydraulics, backhoe, Start Serial: 5254036

1шт.

D50374 AND D60947 swivel joints are R.H..

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - swivel joint, Includes: Ref. 6 - 8

1шт.

6

S70827

SNAP RING,#102, Ext

Ring, Snap, #102, Ext

1шт.

7

D61902

RING

- backup, seal

2шт.

8

16202

O-RING,40544" ID x 13" OD x 1"

2шт.

D50375

HYDRAULIC SWIVEL

JOINT ASSEMBLY - swivel, backhoe boom hydraulics before backhoe, when replacing complete assembly, order D60948 swivel for service, Includes: Ref. 9 - 12, Serial Range: -5254036

1шт.

D50375 AND D60948 swivel joints are L.H..

1шт.

9

B18206

SNAP RING,#87, Ext

RING - retianing, D50375 and D60948 swivel joints

1шт.

10

D54578

SEAL

RING - backup, seal, D50375 and D60948 swivel joints

2шт.

11

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

O-RING - internal, D50375 and D60948 swivel joints

2шт.

12

NSS

NOT SOLD SEPARAT

BODY - D50375 and D60948 swivel joints

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, External, D50375 and D60948 swivel joints

1шт.

D60948

JOINT

ASSEMBLY - swivel, backhoe boom hydrauics, backhoe D60948 swivel for service, Includes: Ref. 14 - 18, Start Serial: 5254036

1шт.

D50375 AND D60948 swivel joints are L.H..

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - swivel joint, D50375 and D60948

1шт.

15

S70827

SNAP RING,#102, Ext

Ring, Snap, , D50375 and D60948 swivel joints #102, Ext

1шт.

16

D61902

RING

- backup, seal, D50375 and D60948 swivel joints

2шт.

17

16202

O-RING,40544" ID x 13" OD x 1"

- interal, D50375 and D60948 swivel joints

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, External, D50375 and D60948 swivel joints

1шт.
