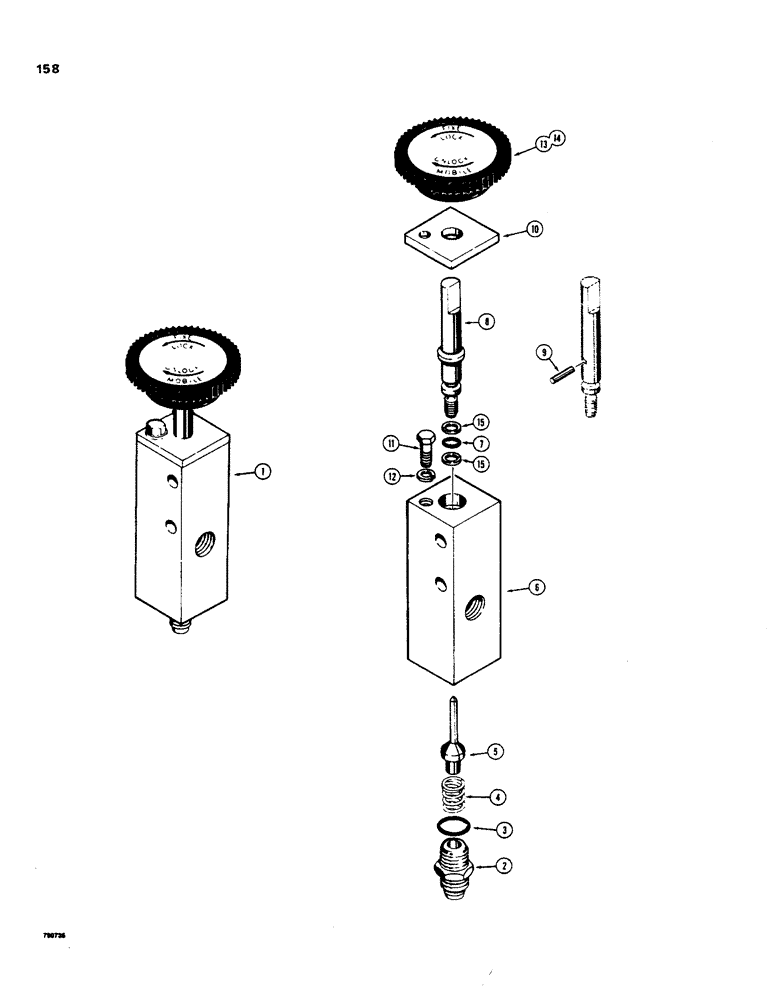

Запчасти Case 35 (158) - D71902 BACKHOE LOCKING VALVE

1

D75581

VALVE

- cylinder locking, Includes: Ref. 2 - 15

1шт.

2

218-5079

HYD CONNECTOR,1/2" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR - male, straight, Includes: Ref. 3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

D36669

SPRING

- poppet

1шт.

5

F77048

VALVE POPPET

POPPET - valve

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- shaft

1шт.

8

D75569

SPOOL

SHAFT - valve control

1шт.

9

138-38

LOCK PIN,3/32" x 9/16", Slotted

PIN, , If used 3/32" x 9/16", Slotted

1шт.

10

D36665

RETAINER

PLATE - shaft retaining

1шт.

11

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

D36667

KNOB

- valve, Includes: Ref. 13A

1шт.

13a

178-403

SCREW - set, no. 8 - 32 NC x 1/4" not shown

1шт.

14

321-907

DECAL

- locking

1шт.

15

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- seal backup

2шт.
