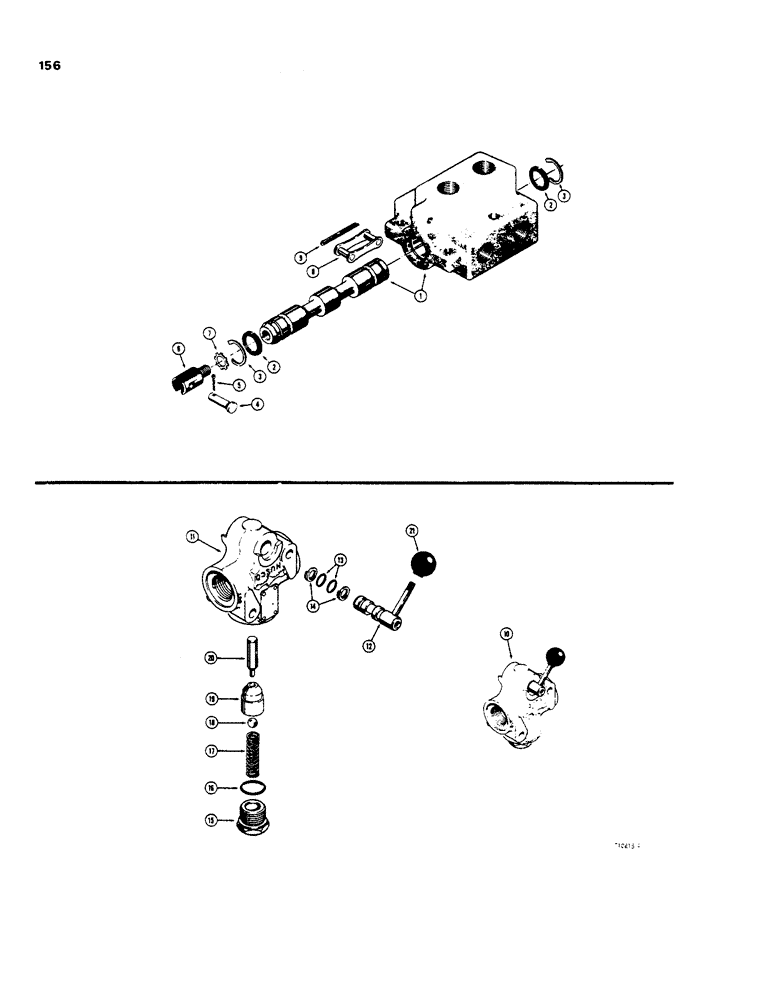

Запчасти Case 35 (156) - D45399 DIVERSION VALVE

D45399

LOCK VALVE

VALVE - diversion, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

D23691

O-RING

SEAL - quad ring, spool

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

4

D23693

AXLE PIN

PIN - clevis

1шт.

5

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

6

D23691

O-RING

YOKE - control rod

1шт.

7

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

8

D23698

HANDLE

LINK - valve

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

10

L51101

VALVE

- boom lockout, complete, Includes: Ref. 11 - 20

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

12

L33860

HANDLE

AND CAM ASSEMBLY - valve

1шт.

13

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- cam

2шт.

14

D51535

RING

- backup, cam

2шт.

15

D51536

PLUG - check valve

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Seal - check plug

1шт.

17

D51537

VALVE SPRING

SPRING - check valve

1шт.

18

211-102

BALL,1/2" Dia

- check valve

1шт.

19

D51538

SPOOL

POPPET - check valve

1шт.

20

L33861

AXLE PIN

FOLLOWER - cam

1шт.

21

A61683

BUTTON

KNOB - valve handle

1шт.
