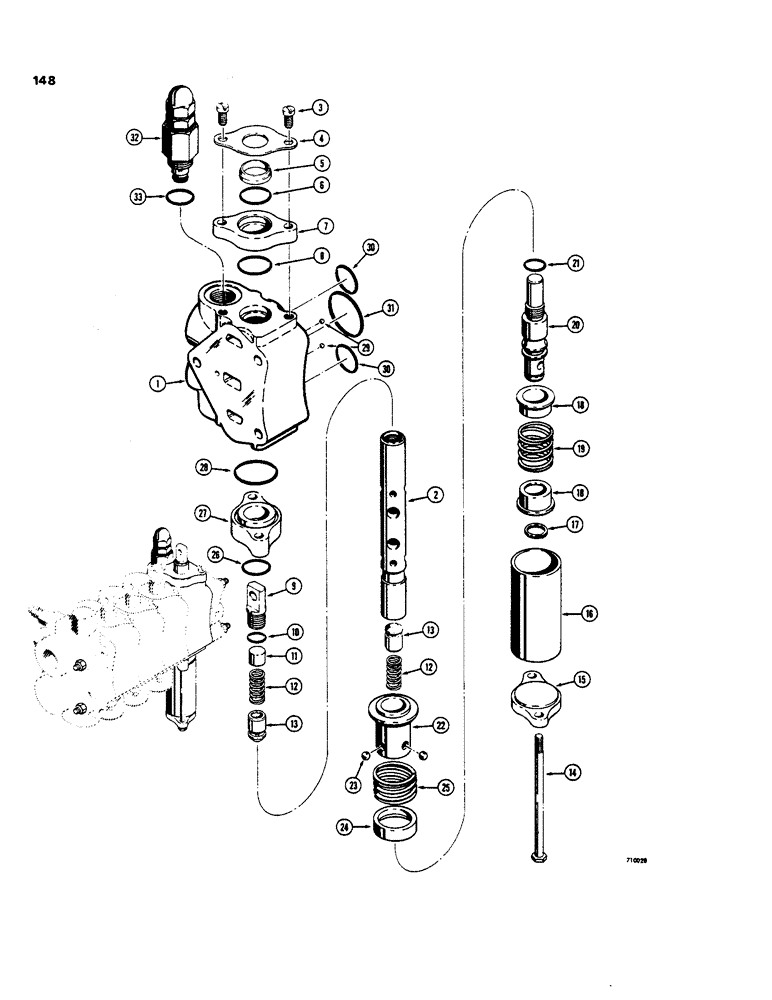

Запчасти Case 35 (148) - 3-POINT HITCH, D52970 CNTRL VALVE - 4 SPOOL, D53595 LIFT SPOOL STD HITCH MDLS ONLY

D53595

HYD VALVE SECTION

SECTION- lift spool, control valve, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - lift section

1шт.

3

71-416

SCREW - machine, fillister head, 1/4" - 20 NC x 1"

2шт.

4

D53612

PLATE

- seal retainer

1шт.

5

D53610

WIPER SEAL

WIPER - lift spool

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

6

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

7

D53651

SPACER

RETAINER - spool seal

1шт.

8

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- seal retainer to housing

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

9

D53616

EYE - spool end

1шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, eye to spool

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

11

D53652

SPACER - poppet spring

1шт.

12

D53601

SPRING

- poppet

2шт.

Components of: D59667 Spool Repair Kit.

1шт.

13

D53615

VALVE POPPET

POPPET - relief, spool

2шт.

14

13-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4" -20 NC x 4-1/2"

2шт.

15

D53659

CAP

- detent housing

1шт.

16

D53658

HOUSING - detent

1шт.

17

D53608

SNAP RING,#62, .583", Ext, Spiral

RING - snap, spring retainer

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

18

D53656

RETAINER - spool spring

2шт.

19

D53603

SPRING

- spool centering

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

20

D53657

STUD - detent

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, detent stud

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

22

D53655

SLEEVE - detent

1шт.

23

211-7

BALL,1/4" Dia

- steel 1/4" Dia

4шт.

Components of: D59667 Spool Repair Kit.

1шт.

24

D53654

RETAINER - ball

1шт.

25

D53602

SPRING

- detent

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

26

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

27

D53653

RETAINER - spool seal

1шт.

28

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- retainer to housing

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

29

211-105

BALL,5/32" Dia

- steel, meter 5/32" Dia

2шт.

Components of: D59667 Spool Repair Kit.

1шт.

30

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- 7/8' ID x 1" OD

2шт.

Components of: D59667 Spool Repair Kit.

1шт.

31

T39567

O-RING,1.489" ID x 1.629" OD x 0.07"

- 1-1/2" ID x 1-5/8" Od

1шт.

Components of: D59667 Spool Repair Kit.

1шт.

32

D53597

VALVE

ASSEMBLY - secondary relief, Includes: Ref. 33

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
