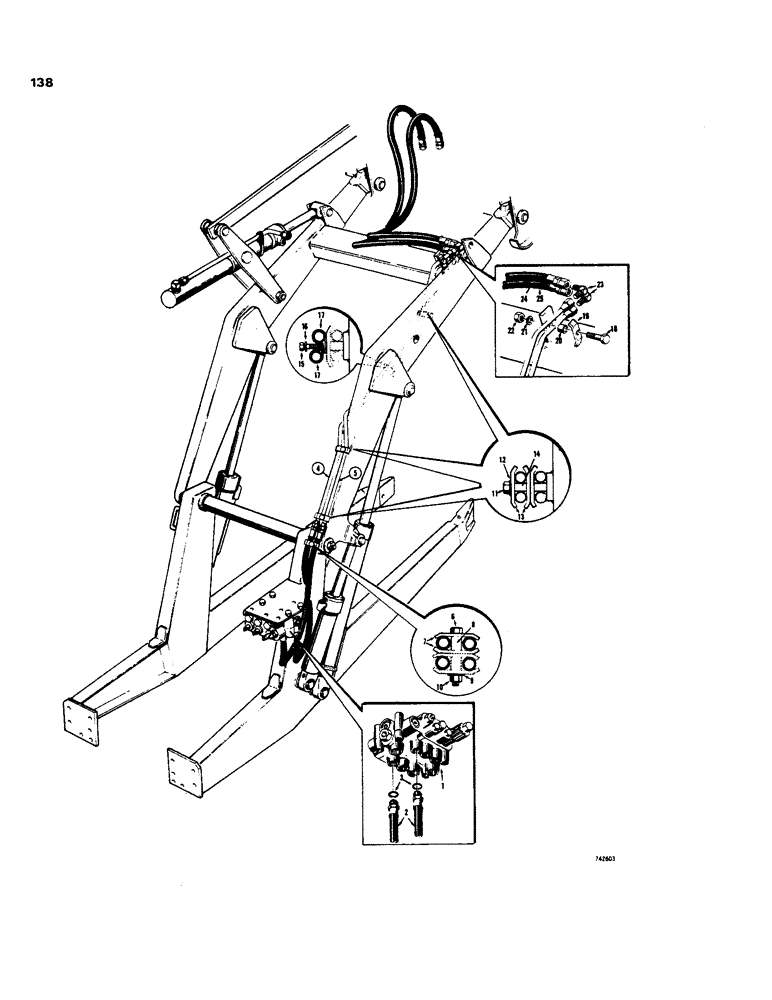

Запчасти Case 35 (138) - OPTIONAL LOADER HYDS, USED ON MDLS W/ BACKHOE SN 5219901 THRU 5222134

1

D52042

LOCK VALVE

VALVE - loader control, 3 spool, parts list Figure 172

1шт.

2

D34399

HOSE

- valve to clam or grapple cylinder, at valve, 38-1/2" (978 mm) long, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D34405

TUBE

- valve to clam or grapple, closed end

1шт.

5

D34403

TUBE

- valve to clam or grapple, rod end

1шт.

6

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16" - 18 NC x 3-1/4', if used

1шт.

7

D33316

CLAMP

- hose

2шт.

8

D33554

BUSHING

SPACER - clamp

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

1шт.

11

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

3шт.

12

92-5

LOCK WASHER,5/16"

3шт.

13

R17319

CLAMP

- tube, if used

6шт.

14

D33551

BUSHING

SPACER - clamp. if used

3шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4"

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

49854

CLAMP

- tube

2шт.

18

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

19

R17319

CLAMP

- tube, if used

1шт.

20

D33551

BUSHING

SPACER - clamp, if used

1шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot, 5/16"

1шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

1шт.

23

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

male 90º, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

24

D34401

HOSE ASSY.

HOSE - valve to grapple cylinder, at cylinder, used with grapple only, 60" (1524 mm) long

2шт.

25

D51691

HOSE

- valve to clam cylinder, at cylinder, used with 4-in-1 bucket only, 40" (1016 mm) long

2шт.
