Запчасти Case 35 (132) - 3-POINT HITCH, *D17196 ANTI-LEAKDOWN KIT, FOR LIFT AND PITCH CYL

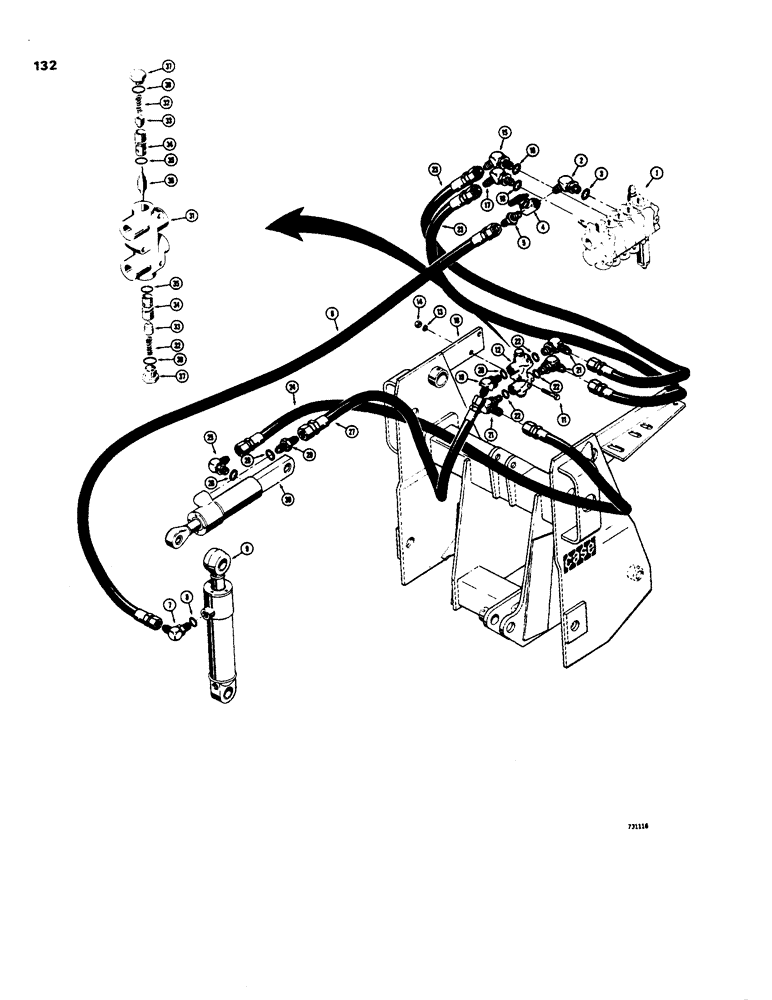

Схема запчастей Case 35 - (132) - 3-POINT HITCH, *D17196 ANTI-LEAKDOWN KIT, FOR LIFT AND PITCH CYL

Артикул

Название

Примечание

Количество

1

D52970

CONTROL VALVE

VALVE - control, 3 point hitch, parts list Figure 144

1шт.

2

D60015

FITTING

ELBOW - adjustable, 45 degree, Includes: Ref. 3

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

4

D60016

BALL

VALVE - shut-off

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

5

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - staight, male

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

6

D51686

HOSE

- shut-off valve to lift cylinder, rod end, 54 (1372 mm) long

1шт.

7

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

CYLINDER - hydraulic, lift, see Figures 322 - 338 for proper cylinder

1шт.

10

D59772

PLATE

- valve mounting, welded to hitch frame

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

11

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

12

D47256

VALVE

- check, pilot operated, parts list below

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

13

92-5

LOCK WASHER,5/16"

2шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

15

D52943

ELBOW

- 45 degree, restrictor, upper port of pitch section, Includes: Ref. 16

1шт.

17

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, lower port of pitch section, Incl. Ref 18

1шт.

19

D59773

FITTING

ELBOW - restrictor, 45 degree, at check valve, Includes: Ref. 20

1шт.

20

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, at check valve, Includes: Ref. 22 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

3шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

23

D59771

HOSE

- top and bottom ports of pitch section of control valve to top and bottom ports of check valve, 27' (686 mm) long

2шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

24

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

Rear Bottom Port of Check Valve to Closed End of Pitch Cylinder 0.38" ID x 17.00", SAE 100R1

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - o-ring

1шт.

27

D56128

HOSE

- rear top port of check valve to rod end of ptich cylinder, 25" (635 mm) long

1шт.

Components of: D17196 Anti-Leakdown Kit.

1шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 29 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

CYLINDER - hydraulic, pitch, see Figures 336 - 338 for proper cylinder

1шт.

D47256

VALVE

- check, Parker VCPDO8B11T, Includes: Ref. 31 - 38

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - valve, D47256 check

1шт.

32

D48818

SPRING

- poppet, D47256 check valve

2шт.

D48819

VALVE POPPET

POPPET AND SLEEVE ASSEMBLY, D47256 check valve, Includes: Ref. 33 - 35

2шт.

33

NSS

NOT SOLD SEPARAT

POPPET, D47256 check valve

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE, D47256 check valve

1шт.

35

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

D47256 check valve

1шт.

36

D48821

TRANSMISSION

SHUTTLE - valve, D47256 check

1шт.

37

D48822

PLUG

- special, D47256 check valve

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

D47256 check valve

2шт.

Выбрано товаров: 53
