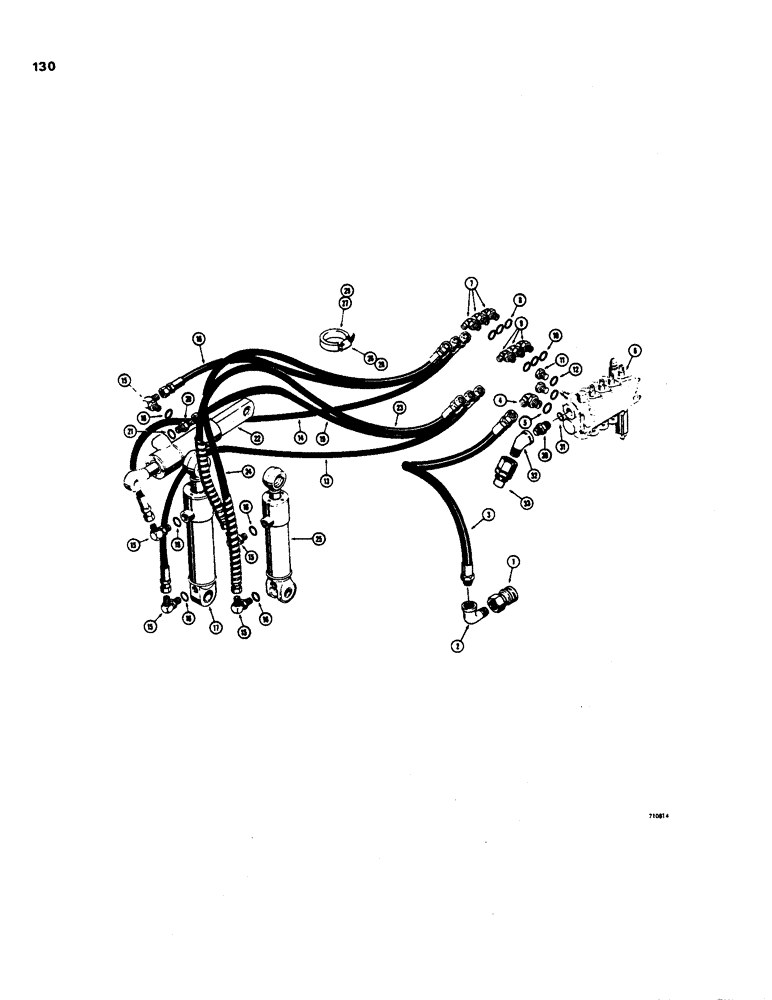

Запчасти Case 35 (130) - 3-POINT HITCH HYDRAULICS

1

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Figure 162

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

D52667

HOSE

- loader valve to 3 point hitch valve, pressure, 36" (914 mm) long

1шт.

4

218514

ELBOW - 45 degree, adjustable, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

D52970

CONTROL VALVE

VALVE - control, 3 point hitch, parts list Figure 144

1шт.

7

D52943

ELBOW

- 45 degree, restrictor, upper ports, Includes: Ref. 8

3шт.

9

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, lower ports, Incl. Ref 10

3шт.

11

214389

PLUG,3/4" - 16 ORB

Valve port, Includes Ref. 12 Hex Hd, 3/4"-16 ORB

2шт.

13

D51683

HOSE

- valve to lift cylinder, closed end, 56" (1422 mm) long

1шт.

14

D52256

HOSE

- valve to lift cylinder, rod end 45" (1143 mm) long

1шт.

15

D52256

HOSE

- 90 degree, adjustable, Includes: Ref. 16

5шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

REF

INSTRUCTION

CYLINDER - hydraulic, lift, see Figures 322 - 328 for proper cyinder

1шт.

18

D51688

HOSE

- valve to pitch cylinder, closed end, 42" (1067 mm) long

1шт.

19

D52256

HOSE

- valve to pitch cylinder, rod end, 45 " (1143 mm) long

1шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 21 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

REF

INSTRUCTION

CYLINDER - hydraulic, pitch, see Figures 336 - 338 for proper cylinder 1

1шт.

23

D51686

HOSE

- valve to tilt cylinder, rod end, 54" (1372 mm) long

1шт.

24

D51685

HOSE

- valve to tilt cylinder, closed end, 66" (1676 mm) long

1шт.

25

REF

INSTRUCTION

CYLINDER - hydraulic, tilt, see Figures 330 - 332 for proper cylinder

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

27

D95252

TUBE

GUARD - hose, used with 214-260 clamp only

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

29

D95251

TUBE

GUARD - hose, used with 214-256 clamp only

2шт.

30

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNECTOR - straight, male, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degree, if used

1шт.

33

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male, parts list Figure 162

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
