Запчасти Case 35 (128) - SIDE SHIFT BACKHOE, SWING AND LOCKING CYL HYDS

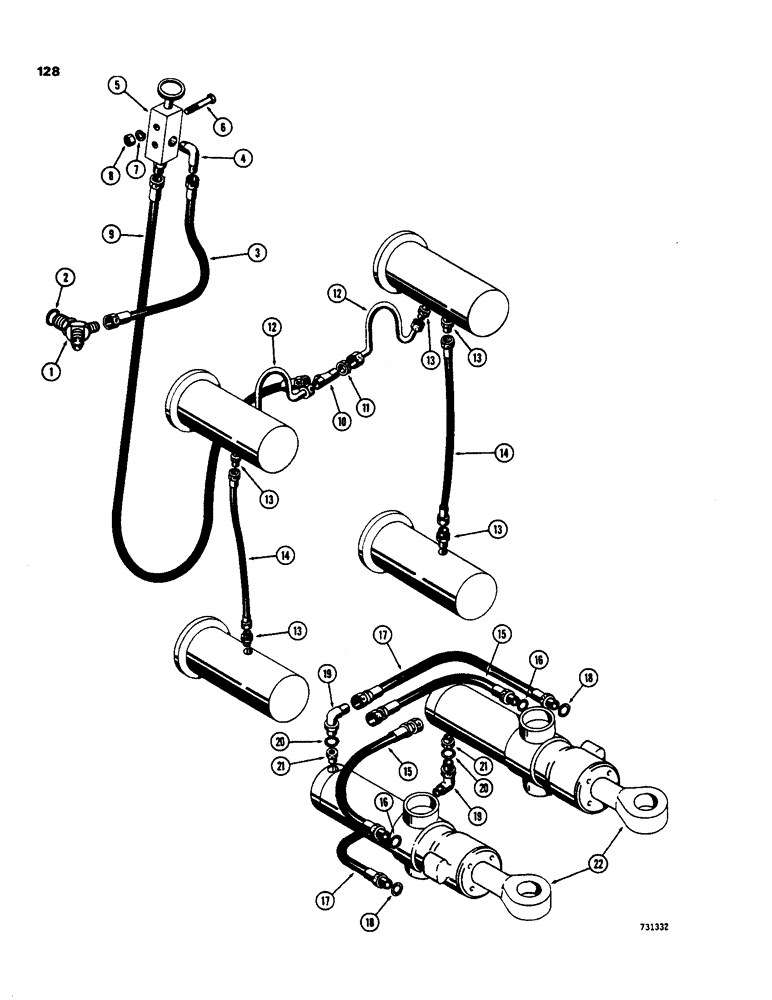

Схема запчастей Case 35 - (128) - SIDE SHIFT BACKHOE, SWING AND LOCKING CYL HYDS

Артикул

Название

Примечание

Количество

1

D58404

ELBOW UNION

ELBOW - special, 45 degree, at bucket section of backhoe valve, Includes: Ref. 2

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

D36959

HOSE

- backhoe valve to locking valve, 21-1/2" (546 mm) long

1шт.

4

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree, male

1шт.

5

D71902

VALVE

- locking cylinder, parts list Figure 158

1шт.

6

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

E18892

HOSE

- locking valve to tee, 85" (2159 mm) long

1шт.

10

218-1241

TEE,1/2"-20, 37 Degree, Blkhd

-special, hose to locking cylinder

1шт.

11

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2" - 20 NF

1шт.

12

E10870

TUBE - tee to upper locking cylinder

2шт.

13

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

6шт.

14

D36959

HOSE

- upper to lower locking cylinders, 21-1/2" (546 mm) long

2шт.

15

E18204

HOSE

- valve to upper port of swing cylinder, rod end 20" (508 mm) long, Includes: Ref. 16

2шт.

17

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, closed end of swing cylinder to lower port at rod end, 23-1/2" (587 mm) long, Includes: Ref. 18

2шт.

19

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, swing cyl hyds, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

swing cyl hyds

1шт.

21

D76325

RESTRICTOR - flow, swing cylinder

2шт.

22

G33918

CYLINDER

- hydraulic, swing, see Figures 272 - 288 for proper cylinder

2шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

swing cyl hyds

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

swing cyl hyds

1шт.

Выбрано товаров: 22
