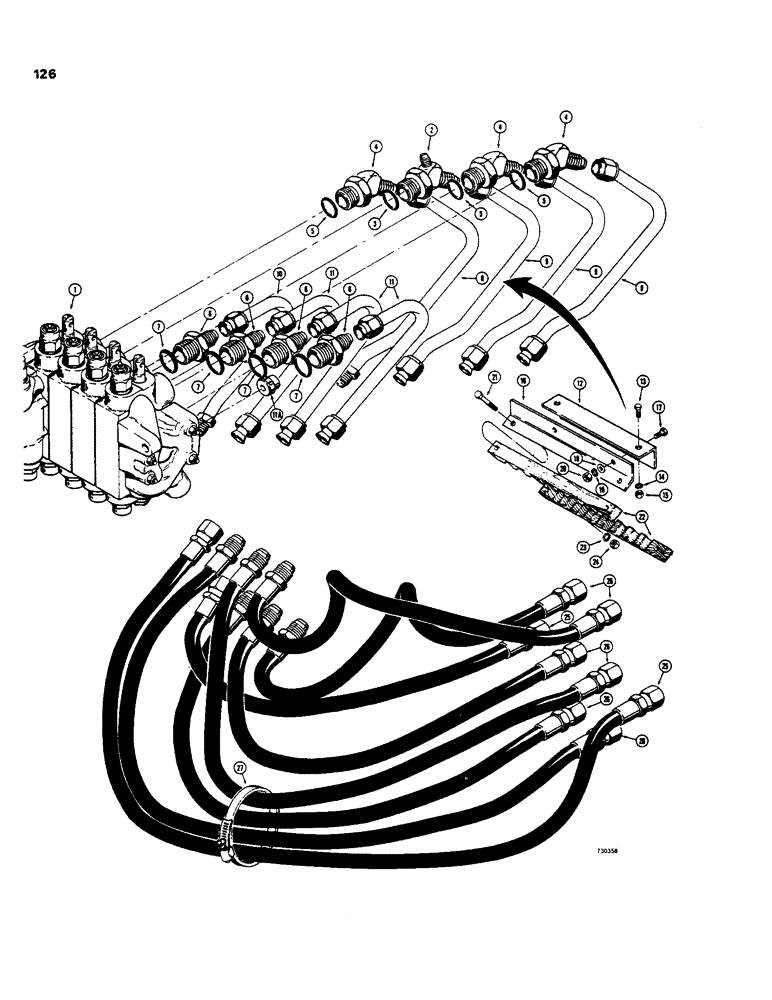

Запчасти Case 35 (126) - SIDE SHIFT BACKHOE INTERMEDIATE HYDS, CNTRL VALVE TO BOOM, DIPPER & BUCKET CYL

1

REF

INSTRUCTION

VALVE - backhoe control, 4 spool, see Figure 198 for proper valve

1шт.

2

D58404

ELBOW UNION

ELBOW - special, 45 degree, upper port of bucket section, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- adjustable, 45 degree, upper port of boom, dipper and swing sections, Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, lower ports of backhoe control valve

4шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - O-ring

1шт.

8

D58400

TUBE

- upper port of swing section

1шт.

9

D58396

TUBE

- upper port of boom, dipper and bucket sections

3шт.

10

D58402

TUBE - lower port of swing section

1шт.

11

D58398

TUBE

- lower port of dipper and bucket sections

3шт.

11a

D54518

FITTING

RESTRICTOR - boom section, lower port

1шт.

12

E18885

SUPPORT - clamp bracket

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

D58410

BRACKET - clamp mounting

1шт.

17

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 5/16"

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

21

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

22

D58411

CLAMP

- hose

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex. 3/8" - 16 NC

2шт.

25

E18943

HOSE

- valve to swing cylinders

2шт.

26

E18893

HOSE

- valve to boom, dipper and bucket cyinders, 72-1/2" (1842 mm) long

6шт.

27

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose, worm screw type

2шт.
