Запчасти Case 35 (118) - HYD EXTENDABLE DIPPER, 4 EXTENSION HYDS, EXTENSION HYDS & CYLS, CASE & COMMERCIAL- CESSNA VALVES

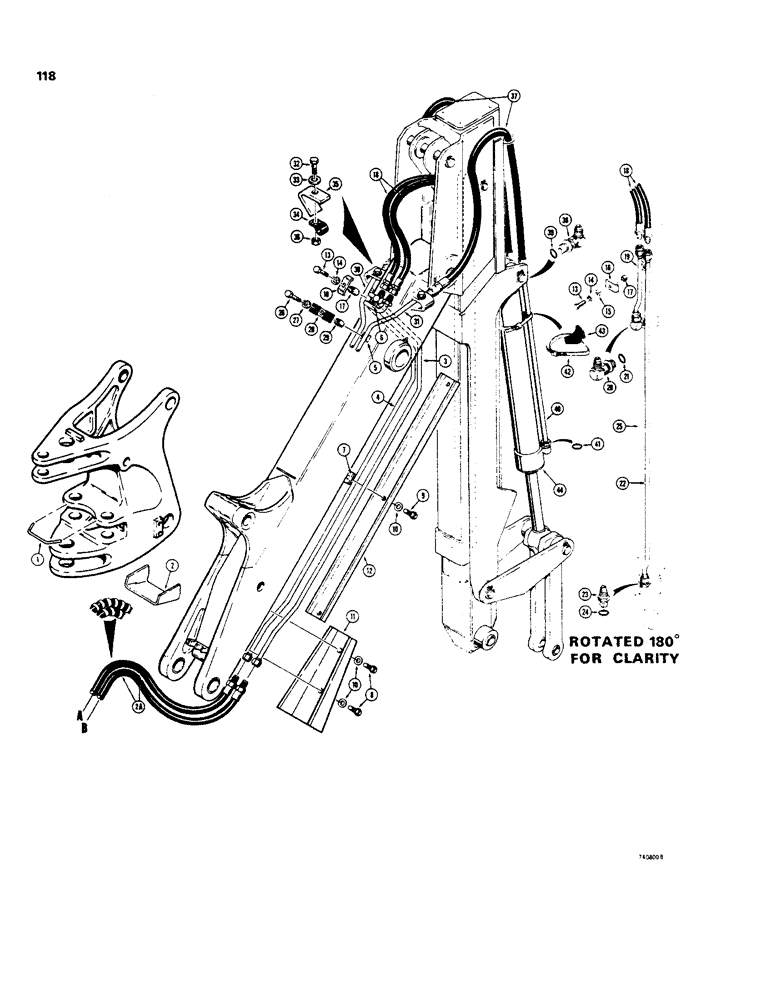

Схема запчастей Case 35 - (118) - HYD EXTENDABLE DIPPER, 4 EXTENSION HYDS, EXTENSION HYDS & CYLS, CASE & COMMERCIAL- CESSNA VALVES

Артикул

Название

Примечание

Количество

1

D54702

GUIDE

- hose retaining

1шт.

2

D56194

GUARD

- hose

1шт.

2a

D56166

HOSE

- valve to dipper extension cylinder, 13" (1751 mm) long

2шт.

3

D55464

TUBE

- dipper extension, intermediate, RH

1шт.

4

D55466

TUBE

- dipper extension, intermediate, LH

1шт.

5

D50004

BLOCK

- tapped, tube clamp bucket cylinder hydraulics

1шт.

6

D52569

BLOCK

- tapped, tube clamp with extension cylinder hydraulics

1шт.

7

D52843

BLOCK

- tapped, tube guard, under side of boom

5шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

3шт.

10

95-8

WASHER,1/2"

- plain 1/2"

5шт.

11

D54420

GUARD

- tube, lower

1шт.

12

D54137

GUARD

- tube, upper

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

16

D42504

CLAMP

- tube

2шт.

17

D33552

BUSHING

SPACER - tube clamp

2шт.

18

D52565

HOSE

- dippper extension valve to extension cylinde, 42" (1067 mm) long

2шт.

19

D52572

TUBE

- extension cylinder, closed end

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

D52574

TUBE

- extension cylinder, rod end, Includes: Ref. 23

1шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

DEF

CYLINDER - hydraulic, dipper extension, Figures 314 - 320 for proper cylinder

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

D40236

CLAMP

- tube

1шт.

29

D36040

BUSHING

SPACER - tube

1шт.

30

D52818

TUBE

- control valve to bucket cylinder, intermediate, LH

1шт.

31

D52820

TUBE ASSY.

TUBE - control valve to bucket cylinder, intermediate, RH

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

34

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

2шт.

35

D45559

BRACKET

- tube clamp mounting

2шт.

36

131-5

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

2шт.

37

D52566

HOSE

- tube to bucket cylinder, 70" (1778 mm) long

2шт.

38

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- adjustable. 90 degree, Includes: Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

D55050

HOSE

TUBE - bucket cylinder, rod end, Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

42

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

1шт.

43

D38648

BLOCK

SPACER - clamp

1шт.

44

REF

INSTRUCTION

CYLINDER - "Extendahoe", not shown, see Figures 479 - 481

2шт.
