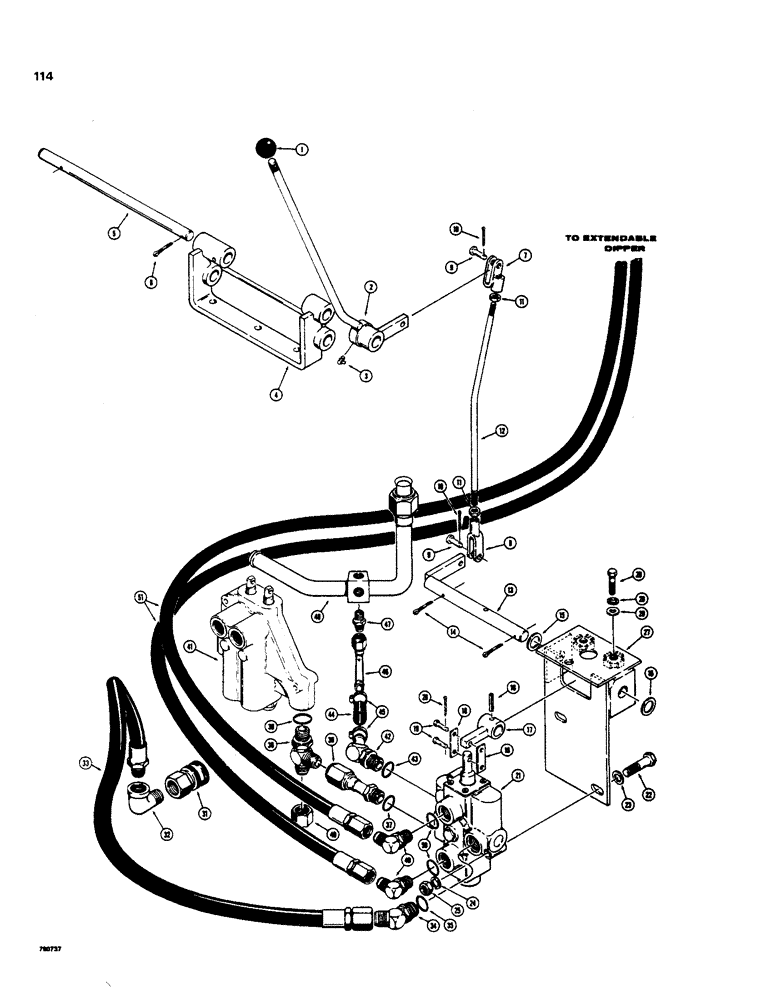

Запчасти Case 35 (114) - HYD EXTENDABLE DIPPER, 4 EXTENSION HYDS, VALVES AND CONTROLS, CASE AND COMMERCIAL-CESSNA VALVES

1

D59912

KNOB

- control lever

1шт.

2

D56178

HANDLE

LEVER - control, extendable dipper

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

4

D50561

BRACKET - control lever mounting

1шт.

5

D56227

SHAFT

- lever mounting, upper

1шт.

6

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

7

L11182

YOKE,3/8" - 24

- stabilizer control, upper

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - stabilizer control lever, lower

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

2шт.

12

D56182

ROD

- control, extendable dipper

1шт.

13

D56176

SHAFT

- control lever

1шт.

14

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

15

195-45

WASHER,3/4"

2шт.

16

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

17

D56174

DRAG LINK

LINK - dipper extension valve

1шт.

18

D56173

DRAG LINK

LINK - connecting, valve

2шт.

19

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN -, Serial Range: link-valve

2шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

21

D65588

VALVE

- control, extendable dipper, parts list Figure 214

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.

23

195-25

WASHER,3/8"

- plain, 3/8"

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - NC

2шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

27

D56183

PLATE ASSY.

BRACKET - valve mounting

1шт.

28

195-25

WASHER,3/8"

- plain, 3/8

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

RESERVED

1шт.

31

D52800

COUPLING, QUICK, FEM

COUPLING - disconnect, female half parts list Figure 162

1шт.

32

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

33

D56094

HOSE

- pressure line to stabilizer valve, 39" (991 mm) long

1шт.

34

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 35 45º, 1 5/16"-12 x 1 1/16"-12, 37º

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

D56171

TUBE

- beyond port of extendable dipper valve to inlet of stabilizer valve, Includes: Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

38

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, Includes: Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

218-335

CAP,37 Degree, 1 1/16"-12

Adjustable elbow 37º, 1 1/16"-12

1шт.

41

REF

INSTRUCTION

VALVE - stabilizer, 2 spool, see Figure 212 for proper valve

1шт.

42

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

ELBOW - hose stem, 45 degree, Includes: Ref. 43

1шт.

43

2185007

O-RING

1шт.

44

D56321

HOSE ASSY.

HOSE - return, extendable dipper valve to backhoe return tube

1шт.

45

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

46

D56249

TUBE

- return, valve to backhoe return tube

1шт.

47

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

48

D56157

TUBE - return, backhoe control valve

1шт.

49

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Incl. Ref. 50

2шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

51

D56166

HOSE

- valve to dipper extension cylinder, 73" (1751 mm) long

2шт.
