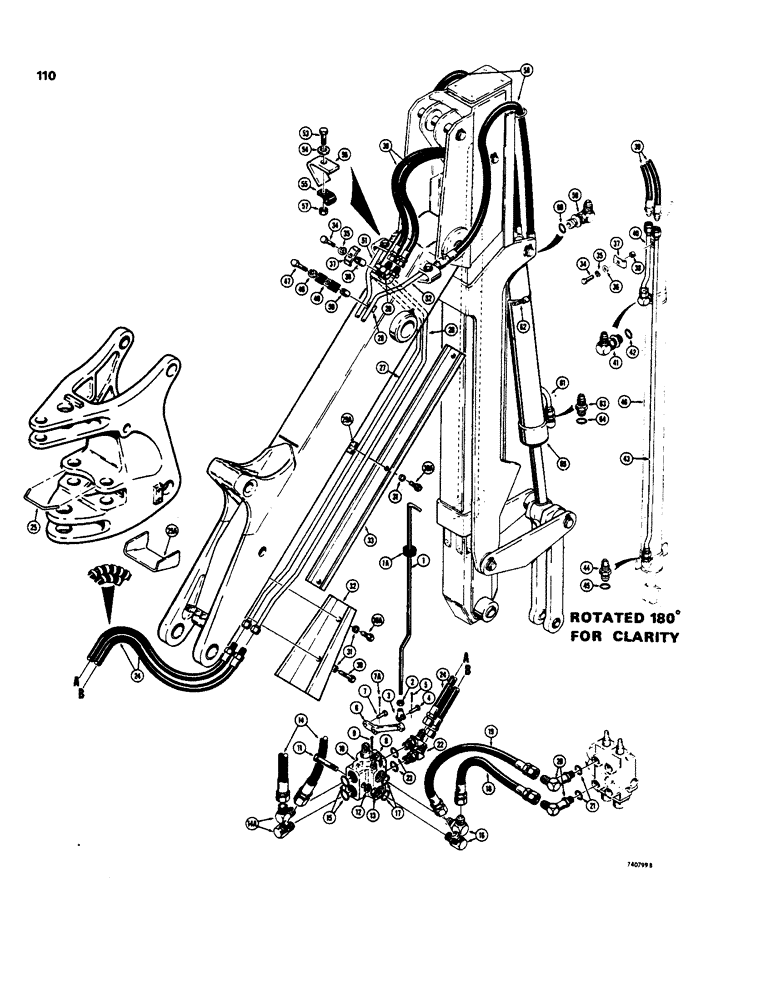

Запчасти Case 35 (110) - HYDRUALIC EXTENDABLE DIPPER, 4 EXTENSION HYDRAULICS, COMMERCIAL-CROSS VALVES

1

D54321

ROD

CONTROL ROD - diversion valve

1шт.

1a

A23870

GROMMET

- control rod

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, hex, 3/8" -24 NF

1шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis

1шт.

4

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

5

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

6

D47938

LEVER

-diversion vavle

1шт.

7

D23693

AXLE PIN

PIN - clevis

1шт.

7a

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

8

D23696

DRAG LINK

LINK - diversion valve

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

10

D45399

LOCK VALVE

VALVE - diversion, parts list Figure 156 includes Refs. 7 - 9

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8" - 16 NC x 3-1/4"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

14

D50751

HOSE

- diversion valve to LH stabilizer cylinder, 33" (838 mm) long, before backhoe, Serial Range: -5219901

2шт.

14

D55351

HOSE

- diversion valve to LH stabilizer cylinder, 33" (838 mm) long, backhoe, Start Serial: 5219901

2шт.

14a

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, used with D50751 hose, Includes: Ref. 15

2шт.

14a

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, used wiht D55351 hose, Includes: Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Used with 218-5119 and 218-5120 elbows

1шт.

16

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

D54320

HOSE

- valve, lower port, 13" (305 mm) long

1шт.

19

NLS

NO LONGER SERVICED

HOSE - valve, upper port, 14" (356 mm) long

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref 23 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

D54336

HOSE

- to extension cylinder, 62" (1575 mm) long

2шт.

25

D54702

GUIDE

- hose retaining

1шт.

25a

D54422

GUARD - hose, when stock is exhausted, order D56194 guard for service

1шт.

25a

56194

GUARD - hose

1шт.

26

D52826

TUBE

- dipper extension, intermediate, RH

1шт.

REF: 26 AND 27 TUBES SHOULD BE UP THE BOOM OPPOSITE SIDE FROM SIDE ILLUSTRATED.

1шт.

27

D52828

TUBE

- dipper extension, intermediate, LH

1шт.

28

D50004

BLOCK

- tapped, tube clamp bucket cylinder hydrualics

1шт.

29

D50004

BLOCK

- tapped, tube clamp extension cylinder hydraulics

1шт.

29a

D52843

BLOCK

- tapped, tube guard, under side of boom

5шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

30a

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

4шт.

31

92-8

LOCK WASHER,1/2"

5шт.

32

D54420

GUARD

- tube, lower

1шт.

33

D54137

GUARD

- tube, upper

1шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

37

D42504

CLAMP

- tube

2шт.

38

D33552

BUSHING

SPACER - tube clamp

2шт.

39

D52565

HOSE

- diversion valve to extension cylinder, 42" (1067 mm) long

2шт.

40

D52572

TUBE

- extension cylinder, closed end

1шт.

41

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

43

D52574

TUBE

- extension cylinder, rod end

1шт.

44

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref. 45

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

46

REF

INSTRUCTION

CYLINDER - hydraulic, dipper extension, see Figures 314 - 320 for proper cylinder

1шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex 3/8" - 16 NC x 1-1/2

1шт.

48

92-6

LOCK WASHER,3/8"

1шт.

49

D40236

CLAMP

- tube

1шт.

50

D36040

BUSHING

SPACER - tube

1шт.

51

D52818

TUBE

- control valve to bucket cylinder, intermediate, LH

1шт.

52

D52820

TUBE ASSY.

TUBE - control valve to bucket cylinder, intermediate, RH

1шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

54

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

55

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

56

D45559

BRACKET

- tube clamp mounting

2шт.

57

131-5

LOCK NUT,3/8"-16, GB

NUT - hex, lock 3/8" - 16NC

2шт.

58

D52566

HOSE

- tube to bucket cylinder, 70" (1778 mm) long

2шт.

59

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 60

1шт.

60

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

61

D52877

TUBE

- bucket cylinder, rod end

1шт.

62

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

1шт.

63

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 64

1шт.

64

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

65

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, see Figures 306 - 312 for proper cylinder

1шт.

66

REF

INSTRUCTION

DECAL - "Extendahoe", not shown, see Figures 478 - 480

1шт.
