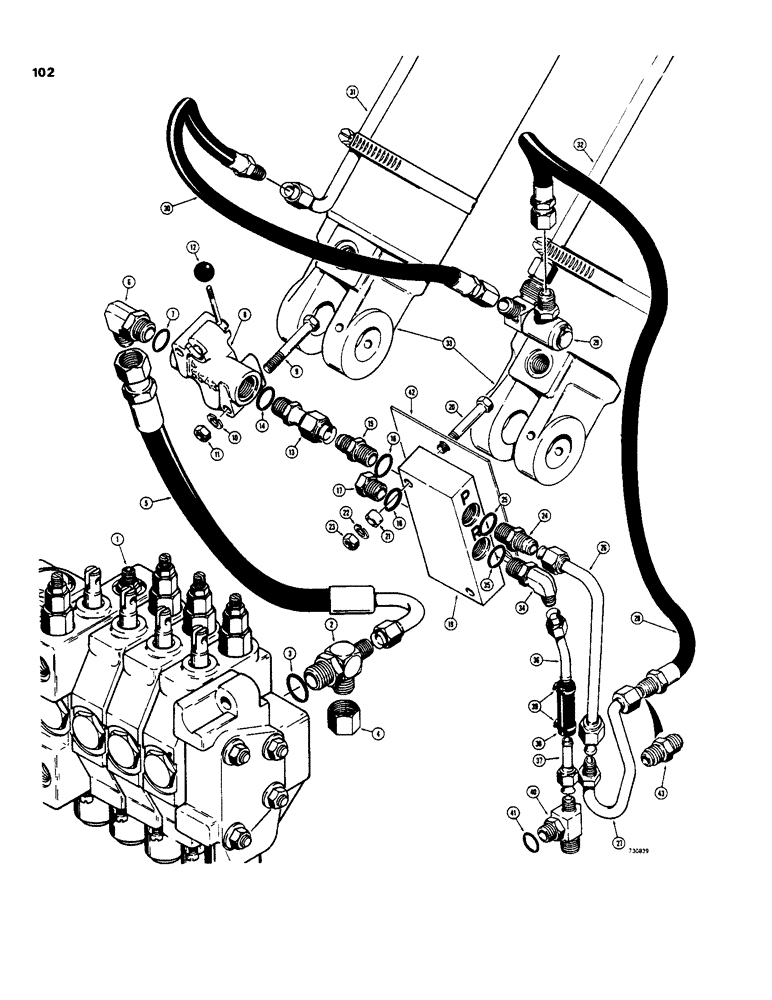

Запчасти Case 35 (102) - BOOM LOCKOUT HYDS, COMMERCIAL - CROSS VALVES, USED ON MDLS W/ BACKHOE SN 5219901 THRU 5222134

1

D50560

LOCK VALVE

VALVE - backhoe control, parts list Figure 180

1шт.

2

218-5295

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- adjustable, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

218-755

CAP,37 Degree, 3/4"-16

Steel, not used on Hydra-Guide models 37º, 3/4"-16

1шт.

5

D55537

HOSE ASSY.

HOSE - backhoe valve to lockout valve, 20-1/4" (514 mm) long

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

L51101

VALVE

- boom lockout, parts list Figure 156

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - NC

2шт.

12

A61683

BUTTON

KNOB - boom lock out valve

1шт.

13

D52687

TUBE

- lock out valve to relief valve, Includes: Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Relief valve, Includes: Ref. 18 Hex Hd, 1 1/16"-12 ORB

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

D46850

VALVE

- relief, parts list Figure 192

1шт.

20

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

2шт.

21

D52798

SPACER

- relief valve

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - NC

2шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

26

D55568

TUBE - relief valve to boom cylinders, upper

1шт.

27

D55570

TUBE

- relief valve to boom cylinders, lower

1шт.

28

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

- to boom cylinders, 38' (965 mm) long

1шт.

29

D60947

FITTING

JOINT - swivel, RH, parts list Figure 160

1шт.

30

D55563

HOSE

- crossover, boom cylinders, 21" (533 mm) long

1шт.

31

D55566

TUBE

- LH boom cylinder, rod end

1шт.

32

D55564

TUBE

- RH boom cylinder, rod end

1шт.

33

REF

INSTRUCTION

CYLINDER - hydraulic boom, see Figures 292 - 298 for cylinder

2шт.

34

D54333

ELBOW UNION

ELBOW - adjustable, 90 degree, Includes: Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

D55538

TUBE - relief valve to backhoe valve, upper

1шт.

37

D55540

TUBE -relief valve to backhoe valvem lower

1шт.

38

D56400

HOSE

Tube Connecting

1шт.

39

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

40

218-5500

FITTING,1 1/16"-12, 37 Degree x 3/4"-16 x 1 1/16"-12, O-Ring Br

TEE - adjustable, Includes: Ref. 41

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

42

D54653

PLATE - decal

1шт.

43

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - male, straight, used if this boom lock is used as a field kit on backhoe with early production boom hydraulics see D50383 boom cylinder hose, Ref. no. 27 on Figure 180

1шт.
