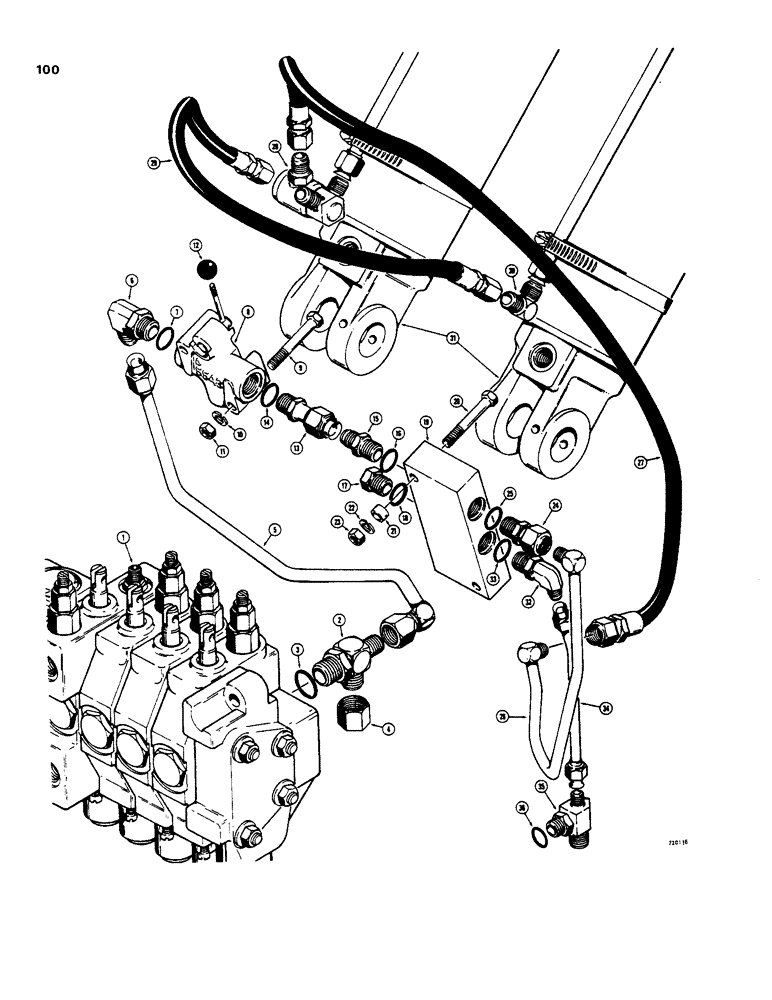

Запчасти Case 35 (100) - BOOM LOCKOUT HYDS, COMMMERCIAL - CROSS VALVES, USED ON MDLS W/ BACKHOE SN BEF 5219901

1

D50560

LOCK VALVE

VALVE - backhoe control, parts list Figure 180

1шт.

2

218-5295

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- adjustable, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

218-755

CAP,37 Degree, 3/4"-16

Steel, not used on Hydra-guide models 37º, 3/4"-16

1шт.

5

D54195

TUBE

- backhoe valve to lock out valve

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

L51101

VALVE

- boom lockout, parts list Figure 156

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8" - 16 NC x 3-1/4"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

A61683

BUTTON

KNOB - boom lockout valve

1шт.

13

D52687

TUBE

- lockout valve to relief valve, Includes: Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Relief valve, Includes: Ref. 18 Hex Hd, 1 1/16"-12 ORB

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

D46850

VALVE

- relief, parts list Figure 192

1шт.

20

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8" - 16 NC x 3-1/4"

2шт.

21

13-52798

SPACER - relief valve

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

24

218-5250

HYD CONNECTOR,1-1/16" - 12 ORB x 3/4" NPT

CONNECTOR - swivel type, Includes: Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

26

D54971

TUBE

- relief valve to boom cylinders

1шт.

27

D50383

HOSE

- to boom cylinders, 38" (965 mm) long

1шт.

28

D60947

FITTING

JOINT - swivel, parts list Figure 161

1шт.

29

CASD50053

HOSE - crossover, boom cylinders, 23" (584 mm) long

1шт.

30

218476

ELBOW - 90 degree

1шт.

31

REF

INSTRUCTION

CYLINDER - boom, hydraulic, see Figures 292 - 298 for cylinders

2шт.

32

D54333

ELBOW UNION

ELBOW - 90 degree, adjustable, Includes: Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

D54159

TUBE

- relief valve to backhoe valve

1шт.

35

218-5500

FITTING,1 1/16"-12, 37 Degree x 3/4"-16 x 1 1/16"-12, O-Ring Br

TEE - adjustable, Includes: Ref. 36

1шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
