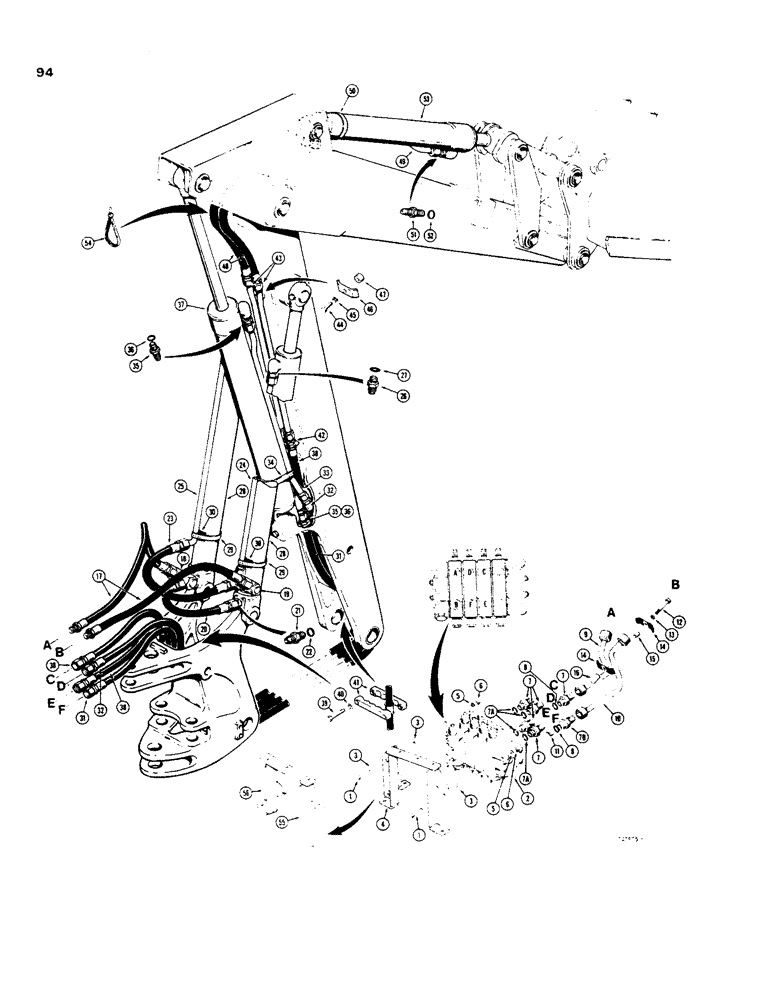

Запчасти Case 35 (094) - BOOM, DIPPER AND BUCKET CYLINDER HYDRAULICS, CASE - CESSNA VALVES

1

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

2

REF

INSTRUCTION

VALVE - backhoe control, see Figure 198 for proper valve

1шт.

3

95-8

WASHER,1/2"

- plain 1/2"

3шт.

4

D56214

BRACKET

- mounting, valve

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

7

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, bucket, dipper, and boom ports

5шт.

7a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

CONNECTOR - male, straight, bucket, dipper, and boom ports

5шт.

7b

L55143

FITTING

ADAPTER - special, boom section "B" port, Includes: Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

D55979

TUBE

-upper valve port to boom cylinder

1шт.

10

D55977

TUBE

- lower valve port to boom cylinder

1шт.

11

D56252

FITTING

RESTRICTOR - check, lower boom port

1шт.

12

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8" - NC x3-1/2"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

D40236

CLAMP

- tube

2шт.

15

D34244

SPACER

- clamp

1шт.

16

D95022

SPACER

-, Serial Range: clamp-bracket

1шт.

17

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

- control valve to boom cylinder, at valve, 38"

2шт.

18

REF

INSTRUCTION

JOINT - swivel, LH boom cylinder, see Figure 160 for joint

1шт.

19

REF

INSTRUCTION

JOINT - swivel, RH boom cylinder, see Figure 160 for joint

1шт.

20

CASD50053

HOSE - crossover, at closed end of boom cylinder, 23"

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

D55563

HOSE

- crossover, to rod end of boom cylinder, 21" (533 mm) long

1шт.

24

D55564

TUBE

- RH boom cylinder, rod end

1шт.

25

D55566

TUBE

- LH boom cylinder, rod end

1шт.

26

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 27

2шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

REF

INSTRUCTION

CYLINDER - hydraulic, boom, see Figures 292 - 298 for proper cylinder

2шт.

29

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

30

D386468

SPACER - tube

2шт.

31

D55988

HOSE

- valve to closed end of dipper cylinder, 83" (2108 mm) long

1шт.

32

D55987

HOSE

- control valve to rod end of dipper cylinder, 90" (2286 mm) long

1шт.

33

D50379

TUBE

- control valve to rod end of dipper of cylinder, at cylinder

1шт.

34

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

1шт.

35

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, staight, Includes: Ref. 36

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

REF

INSTRUCTION

CYLINDER - hydraulic, dipper, parts list Figure 300 - 304

1шт.

38

D55989

HOSE,15.88mm ID x 2413mm L, SAE 100R2

- control valve to bucket cylinder, at valve, 95" (2413 mm) long

2шт.

39

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

4шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

41

D50388

CLAMP

- hose

2шт.

42

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, 3/4" tube

2шт.

43

D50386

TUBE

- control valve to bucket cylinder, intermediate

2шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

D42504

CLAMP

- tube

1шт.

47

D36040

BUSHING

SPACER - tube clamp

1шт.

48

D50372

HOSE

- control valve to bucket cylinder, at cylinder, 34" (864 mm) long

2шт.

49

D58609

TUBE

- control valve to rod end of bucket cylinder

1шт.

50

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube

1шт.

51

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Includes: Ref. 52

2шт.

52

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

53

REF

INSTRUCTION

CYLINDER - hydraulics, bucket, see Figures 306 - 312 for proper cylinder

1шт.

54

L18331

CABLE TIE,375.9mm L, Nylon

TIE - hose strap

1шт.

55

D63188

BRACKET

MOUNTING - backhoe valve, RH, if used

1шт.

56

D63187

BRACKET

MOUNTING - backhoe valve, LH, if used

1шт.
