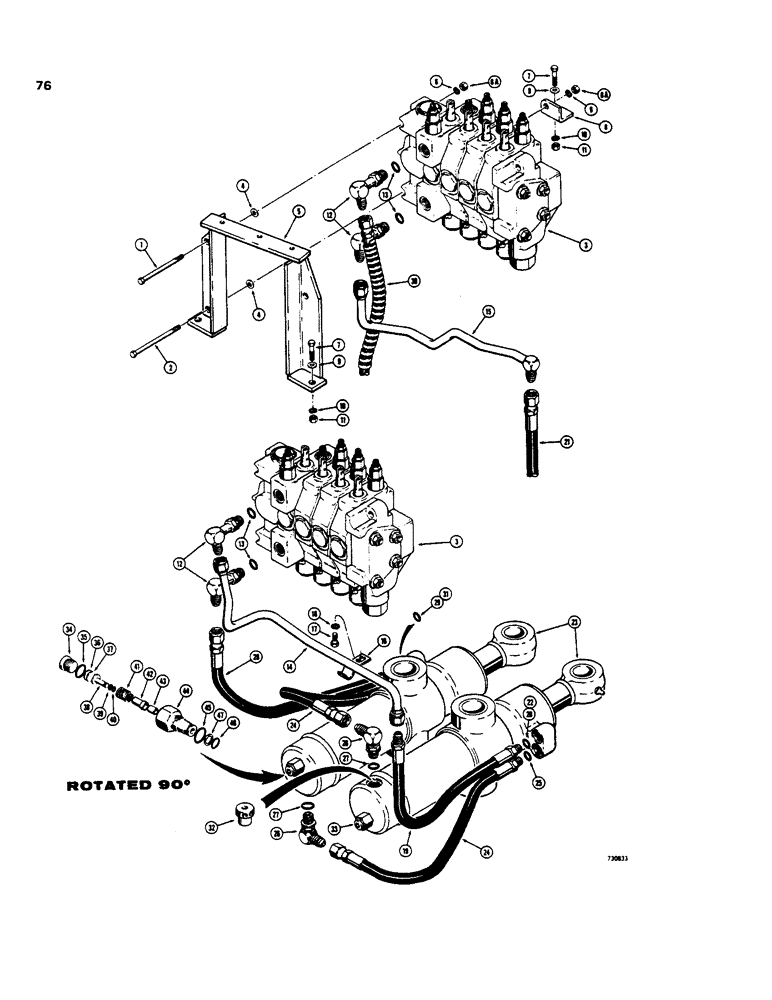

Запчасти Case 35 (076) - SWING CYLINDER HYDS, COMMERCIAL - CROSS VALVES, USED ON MDLS W/ BACKHOE SN BEF 5219901

1

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Upper valve mounting Hex, 1/2"-13 x 4 1/2", G5

2шт.

2

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

Lower valve mounting Hex, 1/2"-13 x 5", G5

1шт.

3

D50560

LOCK VALVE

VALVE - backhoe control, parts list Figure 180

1шт.

4

195-33

WASHER,1/2"

- flat, ID 1/2"

3шт.

5

D50567

BRACKET

- mounting, valve

1шт.

6

92-8

LOCK WASHER,1/2"

3шт.

6a

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex, 1/2" -13 NC 1-1/4"

3шт.

8

D50579

BRACKET - valve mounting

1шт.

9

195-33

WASHER,1/2"

- plain, 1/2"

3шт.

10

92-8

LOCK WASHER,1/2"

3шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2 " -13 NC

3шт.

12

D20071

ELBOW UNION

ELBOW - adjustable, 90 degree, Includes: Ref. 13

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

D50552

TUBE

- valve to RH swing cylinder, individual lever control models

1шт.

15

D54233

TUBE - valve to RH swing cylinder, dual lever control models

1шт.

16

D50551

CLIP

CLAMP - tube

1шт.

17

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

1шт.

18

92-8

LOCK WASHER,1/2"

1шт.

19

D50731

HOSE

- control valve to RH swing cylinder upper port, rod end, 20-1/2" (521 mm) long, used with individual lever control, Includes: Ref. 20

1шт.

21

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- control valve to RH swing cylinder, upper port, rod end, 23-1/2" (597 mm) long, used on models wiht dual lever control, Includes: Ref. 22

1шт.

23

G32096

CYLINDER ASSY.

CYLINDER - hydraulic, swing, parts list Figure 272 - 288

2шт.

24

G32096

CYLINDER ASSY.

HOSE - crossover, swing cylinders, 23-1/2" (597 mm) long, Includes: Ref. 25

2шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

D50590

HOSE

- control valve to LH swing cylinder, upper port, rod end, 25-1/2" (638 mm) long, used on models with individual lever control, Includes: Ref. 29

1шт.

30

D54261

HOSE - control valve to LH swing cylinder, upper port, rod end, 25-1/2" (638 mm) long, used on models with individual lever control 31" (787 mm) long, used on models with dual lever control, Includes: Ref. 31

1шт.

32

D76235

VALVE

RESTRICTOR - flow control, models without extendable dipper

2шт.

32

D45555

FITTING

RESTRICTOR - flow control, models with extendable dipper

2шт.

33

D47557

VALVE

CARTRIDGE - relief, Includes: Ref. 34 - 47

2шт.

34

D40354

PLUG

- relief valve, Includes: Ref. 35

1шт.

36

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

37

16917

SHIM

- spring guide, 010"

1шт.

38

D37150

GUIDE

- spring

1шт.

39

D37150

GUIDE

RING - backup, spring guide

1шт.

40

A51274

O-RING,0.145" ID x 0.285" OD

- spring guide

1шт.

41

D37148

SPRING

- plunger

1шт.

42

D37151

PLUNGER

- relief valve

1шт.

43

D37075

SEAT

- plunger

1шт.

44

D47667

CAP

BODY - relief valve

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- valve body to cylinder

1шт.

46

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- valve body

1шт.

47

D37071

RING

- backup, valve body seal

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
