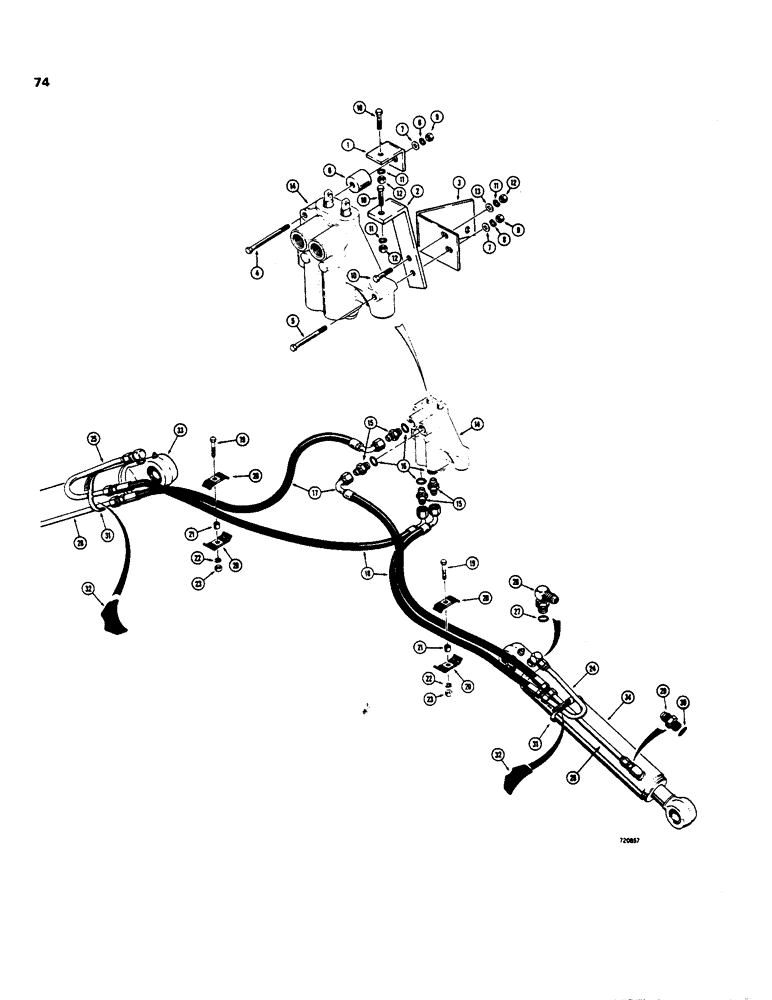

Запчасти Case 35 (074) - STABILIZER CYLINDER HYDS, CASE & COMMERCIAL - CESSNA VALVES USED ON MDLS W/ BACKHOE SN 5222135 & AFT

1

D56223

BRACKET

- valve mounting, upper, LH

1шт.

2

D56222

BRACKET

- valve mounting, upper, RH

1шт.

3

D56224

BRACKET

- valve mounting , lower

1шт.

4

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2", Lower

1шт.

5

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex, 5/16" - 18 NC x 3", lower mount

1шт.

6

32691

SPACER

- upper, Serial Range: bracket-valve

1шт.

7

195-21

WASHER,5/16"

- plain, 5/16"

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

13

95-6

WASHER,3/8"

- plain, 3/8"

1шт.

14

REF

INSTRUCTION

VALVE - stabilizer control, 2 spool, see Figure 212 for proper valve

1шт.

15

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 16

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

D56042

HOSE ASSY.

HOSE - valve to stabilizer cylinder, rod end, 39" (991 mm) long

2шт.

18

D56043

HOSE,9.53mm ID x 863.6mm L, SAE 100R2

- valve to stabilizer cylinder, closed end, 34" (864 mm) long

2шт.

19

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

2шт.

20

D40236

CLAMP

- stabilizer cylinder hose

4шт.

21

D34244

SPACER

-, Serial Range: hose-clamp

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

24

D55360

TUBE

- stabilizer, closed end, LH

1шт.

25

D55357

TUBE

- stabilizer, closed end, RH

1шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

D55865

TUBE

- stabilizer, rod end

2шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 30 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - tube to cylinder

2шт.

32

D38648

BLOCK

SADDLE - tube clamp

2шт.

33

REF

INSTRUCTION

CYLINDER - hydrualic, LH stabilizer, see Figure 252 - 268 for proper cylinder

1шт.

34

REF

INSTRUCTION

CYLINDER - hydrualic, RH stabilizer, see Figure 252 - 268 for proper cylinder

1шт.
