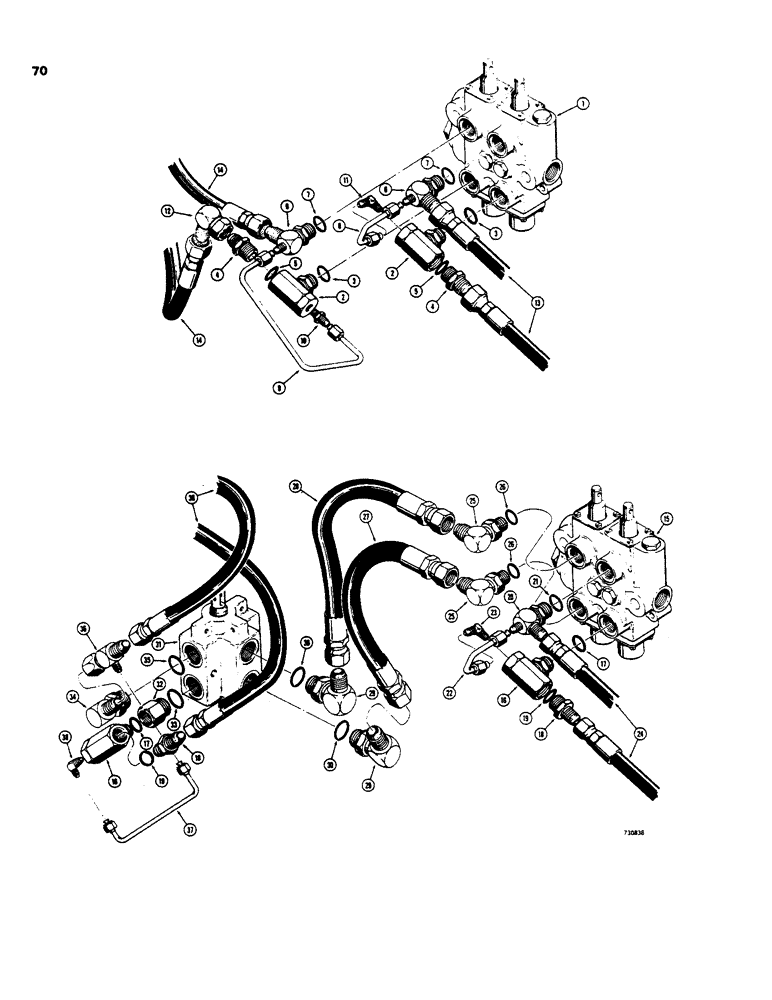

Запчасти Case 35 (070) - D17388 STABILIZER LOCK CHECK KIT, USED ON BACKHOES W/O EXTENDAHOE

1

D50420

VALVE

ASSEMBLY - 2 spool, stabilizer control, parts list Figure 210

1шт.

2

D61733

VALVE

- lock check, stabilizer, Includes: Ref. 3 - 5

2шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D59247

CONNECTOR - male, straight, used with hoses with 7/8" - 14 NF thread, Includes: Ref. 5

1шт.

4

D59246

CONNECTOR, ELEC

CONNECTOR - male, straight, used with hoses with 3/4" - 16 NF thread, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- included with both D59246 and D59247 connectors

1шт.

6

218-5285

TEE,7/16"-20, 37 Degree, 7/8"-14, O-Ring Run, 3/4"-14, 37 Degree B

- adjustable, male, used with hoses with 7/8" - 14 NF thread, Includes: Ref. 7

2шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

6

218-5299

TEE,7/16" - 20 Male JIC x 7/8" - 14 Male JIC x 3/4" - 20 Male ORB

- adjustable, male, used with hoses with 3/4" - 16 NF thread, Includes: Ref. 7

2шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- included with both 218-5285 and 218-5299 tee

1шт.

8

D56238

TUBE

- lock check to RH stabilizer cylinder

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

9

D56240

TUBE

- lock check to LH stabilizer cylinder

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

10

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male, straight

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

11

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

12

218-5323

ELBOW - swivel, 90 degree, used with hoses with 7/8" - NF threads

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- swivel, 90 degree, used with hoses with 3/4" - NF threads

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

13

D55174

HOSE ASSY.

HOSE - RH stabilizer cylinder, 7/8" - 14 NF threads

2шт.

13

D55352

HOSE

- RH stabilizer cylinder, 3/4" - 16 NF threads

2шт.

14

D50751

HOSE

- LH stabilizer cylinder, 7/8" - 14 NF threads

2шт.

14

D55351

HOSE

- LH stabilizer cylinder, 3/4" - 16 NF threads

2шт.

15

D50420

VALVE

ASSEMBLY - 2 spool, control, parts list Figure 210, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

16

D61733

VALVE

- lock check, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 17 - 19

2шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

18

D59247

CONNECTOR - male, straight, used with hoses with 7/8" - 14 NF thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 19

1шт.

18

D59246

CONNECTOR, ELEC

CONNECTOR - male, straight, used with hoses with 3/4" - 16 NF thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- included wiht both D59246 and D59247 connectors, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

20

218-5285

TEE,7/16"-20, 37 Degree, 7/8"-14, O-Ring Run, 3/4"-14, 37 Degree B

- adjustable, male, used with hoses with 7/8" - 14NF thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 21

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

20

218-5299

TEE,7/16" - 20 Male JIC x 7/8" - 14 Male JIC x 3/4" - 20 Male ORB

- adjustabel, male, used with hoses with 3/4" - 16 thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 21

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- included with both 218-5285 and 218-5299 tee, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

22

D56238

TUBE

- lock check to RH cylinder, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

23

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

Component of: D17388 Stabilizer lock check kit.

1шт.

24

D55174

HOSE ASSY.

HOSE - to RH cylinder, 7/8" - NF threads, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

2шт.

24

D55352

HOSE

- RH cylinder, 3/4" - 16 NF threads, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

2шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable. 90 degree, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

27

D54320

HOSE

- valve to diverter valve, lower port, 12" (305 mm ) long, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

28

1969212C1

SPECIAL NUT

HOSE - valve to diverter valve, upper port, 14" (356 mm) long, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

29

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 30

2шт.

30

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

O-RING, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

31

D45399

LOCK VALVE

VALVE - diverter, parts list Figure 156, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

32

218-5260

BUSHING

ADAPTER - straight, male, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 33

1шт.

Components of: D17128 Stabilizer lock check kit for backhoes with Extendahoe.

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

34

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- adjstable, 90 degree, used with 218-5485 tee, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 35

1шт.

34

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, used with 218-5484 tee, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit, Includes: Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Used with 218-5119 and 218-5120 elbows, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

36

218-5485

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 7/16"-20 BR

- adjustable, used with hoses with 7/8" - NF thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

36

218-5484

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run x 7/16"-20

- adjustable, used with hoses with 3/4" - NF thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

Components of: D17128 Stabilizer lock check kit for backhoes with Extendahoe.

1шт.

37

D58258

TUBE

- lock check to LH cylinder, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

Components of: D17128 Stabilizer lock check kit for backhoes with Extendahoe.

1шт.

38

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degree, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

1шт.

Components of: D17128 Stabilizer lock check kit for backhoes with Extendahoe.

1шт.

39

D50751

HOSE

- diversion valve to LH cylinder, 7/8" - 14 NF thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

2шт.

39

D55351

HOSE

- diversion valve to LH cylinder, 3/4" - 16 NF thread, D17126 stabilizer lock check kit used on backhoes w/ extendahoe used in addition to D17388 kit

2шт.
