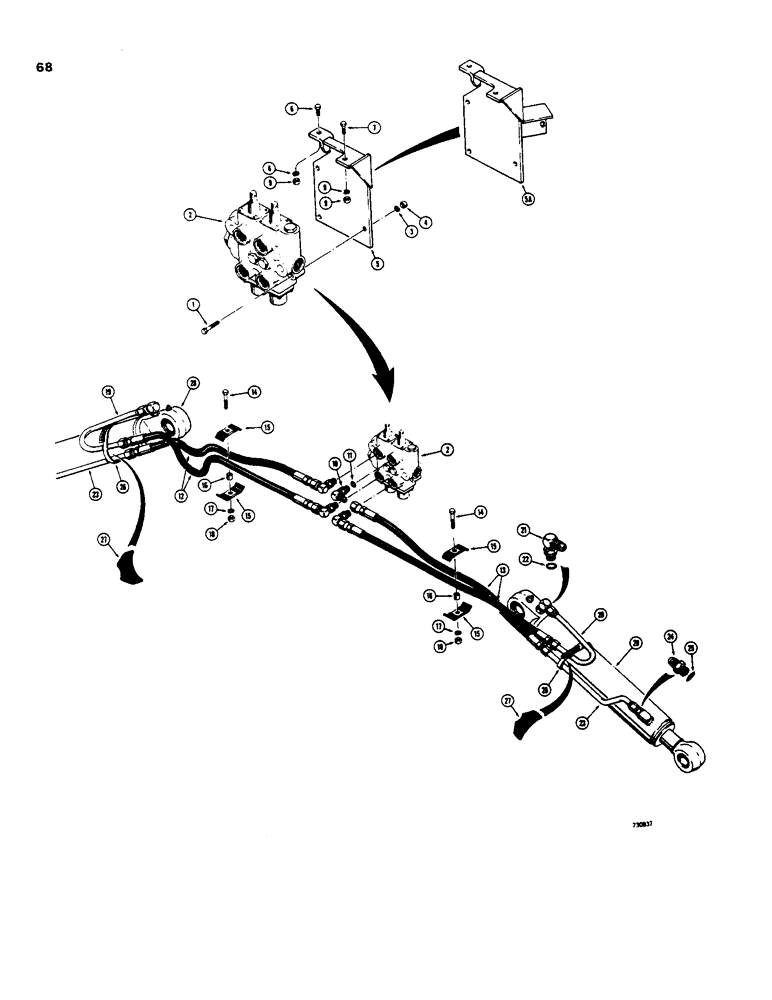

Запчасти Case 35 (068) - STABILIZER CYLINDER HYDS, COMMERCIAL - CROSS VALVES USED ON MDLS W/ BACKHOE SN 5219901 THRU 5222134

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

3шт.

2

D50420

VALVE

ASSEMBLY - 2 spool, stabilizer control, parts list Figure 210

1шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

5

D55693

BRACKET

- stabilizer valve mounting early production

1шт.

5a

D55693

BRACKET

- stabilizer valve mounting, late production; must be used if return tube is, Serial Range: clamped-bracket

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, Includes: Ref. 11

4шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.

12

D55351

HOSE

- stabilizer control valve to LH stabilizer cylinders, 33" (838 mm) long

2шт.

13

D55352

HOSE

- stabilizer control valve to RH stabilizer cylinders, 35" (839 mm) long

2шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

2шт.

15

D40236

CLAMP

- stabilizer cylinder hose

4шт.

16

D34244

SPACER

-, Serial Range: hose-clamp

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

D55360

TUBE

- stabilizer, closed end, LH

1шт.

20

D55357

TUBE

- stablizier, closed end, RH

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable. 90 degree, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

D55355

TUBE

- stabilizer, rod end, used with G32725 and G32726 cylinders only

2шт.

23

D55865

TUBE

- stabilizer, rod end, used with G33982 and G33983 cylinders only

2шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 25 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - tube to cylinder

2шт.

27

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

SADDLE - tube clamp

2шт.

28

REF

INSTRUCTION

CYLINDER - hydraulic, LH stabilizer, see Figure 252 - 268 for proper cylinder

1шт.

29

REF

INSTRUCTION

CYLINDER - hydraulic, RH stabilizer, see Figure 252 - 268 for proper cylinder

1шт.
