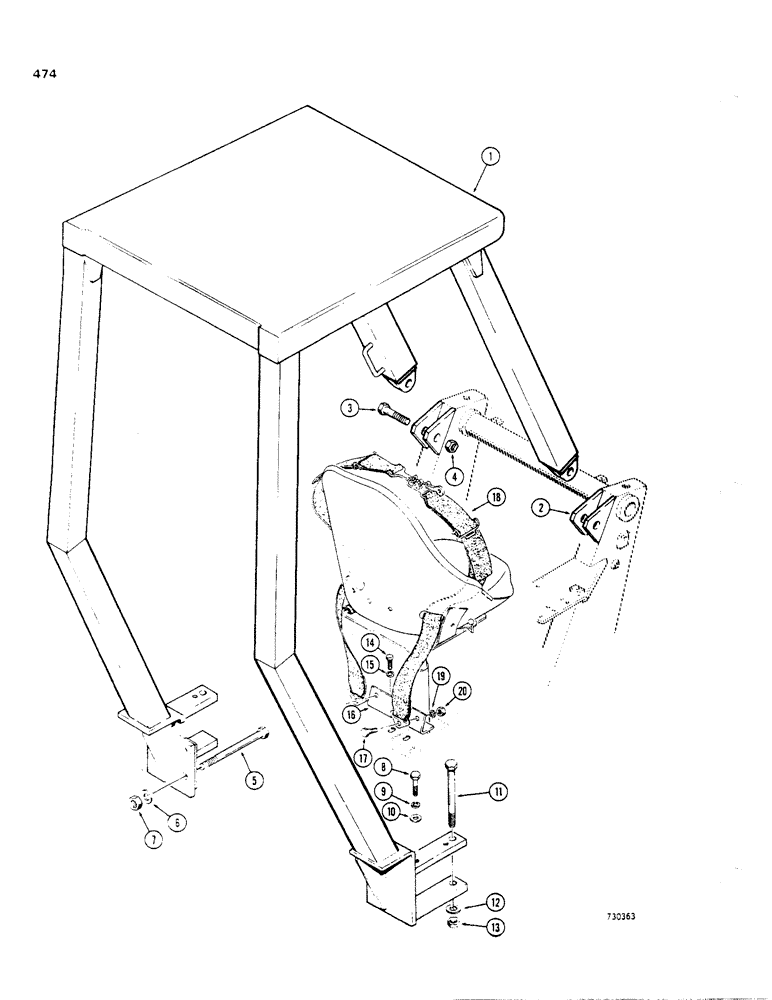

Запчасти Case 35 (474) - SIDE SHIFT BACKHOE, ROPS CANOPY AND SEAT BELTS

1

F93481

ROPS CANOPY - protective, machinery item

1шт.

2

D49671

BRACKET

- mounting, Serial Range: ROPS-subframe

4шт.

3

26-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

- hex, 1" - 8 NC x 3-1/2", grade 8

2шт.

4

25-1016

NUT,1"-8, G5

2шт.

5

26-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 8

- hex, 5/8" - 11 NC x 9", grade 8

4шт.

6

A28084

WASHER

- special, hardened

4шт.

7

25-1010

NUT,5/8"-11, G5

4шт.

8

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4", fender mounting

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

195-33

WASHER,1/2"

- plain, 1/2"

4шт.

11

26-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 8

- hex, 5/8" - 11 NC x 9-1/2", grade 8

2шт.

12

A28084

WASHER

- special, hardened

2шт.

13

25-1010

NUT,5/8"-11, G5

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Seat belts Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Seat belts 3/8"

2шт.

16

F42235

BRACKET

- mounting, seat belt

1шт.

17

F42236

STEP BOLT

BOLT - shoulder, special, seat belts

2шт.

18

D60615

SAFETY BELT ,3.00" W

One set 3.00" W

1шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Seat belts 7/16"

2шт.

20

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, seat belts

2шт.
