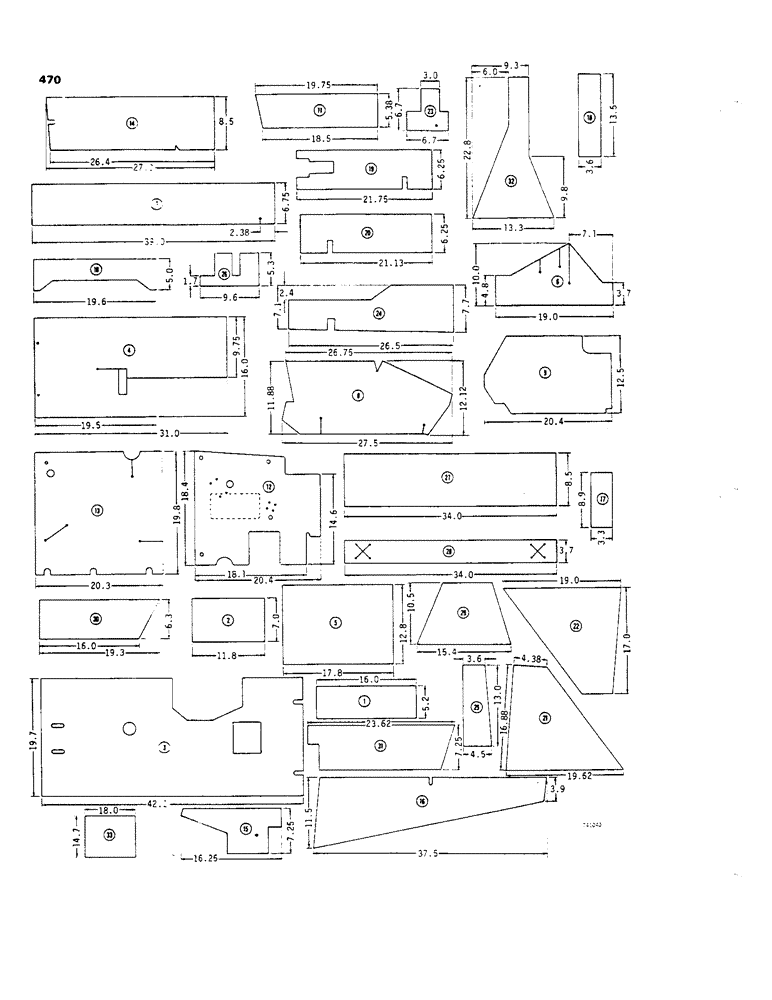

Запчасти Case 35 (470) - NOISE CONTROL COMPONENTS, DIMENSIONAL INFORMATION

1

REF

INSTRUCTION

PAD - hood, side, front, cut from D59896 bulk foam

1шт.

2

REF

INSTRUCTION

PAD - hood, side, rear, cut from D59897 bulk foam

1шт.

3

REF

INSTRUCTION

PAD - hood, top, cut from D59896 bulk foam

1шт.

4

REF

INSTRUCTION

PADDING - closure, RH upright, cut from D60787 bulk

1шт.

5

REF

INSTRUCTION

PAD - wrapper, top, cut from D59896 bulk foam

1шт.

6

REF

INSTRUCTION

PAD - noise deflection, cut from D60787 bulk foam

1шт.

7

REF

INSTRUCTION

PADDING - ROPS channel, cut from D60268 bulk foam

1шт.

8

REF

INSTRUCTION

PADDING - support, LH and RH, cut from D59900 bulk

1шт.

9

REF

INSTRUCTION

PAD - wrapper, side, cut from D59897 bulk foam

1шт.

10

REF

INSTRUCTION

PAD - baffle plate, cut from D60787 bulk foam

1шт.

11

REF

INSTRUCTION

PADDING - above door and window, front, cut from D60780 bulk foam

1шт.

12

REF

INSTRUCTION

PAD - front floor, cut from D59897 bulk foam

1шт.

13

REF

INSTRUCTION

PAD - rear floor, cut from D59897 bulk foam

1шт.

14

REF

INSTRUCTION

PADDING - door, upper, for service order D59876

1шт.

15

REF

INSTRUCTION

PADDING - rear closure panel, RH side, cut from D60275 bulk foam

1шт.

16

REF

INSTRUCTION

PAD - engine side panels, cut from D59896 bulk foam

1шт.

17

REF

INSTRUCTION

PAD - battery access cover, cut from D59897 bulk foam

1шт.

18

REF

INSTRUCTION

PAD - operator's compartment panel, upper, RH, cut from D60787 bulk foam

1шт.

19

REF

INSTRUCTION

PADDING - noise control, RH top of windshield, cut from D60780 bulk foam

1шт.

20

REF

INSTRUCTION

PADDING - noise control, LH top of windshield, cut from D60780 bulk foam

1шт.

21

REF

INSTRUCTION

PADDING - door, lower, cut from D59894 bulk foam

1шт.

22

REF

INSTRUCTION

PADDING - access panel, RH side, cut from D59897 bulk

1шт.

23

REF

INSTRUCTION

PADDING - brake panel, cut from D60787 bulk foam

1шт.

24

REF

INSTRUCTION

PAD - operator's compartment panel, LH, cut from D60787 bulk foam

1шт.

25

REF

INSTRUCTION

PAD - operator's compartment panel, RH, cut from D59896 bulk foam

1шт.

26

REF

INSTRUCTION

PAD - operator's compartment panel, RH, cut from D60787 bulk foam

1шт.

27

REF

INSTRUCTION

PADDING - crossmember, noise control, cut from D59897 bulk foam

1шт.

28

REF

INSTRUCTION

PADDING - crossmember, noise control, cut from D59897 bulk foam

1шт.

29

REF

INSTRUCTION

PADDING - plate, cut from D59899 bulk foam

1шт.

30

REF

INSTRUCTION

PADDING - side panel, RH side, cut from D59899 bulk foam

1шт.

31

REF

INSTRUCTION

PADDING - rear closure panel, LH side, cut from D60275 bulk foam

1шт.

32

REF

INSTRUCTION

PADDING - barrier, LH upright, cut from D60787 bulk

1шт.

33

REF

INSTRUCTION

PAD - loader valve cover, cut from D59896 bulk foam

1шт.

34

D60275

PADDING - bulk, 12" x 36" x 2" sheet

1шт.

35

D60780

PADDING - bulk, 12" x 36" x 2" sheet

1шт.

36

D59899

PAD

DING - bulk, 54" x 36" x 1"

1шт.

37

D60787

PADDING - bulk, 24" x 48" x .80" sheet

1шт.

38

D60268

PADDING - bulk, 54" x 36" x 1/2" sheet

1шт.

39

D59900

PADDING - bulk, 54" x 36" x 1/4" sheet

1шт.

40

D59897

PADDING

- bulk, 54" x 36" x 1" sheet

1шт.

41

D59896

PADDING

- bulk, 54" x 36" x 2" sheet

1шт.
