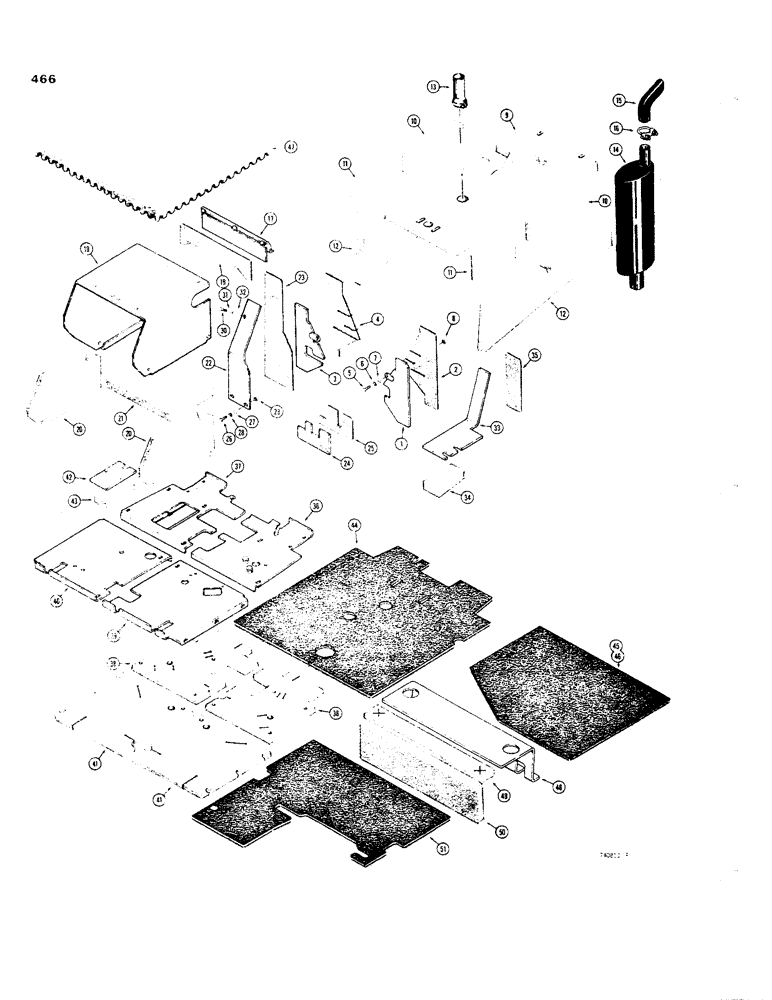

Запчасти Case 35 (466) - TRACTOR NOISE CONTROL COMPONENTS, USED ON UNITS WITH ROPS CANOPY

1

D56010

PLATE - noise deflection, RH, Includes: Ref. 2

1шт.

2

REF

INSTRUCTION

PAD - noise deflection plate, see Figure 470, Ref. 6, for dimensional information

1шт.

3

D56011

PLATE - noise deflection, LH, Includes: Ref. 4

1шт.

4

REF

INSTRUCTION

PAD - noise deflection plate, see Figure 470, Ref. 6, for dimensional information

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

195-521

WASHER,5/16", SAE

- plain, 5/16", zinc plated

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

REF

INSTRUCTION

PAD - hood, top, see Figure 470, Ref. 3, for dimensional information

1шт.

10

REF

INSTRUCTION

PAD - hood, side, see Figure 470, Ref. 1, for dimensional information

2шт.

11

REF

INSTRUCTION

PAD - hood, side, rear, see Figure 470, Ref. 2, for dimensional information

2шт.

12

REF

INSTRUCTION

PAD - engine side panels, see Figure 470, Ref. 16, for dimensional information

2шт.

13

D61279

MUFFLER

EXTENSION - air cleaner, noise reduction

1шт.

14

D55532

MUFFLER

- exhaust, noise reduction

1шт.

15

D53101

PIPE

EXTENSION - muffler, noise reduction

1шт.

16

G45410

CLAMP

-, Serial Range: extension-muffler

1шт.

17

D55187

PLATE - baffle, noise control

1шт.

18

REF

INSTRUCTION

PAD - baffle plate, noise control, see Figure 470, Ref. 10, for dimensional information

1шт.

19

D55504

WRAPPER - instrument panel

1шт.

20

REF

INSTRUCTION

PAD - wrapper, side, see Figure 470, Ref. 9, for dimensional information

2шт.

21

REF

INSTRUCTION

PAD - wrapper, top, see Figure 470, Ref. 5, for dimensional information

1шт.

22

D59539

PANEL - operator's compartment, LH

1шт.

23

REF

INSTRUCTION

PAD - operator's compartment panel, LH, see Figure 470, Ref. 24, for dimensional information

1шт.

24

D61473

PANEL - operator's compartment, lower, RH

1шт.

25

REF

INSTRUCTION

PAD - operator's compartment panel, RH, see Figure 470, Ref. 26, for dimensional information

1шт.

26

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

27

195-18

WASHER,1/4"

- flat, 1/4"

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

4шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

32

195-525

WASHER,3/8", SAE

- flat, 3/8", zinc plated

1шт.

33

D61472

PANEL - operator's compartment, upper, RH

1шт.

34

REF

INSTRUCTION

PAD - operator's compartment panel, RH, see Figure 470, Ref. 25, for dimensional information

1шт.

35

REF

INSTRUCTION

PAD - operator's compartment panel, upper, RH, see Figure 470, Ref. 18, for dimensional information

1шт.

36

D55023

PLATE ASSY.

PLATE - floor, front, RH

1шт.

37

D55022

PLATE

- floor, front, LH

1шт.

38

REF

INSTRUCTION

PAD - front floor, see Figure 470, Ref. 12, for dimensional information

2шт.

39

D56433

PLATE ASSY.

PLATE - floor, rear, RH

1шт.

40

D55462

PLATE ASSY.

PLATE - floor, rear, LH

1шт.

41

REF

INSTRUCTION

PAD - rear floor, see Figure 470, Ref. 13, for dimensional information

2шт.

42

D55028

PLATE

- battery access cover

1шт.

43

REF

INSTRUCTION

PAD - battery access cover, see Figure 470, Ref. 17, for dimensional information

1шт.

44

D61562

MAT - floor

1шт.

45

D59540

PAD - fender, RH

1шт.

46

D59541

PAD - fender, LH

1шт.

47

D59562

PAD - ROPS canopy ceiling

1шт.

48

D62227

STEP - floor plate, rear, backhoe models only

1шт.

49

REF

INSTRUCTION

PAD - crossmember, noise control, see Figure 470, Ref. 28, for dimensional information

1шт.

50

REF

INSTRUCTION

PAD - crossmember, noise control, see Figure 470, Ref. 27, for dimensional information

1шт.

51

D62319

MAT - floor, backhoe control area

1шт.
