Запчасти Case 35 (460) - CAB NOISE CONTROL COMPONENTS

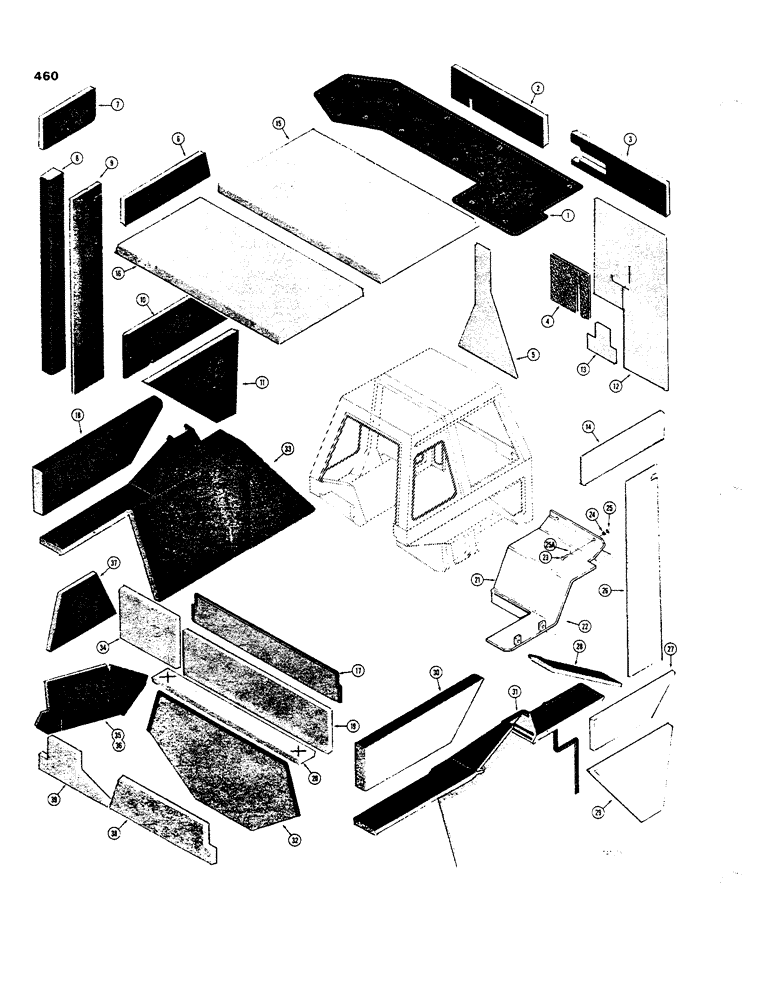

Схема запчастей Case 35 - (460) - CAB NOISE CONTROL COMPONENTS

Артикул

Название

Примечание

Количество

1

D59893

PADDING - instrument panel wrapped

1шт.

2

REF

INSTRUCTION

PADDING - noise control, LH top of windshield, see Figure 470, Ref. 20, for dimensional information

1шт.

3

REF

INSTRUCTION

PADDING - noise, control, RH top of windshield, see Figure 470, Ref. 19, for dimensional information

1шт.

4

D60276

PADDING - clutch panel

1шт.

5

REF

INSTRUCTION

PADDING - barrier, LH upright, see Figure 470, Ref. 32, for dimensional information

1шт.

6

REF

INSTRUCTION

PADDING - above door, LH side, see Figure 470, Ref. 11, for dimensional information

1шт.

7

D59293

PADDING - upper window panel

2шт.

8

D59297

PADDING - side window panel

2шт.

9

REF

INSTRUCTION

PADDING - ROPS channel LH, see Figure 470, Ref. 7

1шт.

10

REF

INSTRUCTION

PADDING - door, upper, see Figure 470, Ref. 14

1шт.

11

REF

INSTRUCTION

PADDING - door, lower, see Figure 470, Ref. 21

1шт.

12

REF

INSTRUCTION

PADDING - closure, RH upright, see Figure 470, Ref. 4

1шт.

13

REF

INSTRUCTION

PADDING - brake panel, see Figure 470, Ref. 23

1шт.

14

REF

INSTRUCTION

PADDING - above front window, RH side, see Figure 422, Ref. 11, for dimensional information

1шт.

15

F42209

HEADLINER - cab, front

1шт.

16

F42210

ROOF LINING

HEADLINER - cab, rear

1шт.

17

D59873

PADDING - noise control, above rear window

1шт.

18

D61431

PADDING - rear window panel, LH side

1шт.

19

REF

INSTRUCTION

PADDING - rear crossmember, front, see Figure 470 Ref. 27, for dimensional information

1шт.

20

REF

INSTRUCTION

PADDING - rear crossmember, top, see Figure 470, Ref. 28, for dimensional information

1шт.

21

D58946

PLATE - cover, loader valve

1шт.

22

REF

INSTRUCTION

PAD - loader valve cover, see Figure 470, Ref. 33

1шт.

23

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

5шт.

25a

195-18

WASHER,1/4"

- plain, 1/4"

5шт.

26

REF

INSTRUCTION

PADDING - ROPS channel, RH, see Figure 470 Ref. 7

1шт.

27

REF

INSTRUCTION

PADDING - side panel, RH side, see Figure 470 Ref. 30

1шт.

28

D59888

PADDING - valve, lower

1шт.

29

REF

INSTRUCTION

PADDING - access panel, RH side, see Figure 470, Ref. 22, for dimensional information

1шт.

30

D61430

PADDING - rear window panel, RH side

1шт.

31

D59892

PADDING - lower panel, RH side

1шт.

32

D59886

PADDING - backhoe tower

1шт.

33

D59891

PADDING - lower panel, LH side

1шт.

34

D59887

PADDING - control tower, RH

1шт.

35

REF

INSTRUCTION

PADDING - support, LH, see Figure 470, Ref. 8, for dimensional information

1шт.

36

REF

INSTRUCTION

PADDING - support, RH, see Figure 470, Ref. 8, for dimensional information

1шт.

37

REF

INSTRUCTION

PADDING - plate, see Figure 470, Ref. 29 for dimensional information

1шт.

38

REF

INSTRUCTION

PADDING - rear closure panel, RH side, see Figure 470, Ref. 15, for dimensional information

1шт.

39

REF

INSTRUCTION

PADDING - rear closure panel, LH side, see Figure 470, Ref. 31, for dimensional information

1шт.

Выбрано товаров: 40
