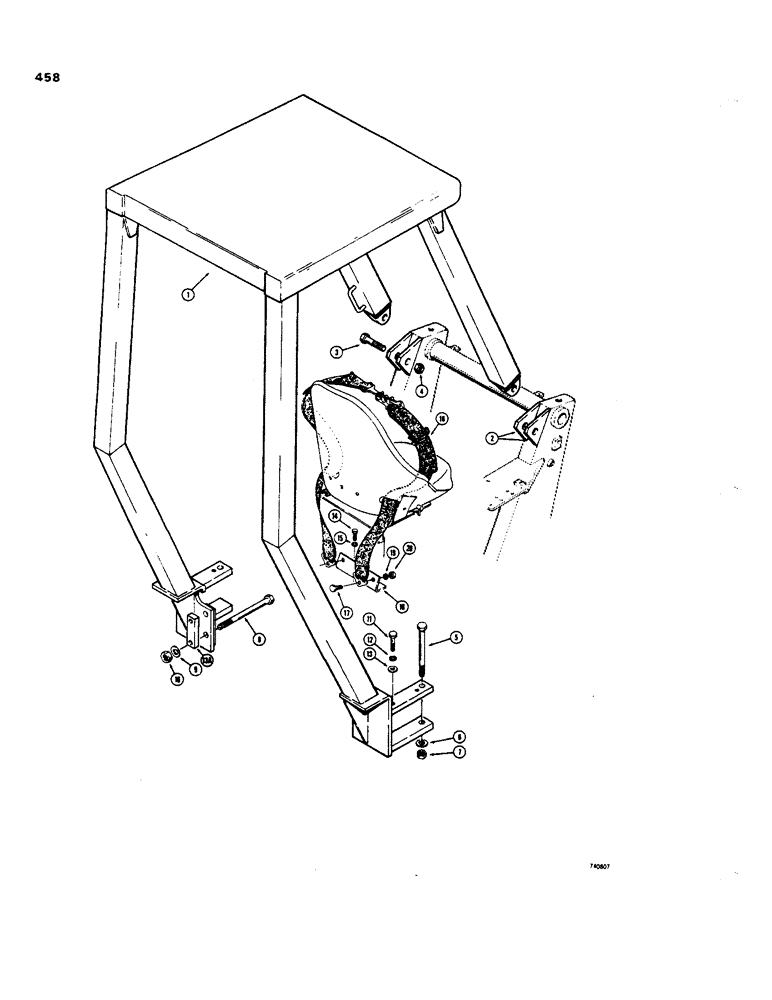

Запчасти Case 35 (458) - ROPS CANOPY AND SEAT BELTS

REF

INSTRUCTION

ROPS CANOPY - complete, machinery item, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

ROLL BAR - complete

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, roll, Serial Range: bar-subframe

4шт.

3

26-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

- hex, 1" - NC x 3-1/2"

2шт.

4

25-1016

NUT,1"-8, G5

2шт.

5

26-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 8

- hex, 5/8" - 11 NC x 7-3/4"

2шт.

6

A28084

WASHER

- special

2шт.

7

25-1010

NUT,5/8"-11, G5

2шт.

8

26-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 8

- hex, 5/8" - 11 NC x 9"

4шт.

9

A28084

WASHER

- special

4шт.

10

25-1010

NUT,5/8"-11, G5

4шт.

11

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4"

4шт.

11

195-33

WASHER,1/2"

- lock, 1/2"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

13a

D61516

SPACER - rollbar mounting, used on drawbar models only

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

ROPS canopy seat belts Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , ROPS canopy seat belts 3/8"

2шт.

16

F42235

BRACKET

- mounting, seat belt, rops canopy

1шт.

17

F42236

STEP BOLT

BOLT - shoulder, special, rops canopy seat belts

2шт.

18

D82423

BELT

safety, rops canopy seat belts

1шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , ROPS canopy seat belts 7/16"

2шт.

20

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, rops canopy seat belts

2шт.
