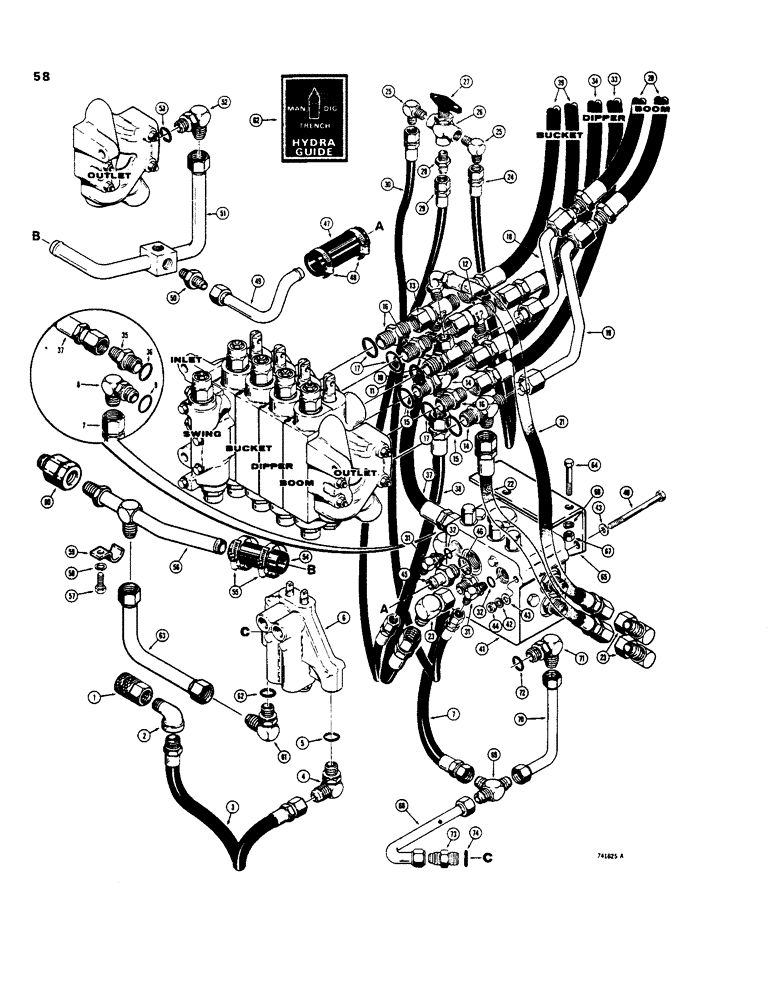

Запчасти Case 35 (058) - HYDRA-GUIDE CNTRLS, CASE- CESSNA VALVE, USED ON MDLS W/ BACKHOE SN 5251151 & AFT

1

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female half, parts list Figure 162

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

D56094

HOSE

- pressure line to stabilizer valve, 39" (991 mm) long

1шт.

4

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 5 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - stabilizer control, see Figure 74 for related parts and Figure 212 for component parts

1шт.

7

D57884

HOSE ASSY.

HOSE - tee to no. 6 port of Hydra-Guide control valve, 16-1/2" (419 mm) long, see Figure 120 for related hydrualic components

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degree, no. 6 port of control valve, Incl. Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

D55578

TEE - adjustable, special, upper port of boom section, Includes: Ref. 11

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

- adjustable, 90 degree, upper port of dipper section

1шт.

13

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

- adjustable, 90 degree, upper port of bucket section

1шт.

14

218-5295

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- adjustable, 90 degree, lower port of bucket and boom sections, Includes: Ref. 15

2шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, lower port of dipper section - upper port of bucket and dipper sections, Incl. Ref. 17

3шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

D60425

TUBE

- valve to boom cylinder, upper port

1шт.

19

D55574

TUBE

- valve to boom cylinder, lower port

1шт.

20

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

- backhoe valve to boom cylinder, 38' (965 mm) long, see Figure 95 for related hydrualics

2шт.

21

D56127

HOSE ASSY.

HOSE - upper port of boom section to no. 7 port of control valve, 38" (965 mm) long

1шт.

22

D56128

HOSE

- lower port of boom section to no. 8 port of control valve, 25" (635 mm) long

1шт.

23

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, swivel

3шт.

24

D54100

FLEXIBLE HOSE

HOSE - upper port of dipper section to no. 1 port of selector valve, 23" (584 mm) long

1шт.

25

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree

2шт.

26

D55981

LOCK VALVE

VALVE ASSEMBLY - selector

1шт.

27

D57384

HANDLE - selector valve

1шт.

28

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, male

1шт.

29

D56126

HOSE

- no. 2 port of selector valve to no. 3 port of control valve, 41" (1041 mm) long

1шт.

30

D52711

HOSE

- no 3 port of selector valve to no. 4 port of control valve to no. 4 port of control valve, 32" (813 mm) long

1шт.

31

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjustable, 90 degree, Includes: Ref. 32

2шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

33

D55988

HOSE

- hydrualic, lower port backhoe valve to dipper cylinder, 83" (2108 mm) long

1шт.

34

D55987

HOSE

- hydrualic, upper port backhoe valve to dipper cylinder 90" (2108 mm) long

1шт.

35

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 36

1шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

Upper Port of Bucket Section to No. 5 Port of Control Valveg 0.38" ID x 17.00", SAE 100R1

1шт.

38

D56130

HOSE

- lower port of bucket section to no. 2 port of control valve, 14-1/2" (369 mm) long

1шт.

39

D55989

HOSE,15.88mm ID x 2413mm L, SAE 100R2

- hydraulic, to bucket cylinder, 95" (2413 mm) long, see Figure 95 for related hydraulics

2шт.

40

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

41

D54561

VALVE

- Hydra-Guide, parts list Figure 166

1шт.

42

92-6

LOCK WASHER,3/8"

2шт.

43

195-25

WASHER,3/8"

- plain, 3/8"

4шт.

44

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

45

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

HOSE STEM - barb type, no. 1 port of control valve, Includes: Ref. 46

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

47

D24728

HOSE

- return

1шт.

48

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

49

D58857

TUBE

- return, no. 1 port of control valve to outlet return

1шт.

50

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

51

D58817

TUBE

- return, backhoe control valve

1шт.

52

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 53

1шт.

53

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

54

R12351

LARGE HOSE

HOSE - return, backhoe valve 1

1шт.

55

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

56

D61221

TUBE

- return, at mounting frame

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

58

92-6

LOCK WASHER,3/8"

1шт.

59

D55880

CLAMP

- return, Serial Range: tube-frame

1шт.

60

D52694

QUICK MALE COUPLING

COUPLING - male, straight, parts list Figure 162

1шт.

61

2185123

ELBOW - adjustable, 90 degree, Includes: Ref. 62

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

63

D61325

TUBE

- return, stabilizer valve to return tube at frame

1шт.

64

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 3-1/2"

2шт.

65

D59125

BUCKET - mounting, control valve

1шт.

66

92-6

LOCK WASHER,3/8"

2шт.

67

25-106

NUT,3/8"-16, G5

- hex, 3/8"

2шт.

68

D57877

TUBE

- stabilizer to backhoe valve inlet and hydra-guide valve

1шт.

69

218-596

TEE,1 1/16"-12 37 Degree

- male

1шт.

70

D57882

TUBE

- tee to backhoe valve inlet

1шт.

71

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Includes: Ref. 72 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

72

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

73

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 74

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
