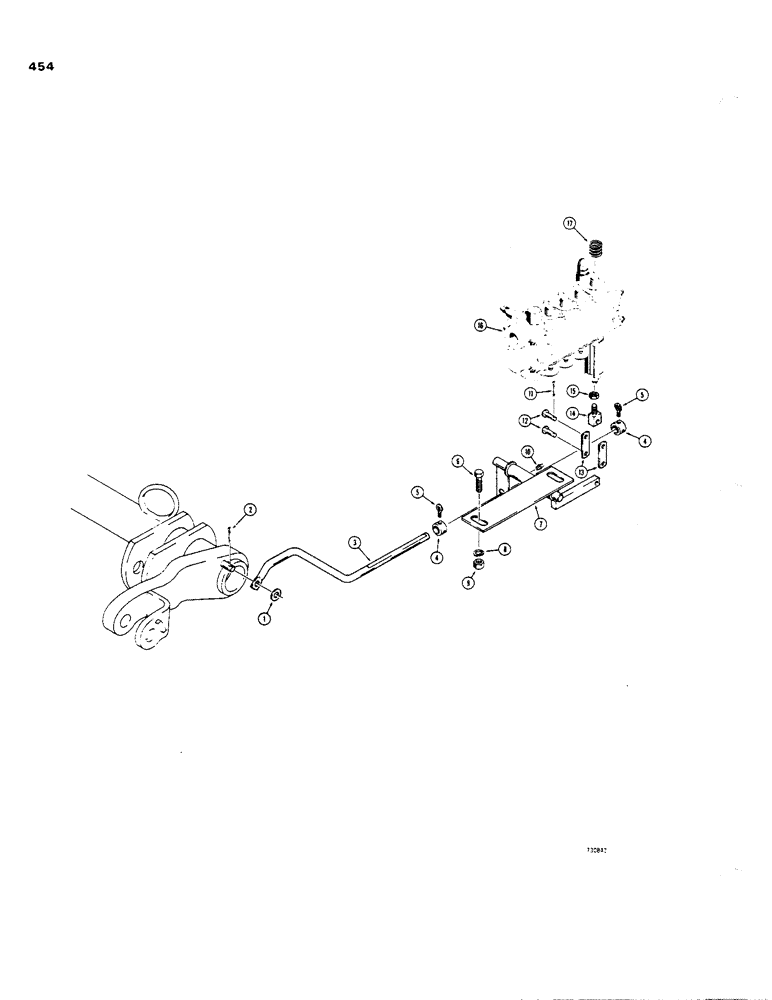

Запчасти Case 35 (454) - HITCH POSITIONING CONTROLS, METRO-SPECIAL MODELS ONLY

1

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

2

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

3

D58068

ROD - depth control, rear

1шт.

4

D37570

COLLAR

- stop, depth control

2шт.

5

183-111

SCREW - thumb, 1/4" - 20 NC x 3/4"

2шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

D57999

BELL CRANK AND BRACKET - depth control

1шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

12

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

13

D34624

LINK

- bell crank to valve spool

2шт.

14

D57847

CONNECTOR - link to valve spool

1шт.

15

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, lock, 3/8" - 16 NC

1шт.

16

D57862

VALVE - control, 3 point hitch, parts list Figure 144

1шт.

17

D58969

SPRING - compression, lift spool

1шт.
