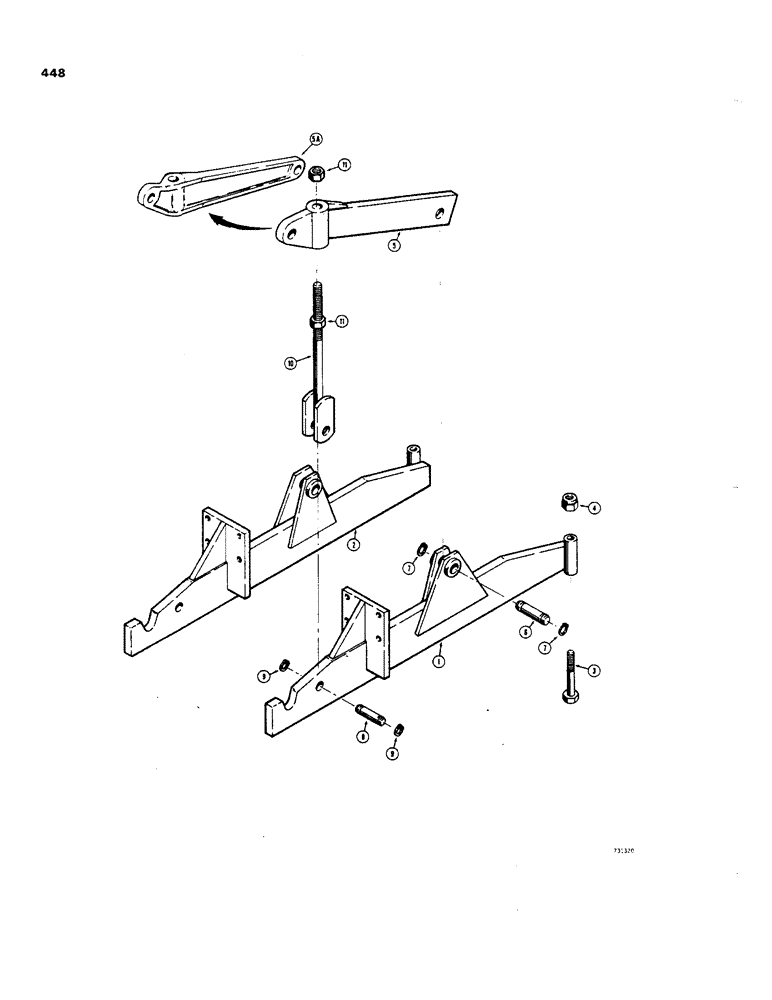

Запчасти Case 35 (448) - 3-POINT HITCH MOUNTING PARTS

1

D52180

ARM

SUPPORT ARM - lower, RH

1шт.

2

D52181

ARM

SUPPORT ARM - lower, LH

1шт.

3

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

- hex, 3/4" - 10 NC x 6-3/4"

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, lock, 3/4" - 10 NC

2шт.

5

*D37732

SUPPORT ARM - upper, fabricated type, use with (4) D58169

2шт.

5a

D58169

ARM

SUPPORT ARM - upper, case type, loader, Start Serial: 5264200

2шт.

6

D28037

AXLE PIN

PIN - arm mounting, upper

2шт.

7

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

8

D33816

PIN

- mounting, tension strap

2шт.

9

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

10

D54307

ROD

STRAP - tension

2шт.

11

25-1116

NUT,1"-14, G5

- hex, lock, 1" - 14 NF

4шт.
