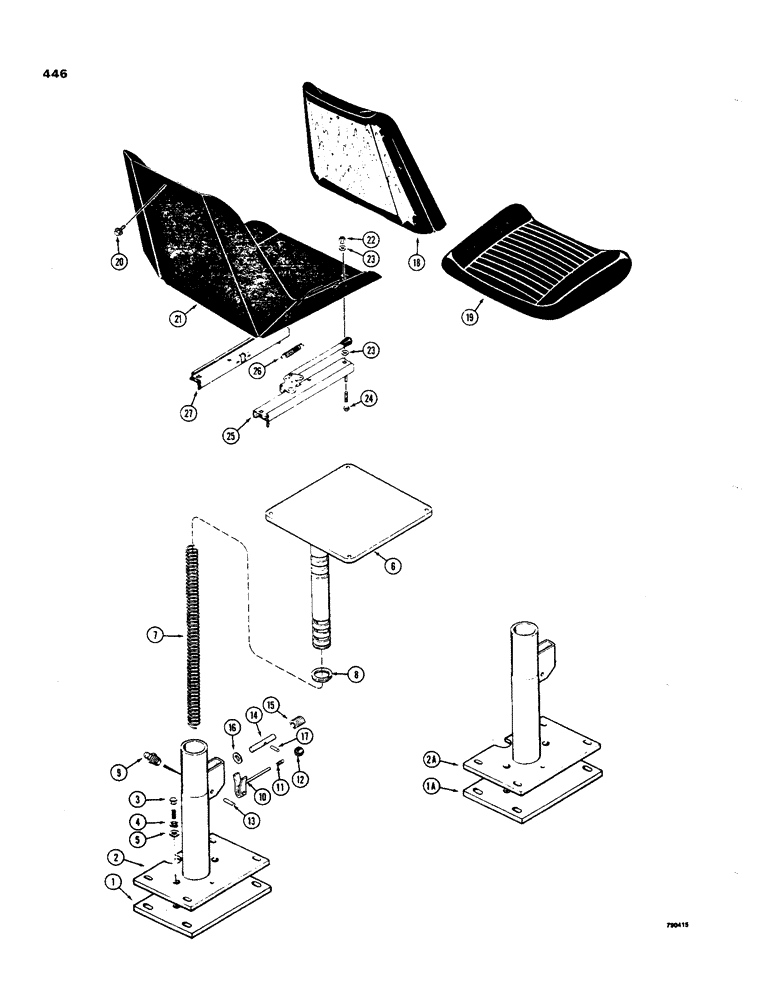

Запчасти Case 35 (446) - SIDE SHIFT BACKHOE, SEAT AND MOUNTING PARTS

1

*E18977

PLATE - base, seat mounting, early production

1шт.

1a

*E32702

PLATE - base, seat mounting, late production

1шт.

2

*E18481

BASE AND POST - seat support, early production

1шт.

2a

*E32704

BASE AND POST - seat support, late production

1шт.

3

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

195-2034

WASHER,7/16" x 1 1/4" x .134"

- plain, 3/8"

2шт.

6

E18480

POST

- seat mounting, inner

1шт.

7

D49775

SPRING

- lift, seat

1шт.

8

D49776

SNAP RING,#187, 2.008", Int, Spiral

RING - snap, spring retaining

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

10

D38258

LOCK

- post, seat position

1шт.

11

D38673

RING

- tolerance

1шт.

12

D38643

KNOB

- lock handle

1шт.

13

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

14

D38261

PIN

- post lock

1шт.

15

D49774

SPRING

- lock pin

1шт.

16

D49941

SPRING WASHER

- spring

1шт.

17

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

D55381

SEAT

ASSEMBLY - operator, Includes: Ref. 18 - 27

1шт.

18

D55938

CUSHION

- backrest

1шт.

19

D55939

CUSHION

- seat

1шт.

20

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

AND WASHER ASSEMBLY - hex head, 1/4" - 20 NC x 3/4", cushion to seat shell

5шт.

21

D55940

SHELL

- seat

1шт.

22

131-31

LOCK NUT,5/16"-24, G8

NUT - hex, lock, 5/16" - 24 NF

4шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

8шт.

24

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(Slide to shell) Hex, 5/16"-24 x 7/8", G5, Full Thd

4шт.

25

D53585

CUSHION

SLIDE - seat, RH, adjustment side, Includes: Ref. 26

1шт.

26

D55954

SPRING

- adjustment lever

1шт.

27

D53586

SLIDE

- seat, LH, plain side

1шт.
