Запчасти Case 35 (442) - SIDE SHIFT BACKHOE, CONTROL LEVERS AND SWING PEDAL LINKAGE *EARLY PRODUCTION

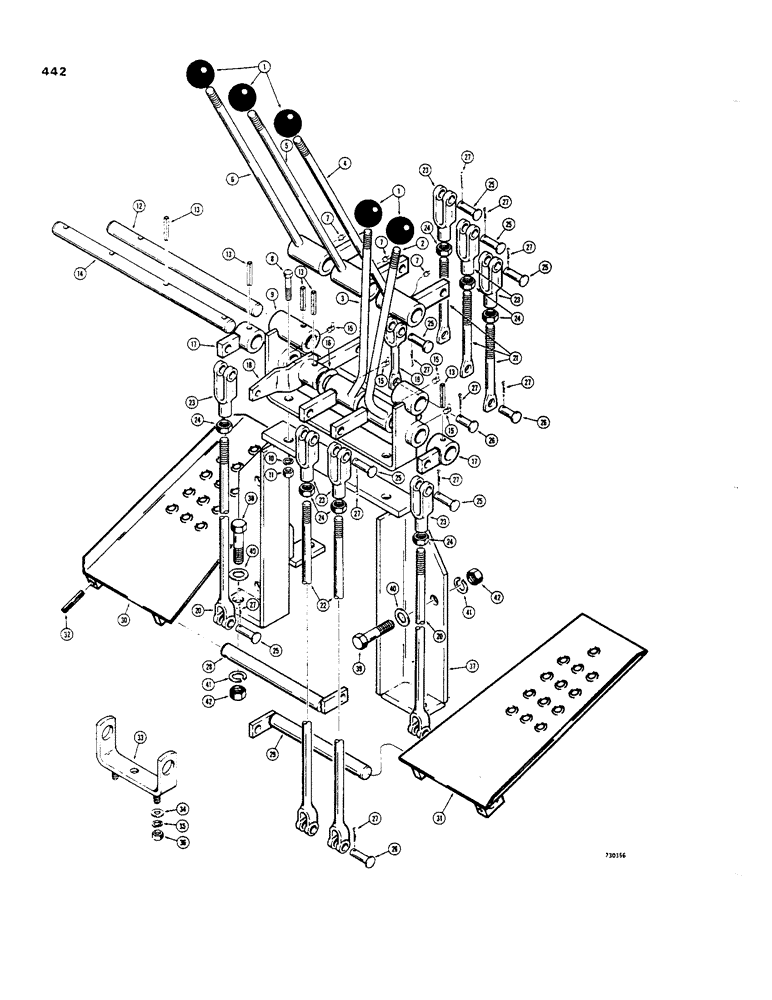

Схема запчастей Case 35 - (442) - SIDE SHIFT BACKHOE, CONTROL LEVERS AND SWING PEDAL LINKAGE *EARLY PRODUCTION

Артикул

Название

Примечание

Количество

1

D59912

KNOB

- control lever

5шт.

2

E18879

LEVER

- control, RH stabilizer

1шт.

3

D58041

LEVER - control, LH stabilizer

1шт.

4

E18860

LEVER

- control, boom

1шт.

5

E18859

LEVER - control, dipper

1шт.

6

E18858

LEVER - control, bucket

1шт.

7

219-4

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

9

E18853

BRACKET - mounting, control levers

1шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

12

D50404

SHAFT

- lever pivot, upper

1шт.

13

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

5шт.

14

D50416

SHAFT

- lever pivot, lower

1шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

16

195-45

WASHER,3/4"

1шт.

17

NLS

NO LONGER SERVICED

- swing control, at, Serial Range: rods-pedals

2шт.

18

E18092

LEVER

- swing control, at valve

1шт.

19

D58408

ROD - swing control, at valve

1шт.

20

D50405

ROD

- swing control, at pedals

2шт.

21

D58409

ROD - boom, dipper and bucket control

3шт.

22

D58042

ROD - stabilizer control, RH and LH

2шт.

23

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end, 3/8" - 24 NF

7шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

7шт.

25

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , at control levers 3/8" x 1.060"

10шт.

26

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , at valve spools 5/16" x .940"

6шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

16шт.

28

D50407

SHAFT

- swing pedal, LH

1шт.

29

D50406

SHAFT

- swing pedal, RH

1шт.

30

D58221

PEDAL

- swing, LH control

1шт.

31

D58220

PEDAL

- swing, RH control

1шт.

32

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

33

D56287

BRACKET

- mounting, swing pedal

2шт.

34

195-25

WASHER,3/8"

- plain, 3/8"

4шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

37

D58273

BRACKET

- mounting, 4 spool control valve

1шт.

38

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", bracket to plate

3шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Valve to bracket Hex, 1/2"-13 x 2", G5

3шт.

40

95-8

WASHER,1/2"

- plain 1/2"

6шт.

41

92-8

LOCK WASHER,1/2"

6шт.

42

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

Выбрано товаров: 42
