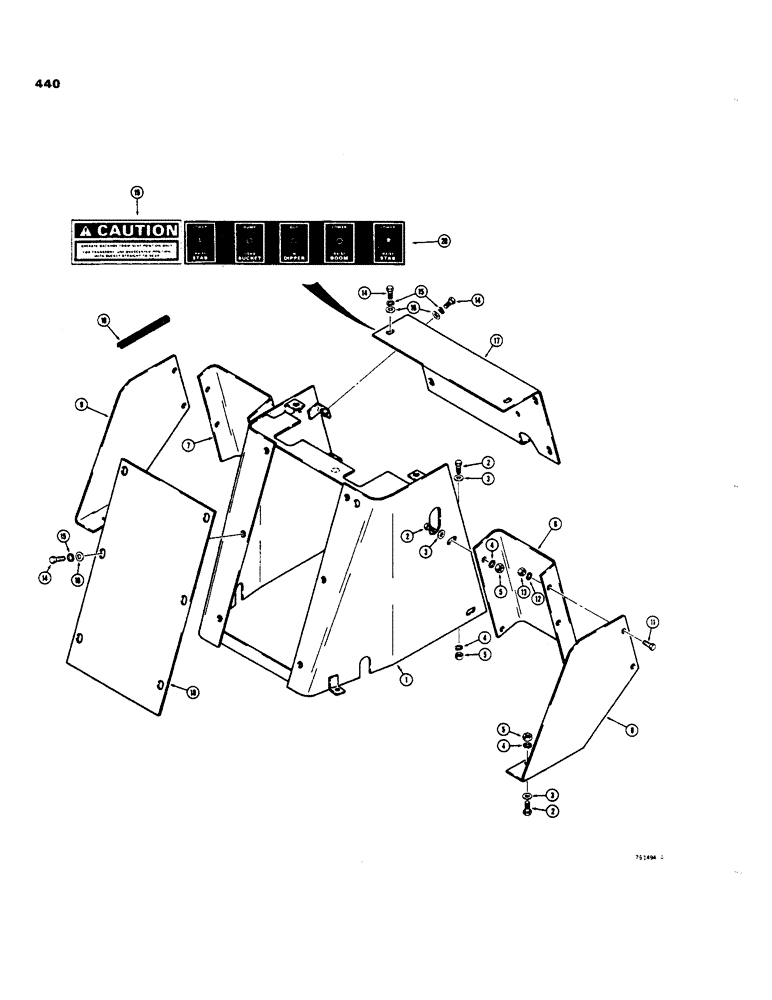

Запчасти Case 35 (440) - SIDE SHIFT BACKHOE CONTROL TOWER AND COVERS, LATE PRODUCTION

1

E31225

HOOD

CONSOLE - center, control levers

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

3

195-25

WASHER,3/8"

- plain, 3/8"

6шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

6

E30160

SHIELD - foot pedal, RH, front

1шт.

7

E30158

SHIELD - foot pedal, LH, front

1шт.

8

E30162

SHIELD

- foot pedal, RH, side

1шт.

9

E30161

SHIELD

- foot pedal, LH, side

1шт.

10

D47936

LINING

EDGE - protective, foot shield

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

14шт.

15

92-6

LOCK WASHER,3/8"

14шт.

16

195-25

WASHER,3/8"

- plain, 3/8"

14шт.

17

E31064

COVER - console, rear

1шт.

18

E18910

COVER

- console, front

1шт.

19

321-2251

DECAL

- backhoe transport information

1шт.

20

321-2192

DECAL

- operator control, at console

1шт.
