Запчасти Case 35 (438) - SIDE SHIFTBACKHOE CONTROL TOWER AND COVERS, EARLY PRODUCTION

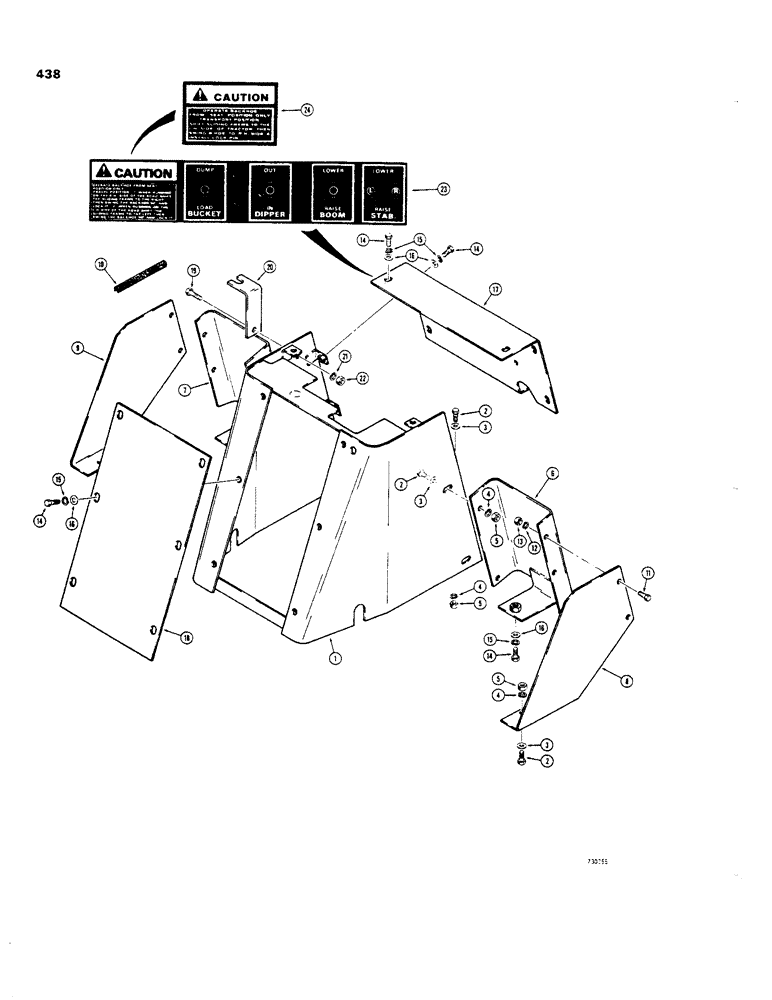

Схема запчастей Case 35 - (438) - SIDE SHIFTBACKHOE CONTROL TOWER AND COVERS, EARLY PRODUCTION

Артикул

Название

Примечание

Количество

1

E18902

HOOD

CONSOLE - center, control levers, models with T handle boom lock released, see Figure 432

1шт.

1

E31225

HOOD

CONSOLE - center, control levers, models with control lever boom lock release, see Figure 430

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

3

195-25

WASHER,3/8"

- plain, 3/8"

8шт.

4

92-6

LOCK WASHER,3/8"

8шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

6

E30159

SHIELD - foot pedal, RH, front

1шт.

7

E30157

SHIELD - foot pedal, LH, front

1шт.

8

E30162

SHIELD

- foot pedal, RH, side

1шт.

9

E30161

SHIELD

SHEILD - foot pedal, LH, side

1шт.

10

D47936

LINING

EDGE - protective, foot shield, cut from D52812

2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

14шт.

15

92-6

LOCK WASHER,3/8"

14шт.

16

195-25

WASHER,3/8"

- plain, 3/8"

14шт.

17

E31064

COVER - console, rear

1шт.

18

E18910

COVER

- console, front

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

20

E19136

SUPPORT

BRACKET - support, if used

1шт.

21

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.

23

321-2027

DECAL - operator control, at console

1шт.

24

321-2551

DECAL

- backhoe transport information, use in place of transport information on 321-2027 decal

1шт.

Выбрано товаров: 25
