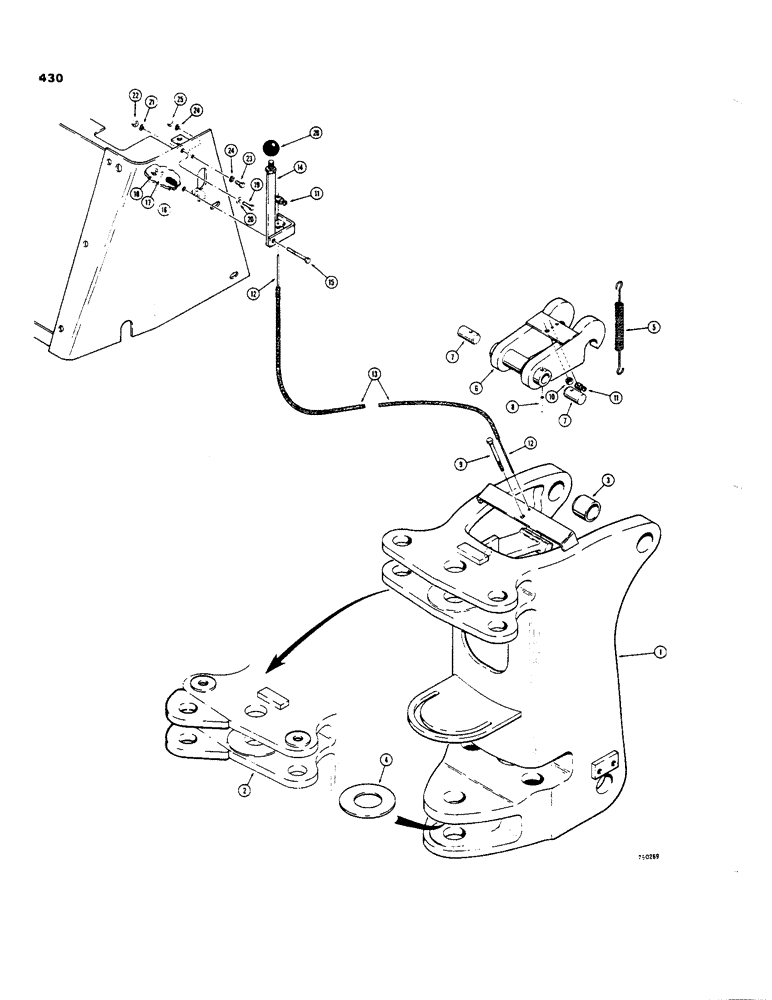

Запчасти Case 35 (430) - SIDE SHIFT BACKHOE, SWING TOWER & BOOM LOCK, LATE PRODUCTION

1

E31232

LATHE

TOWER - swing

1шт.

2

D68515

TOWER - swing, used on models sold in Japan only, Includes: Ref. 3 and 4

1шт.

3

D49429

BUSHING

- pivot, boom cylinder

2шт.

4

D50132

SPACER,57.15mm ID x 114.3mm OD x 7.94mm L

- mounting frame to swing tower

1шт.

5

D63988

SPRING

- return, latch

1шт.

6

E31223

LEVER

LATCH - boom lock

1шт.

7

E19470

AXLE PIN

PIN - latch pivot

2шт.

8

135-359

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - roll, groove type, 1/4" diameter x 1-1/2"

2шт.

9

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16" - 18 NC x 3-1/4"

1шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

1шт.

11

L32208

CLAMP

COLLAR - cable

2шт.

12

E31231

CABLE

- boom lock

1шт.

13

E31230

SLEEVE

- cable protection

1шт.

14

E31219

LEVER

- boom lock

1шт.

15

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

16

A26691

SPRING

- tension

1шт.

17

92-5

LOCK WASHER,5/16"

WASHER - flat, 5/16"

1шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

1шт.

19

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

20

195-522

WASHER,5/16"

- flat, 3/8", zinc plated

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

23

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

25-104

NUT,1/4"-20, G5

1шт.

26

D59912

KNOB

- lever

1шт.
