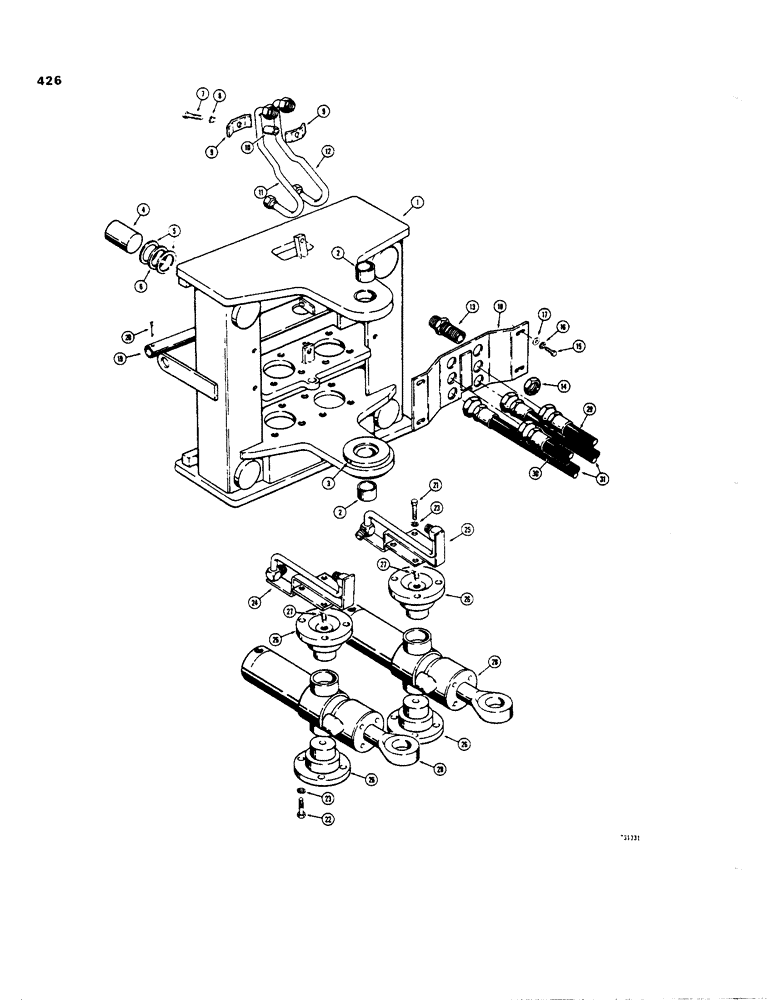

Запчасти Case 35 (426) - SIDE SHIFT BACKHOE FRAME AND RELATED PARTS, EARLY PRODUCTION

1

E18034

FRAME - side shirt, sliding portion, Includes: Ref. 2 and 3

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- pivot, swing tower

2шт.

3

D50132

SPACER,57.15mm ID x 114.3mm OD x 7.94mm L

WASHER - spacer

1шт.

4

E18071

PISTON ASSY.

PISTON - locking cylinder

4шт.

5

D35889

SEAL,76.2mm ID x 85.72mm OD x 2.39mm Thk

- backup, leather

8шт.

6

R13774

O-RING,0.21" Thk x 2.975" ID, -337, Cl 5, 75 Duro

-337, 70 Duro, 2.975" ID x .210" Thk, Locking pistons

4шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

D40236

CLAMP

-, Serial Range: tube-block

2шт.

10

D34244

SPACER

- tube

1шт.

11

E30170

TUBE

- valve to boom cylinder, rod end

1шт.

12

E30171

TUBE

- valve to boom cylinder, closed end

1шт.

13

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

6шт.

14

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - lock, bulkhead fitting

6шт.

15

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

16

92-7

LOCK WASHER,7/16"

4шт.

17

1795-7

WASHER - plain, 7/16"

4шт.

18

E18058

PLATE

SUPPORT - hoses at bulkhead fittings

1шт.

19

E18072

SUPPORT

TUBE - support

1шт.

20

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

21

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, - 1/2" - 13 NC x 2-1/4"

8шт.

22

NLS

NO LONGER SERVICED

BOLT - hex, 1/2" - 13 NC x 2"

8шт.

23

92-8

LOCK WASHER,1/2"

16шт.

24

E18064

SUPPORT

TUBE AND BRACKET - valve to LH swing cylinder, rod end

1шт.

25

E18061

SUPPORT

TUBE AND BRACKET - valve to RH swing cylinder, rod end

1шт.

26

D53647

PIVOT

PIN - trunnion, swing cylinder

4шт.

27

219-39

FITTING

GREASE FITTING - 45 degree, 1/8" NPT

4шт.

28

REF

INSTRUCTION

CYLINDER - hydraulic, swing, see Figures 272 - 290 for proper cylinder

2шт.

29

E18394

HOSE

- valve to dipper cylinder closed end, 66" (1676 mm) long

1шт.

30

E18393

HOSE

- valve to dipper cylinder, rod end, 73" (1754 mm) long

1шт.

31

E18392

HOSE

- valve to bucket cylinder, 81" (2057 mm) long

2шт.
