Запчасти Case 35 (422) - MOUNTING FRAME AND STABILIZERS, FOR SIDE SHIFT BACKHOE

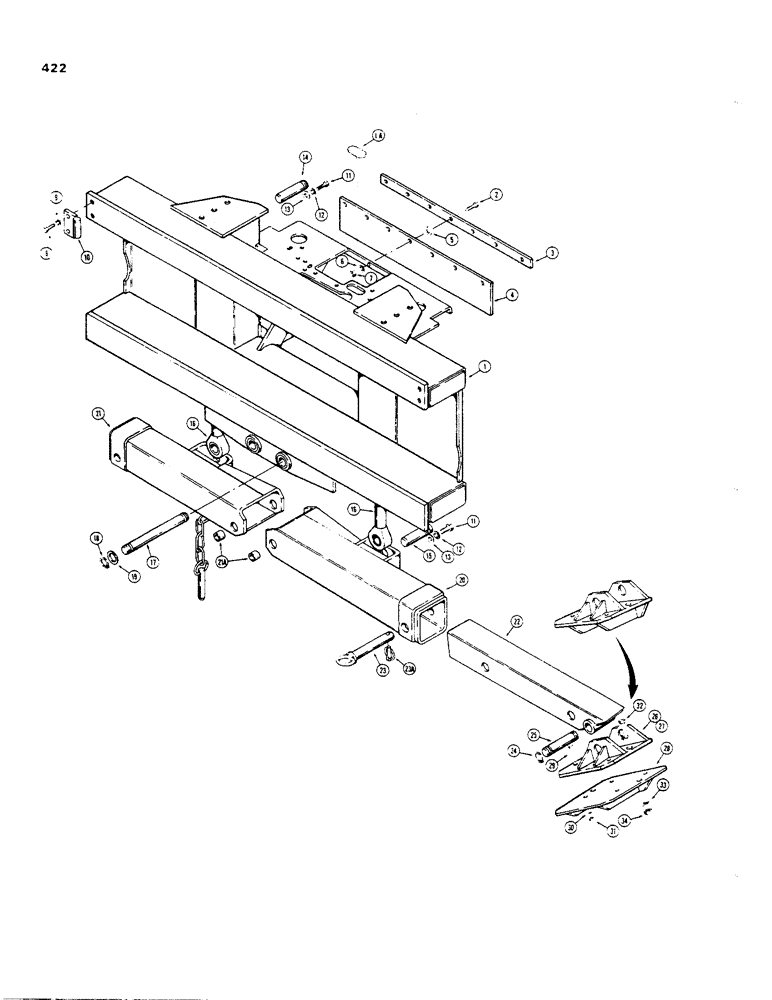

Схема запчастей Case 35 - (422) - MOUNTING FRAME AND STABILIZERS, FOR SIDE SHIFT BACKHOE

Артикул

Название

Примечание

Количество

1

D59233

FRAME - mounting, side shift backhoe, used before side shift backhoe, Serial Range: -525152

1шт.

1

D61827

FRAME - mounting, side shift backhoe, used side shift backhoe, Start Serial: 525152

1шт.

1a

S61125

PLUG - hole, welded into D58809 mounting frame

1шт.

2

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- machine, truss head, 1/4" - 20 NC x 3/4 ", zinc plated

9шт.

3

E18208

PLATE ASSY.

STRIP - plate retainer

1шт.

4

E18207

GUARD ASSY.

PLATE - cover, rear

1шт.

5

95-4

WASHER,1/4"

- plain, 1/4"

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

7

25-104

NUT,1/4"-20, G5

9шт.

8

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

D40456

STOP - side shift sliding frame

2шт.

11

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- retainer, pin

4шт.

14

D35675

AXLE PIN

PIN - mounting, stabilizer cylinder, upper

2шт.

15

D36710

PIN

- mounting, stabilizer cylinder, lower

2шт.

16

REF

INSTRUCTION

CYLINDER - hydraulic, stabilizer, parts list Figure 252

2шт.

17

D59014

PIN - stabilizer leg to side shift frame

2шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

19

T28060

WASHER

- special

2шт.

20

E31889

SHOE

LEG - stabilizer, LH, outer, includes (2) D37495 pushings

1шт.

21

E31888

STABILIZER

LEG - stabilizer, RH, outer, includes (2) D37495 pushings

1шт.

21a

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- stabilizer leg

4шт.

22

E30479

O-RING,20 mm ID

EXTENSION - stabilizer leg

2шт.

23

E31892

PIN

- lock, extension

2шт.

23a

D33805

PIN

- click

2шт.

24

D25279

SNAP RING,M35, Int

RING - pin retainer

4шт.

25

D26001

PIN

- stabilizer, Serial Range: foot-extension

2шт.

26

E30474

BRACKET

FOOT - stabilizer, RH, early production

1шт.

26a

E32935

PAD

FOOT - stabilizer, RH, late production

1шт.

27

E30475

BRACKET

FOOT - stabilizer, LH, early production

1шт.

27a

E32936

PAD

FOOT - stabilizer, LH, late production

1шт.

28

E30670

PAD

EXTENSION - stabilizer foot, used with E30474 and E30475 only

2шт.

29

14-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16" - 20 NF x 1-3/4", if used

8шт.

30

92-7

LOCK WASHER,7/16"

if used 7/16"

8шт.

31

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, if used

8шт.

32

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

If used Hex, 5/8"-11 x 2", G5

4шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , If used 5/8"

4шт.

34

25-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

4шт.

Выбрано товаров: 40
