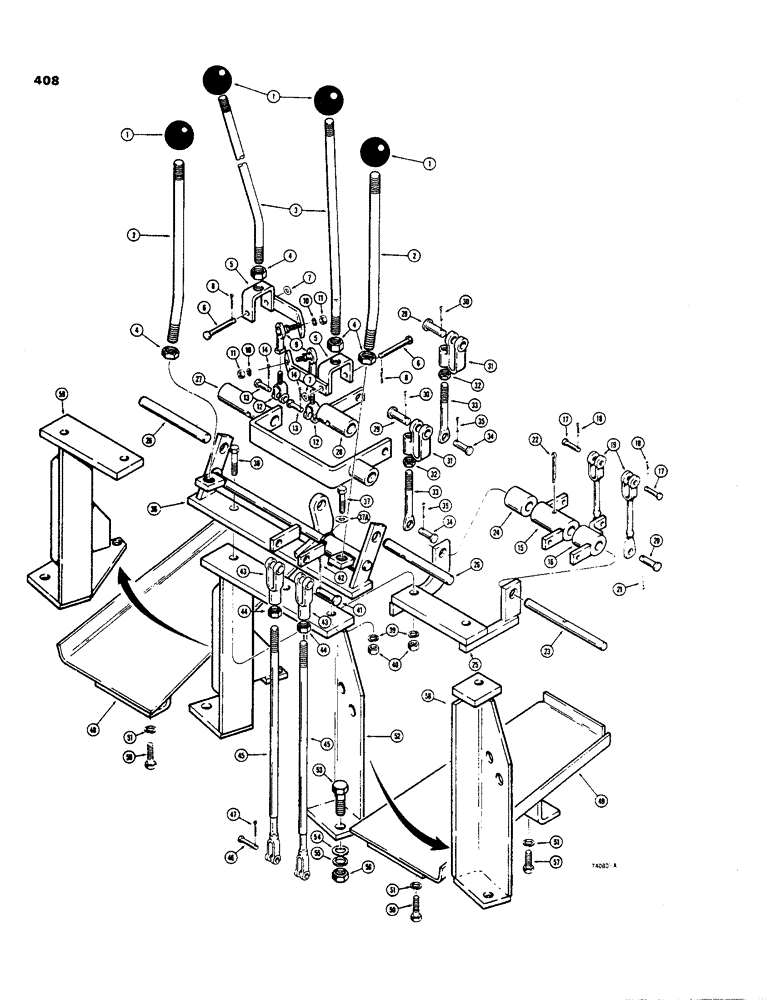

Запчасти Case 35 (408) - TWIN LEVER BACKHOE CNTRL, CASE & COMMERCIAL - CESSNA VALVES USED ON MDLS W/ BACKHOE SN 5222135 & AFT

1

D49996

KNOB

- control lever

4шт.

2

D52214

LEVER

- control, outer, stabilizer

2шт.

3

D52213

- control, inner, LH - boom and swing, RH - dipper and bucket

2шт.

4

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2" - 20 NF

4шт.

5

D52792

YOKE

- linkage, at control lever

2шт.

6

141-15

CLEVIS PIN,1/4" x 1.969"

PIN - clevis

2шт.

7

195-18

WASHER,1/4"

- plain, 1/4"

2шт.

8

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

9

D52241

BALL JOINT

JOINT ASSEMBLY - ball

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

2шт.

12

D52778

YOKE

- linkage, at rocker arm

2шт.

13

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

2шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

15

D52207

ARM

- rocker, LH

1шт.

16

D52208

ARM

- rocker, RH

1шт.

17

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, at rocker arm

2шт.

18

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

19

D55625

CLEVIS

- rocker arm to valve spool

2шт.

20

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , at valve spool 5/16" x .940"

2шт.

21

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

22

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

23

D52227

SHAFT

- front

1шт.

24

D52228

SPACER

TUBE - spacer, front shaft

1шт.

25

D56219

BRACKET

- front shaft

1шт.

26

D52226

SHAFT

- upper, two required with standard dipper - one required with extendable dipper

1-2шт.

27

D52205

ARM

- boom linkage

1шт.

28

D52209

ARM

- dipper linkage

1шт.

29

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

31

L11182

YOKE,3/8" - 24

- offset, linkage

2шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF

2шт.

33

D50415

ROD

- control linkage

2шт.

34

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

35

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

36

D56305

BRACKET

- control mounting

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

37a

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

39

92-6

LOCK WASHER,3/8"

3шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

42

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

43

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - stabilizer connecting rod

2шт.

44

25-116

NUT,Hex, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

2шт.

45

D56050

AXLE PIN

ROD - control, stabilizer

2шт.

46

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

47

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

48

D52197

TREAD

REST - foot, LH

1шт.

49

D52196

TREAD

REST - foot, RH

1шт.

50

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

51

92-6

LOCK WASHER,3/8"

6шт.

52

D56214

BRACKET

- valve mounting

1шт.

53

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

54

95-8

WASHER,1/2"

- plain 1/2"

3шт.

55

92-8

LOCK WASHER,1/2"

3шт.

56

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

57

61-632

HEX SOC SCREW,3/8"-16 x 2"

CAP SCREW - socket head, 3/8" - 16 NC x 2"

1шт.

58

D63188

BRACKET

MOUNTING - backhoe valve, RH, if used

1шт.

59

D63187

BRACKET

MOUNTING - backhoe valve, LH, if used

1шт.
