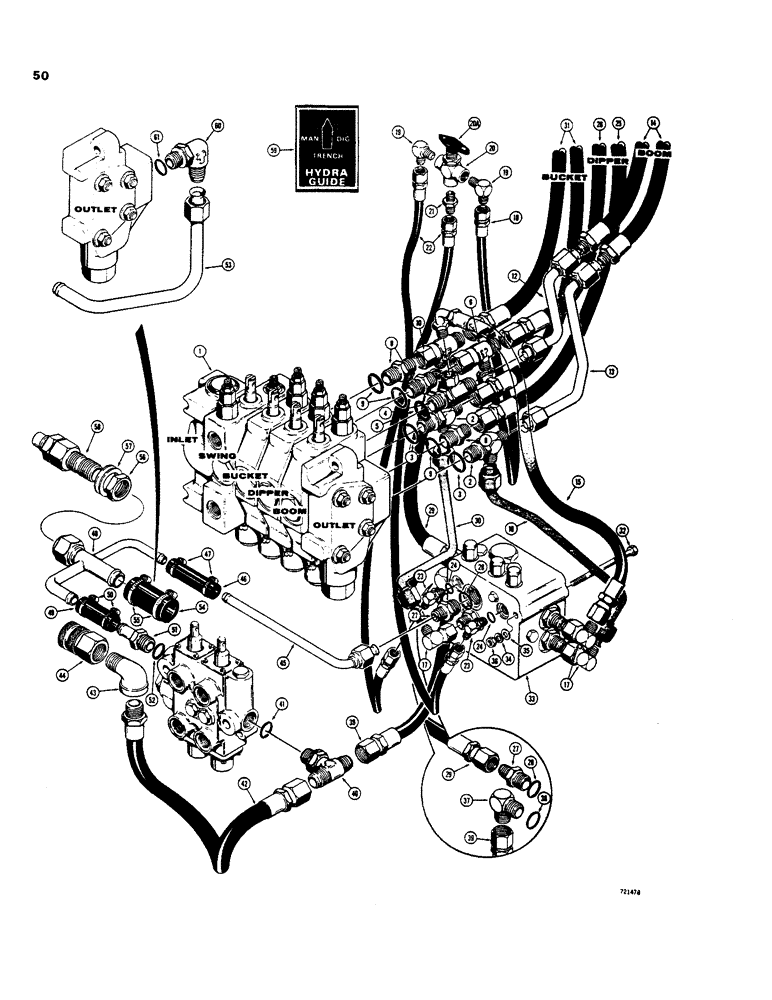

Запчасти Case 35 (050) - HYDRA-GUIDE CNTRLS, COMMERCIAL - CROSS VALVES, USED ON MDLS W/ BACKHOE SN 5219901 THRU 5222134

1

D50560

LOCK VALVE

VALVE - backhoe control, parts list Figure 180

1шт.

2

218-5295

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- adjustable, 90 degree, lower port of bucket and boom section, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

D55578

TEE - adjustable, special, upper port of boom section, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

- adjustable, 90 degree, upper port of dipper section

1шт.

7

RESERVED

1шт.

8

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, lower port of dipper section 3, Incl. Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

- adjustable, 90 degree upper port of bucket section

1шт.

11

RESERVED

1шт.

12

D55576

TUBE - valve to boom cylinder, upper port

1шт.

13

D55574

TUBE

- valve to boom cylinder, lower port

1шт.

14

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

- backhoe valve to boom cylinder, 38" (965 mm) long, see Figure 90 for related hydraulics

2шт.

15

D55136

HOSE ASSY.

HOSE - upper port of boom section to no. 7 port of control valve, 30" (762 mm) long

1шт.

16

54103

TUBE - lower port of boom section to no. 8 port of control valve

1шт.

17

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, swivel

3шт.

18

D54100

FLEXIBLE HOSE

HOSE - upper port of dipper section to no.1 port of selector valve, 23" (584 mm) long

1шт.

19

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree

2шт.

20

D55987

HOSE

VALVE - selector, Includes: Ref. 20A

1шт.

20a

57384

HANDLE - selector valve

1шт.

21

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, male

1шт.

22

D52711

HOSE

- no. 2 port of selector valve to no. 3 port of control valve; no. 3 port of selector valve to no 4. port of control valve, 32" (813 mm) long

2шт.

23

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- adjutable, 90 degree, Includes: Ref. 24

2шт.

24

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

25

D55988

HOSE

- hydraulic, lower port backhoe valve to dipper cylinder, 82" (2083 mm) long

1шт.

26

D55987

HOSE

- hydraulic, upper port backhoe valve to dipper cylinder 89" (2261 mm) long, see Figure 90 for related hydrualics

1шт.

27

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 28

2шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

29

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

Upper Port of Bucket Section to No. 5 Port of Control Valve 0.38" ID x 17.00", SAE 100R1

1шт.

30

D54107

TUBE

- lower port of bucket section to no.2 port of control valve

1шт.

31

D55989

HOSE,15.88mm ID x 2413mm L, SAE 100R2

- hydraulic, to bucket cylinder, 94" (2388 mm) long, see Figure 91 for related hydraulics

2шт.

32

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

33

D54561

VALVE

- Hydra-Guide, parts list Figure 166

1шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

195-25

WASHER,3/8"

- plain, 3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

37

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, no. 6 port control valve, Incl. Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

39

74785

HOSE ASSY.

HOSE - no, 6 port of control valve to stabilizer valve inlet 12" (305 mm) long

1шт.

40

218-5502

TEE,1 5/16"-12, 37 Degree x1 1/16"-12 x 1 1/16"-12, O-Ring Br

- adjustable, stabilizer valve inlet, Includes: Ref. 41

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

42

D52667

HOSE

- hydraulic, pressure, 36" (914 mm) long

1шт.

43

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Hydraulic, pressure, 36" (914 mm) long 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

44

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, parts list Figure 162

1шт.

45

D55572

TUBE - no. 1 port of control valve to backhoe return tee

1шт.

46

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Tube to Return Tee 12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

47

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

48

D55557

U-JOINT SPIDER

TUBE - "T", backhoe return

1шт.

49

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Stabilizer Valve Return to Backhoe Return 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

50

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

51

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

HOSE - stem, at stabilizer return, Includes: Ref. 52

1шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

53

D55362

TUBE - return, backhoe control valve to "T" tube

1шт.

54

32798

HOSE

- return, 6" (152 mm) long

1шт.

55

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

56

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12, Disconnect

1шт.

57

195-2131

WASHER,1 3/8" x 2" x .065"

- plain, 1-3/8" ID x 2 OD

2шт.

58

D52673

COUPLING, BREAK AWAY

COUPLING - quick diconnect, male half, parts list Figure 162

1шт.

59

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable

1шт.

60

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 61

1шт.

61

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
