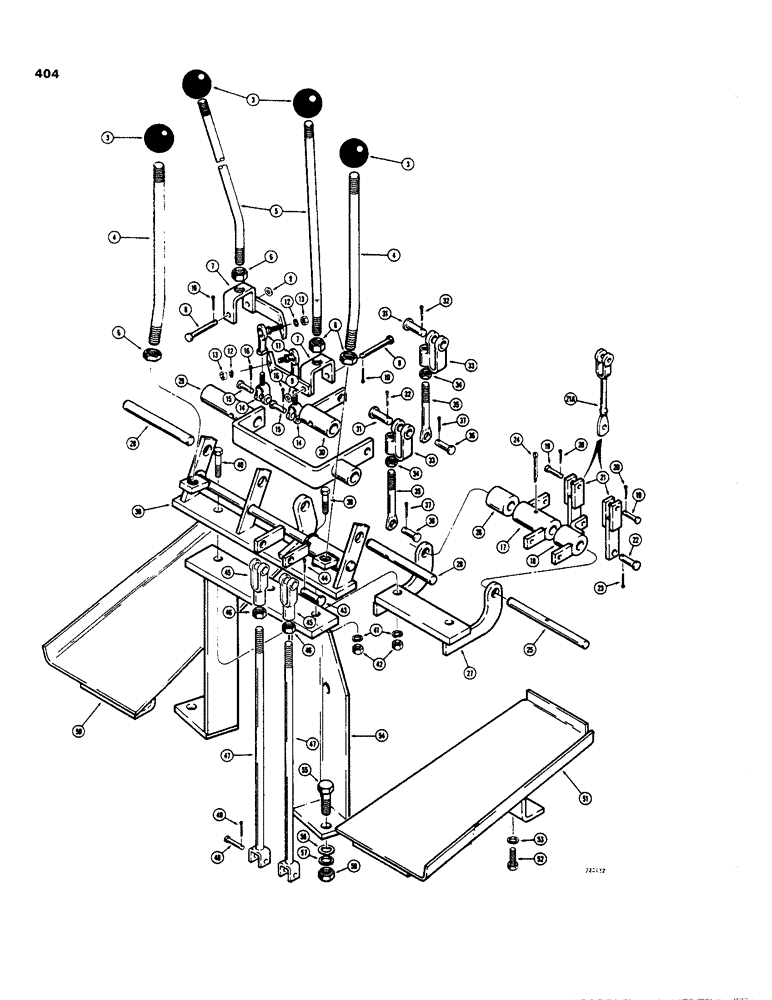

Запчасти Case 35 (404) - TWIN LEVER BACKHOE CNTRL, COMMERCIAL - CROSS VALVES, USED ON MDLS W/ BACKHOE SN 5203801 THRU 5222134

1

REF

INSTRUCTION

CONSOLE - backhoe control, not shown, parts list Figures 396 - 402

1шт.

2

321-2542

DECAL

- operator information, see Figures 478 and 490, not shown

1шт.

3

D49996

KNOB

- control lever

4шт.

4

D52214

LEVER

- control, outer, stabilizer

2шт.

5

NLS

NO LONGER SERVICED

- control, inner, LH - boom and swing, RH - dipper and bucket

2шт.

6

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2" - 20 NF

4шт.

7

D52792

YOKE

- linkage, at control lever

2шт.

8

141-15

CLEVIS PIN,1/4" x 1.969"

PIN - clevis

2шт.

9

195-18

WASHER,1/4"

- plain, 1/4"

2шт.

10

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

11

D52241

BALL JOINT

JOINT ASSEMBLY - ball

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

2шт.

14

D52778

YOKE

- linkage, at rocker arm

2шт.

15

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

2шт.

16

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

17

D52207

ARM

- rocker, LH

1шт.

18

D52208

ARM

- rocker, RH

1шт.

19

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, at rocker arm

2шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

21

D52795

CLEVIS

- rocker arm to valve spool, when stock is exhausted order D55625 for service

2шт.

21a

D55625

CLEVIS

- rocker arm to valve spool

2шт.

22

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , at valve spool 5/16" x .940"

2шт.

23

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

24

132-94

PIN

- cotter, 3/16" x 1-3/8"

1шт.

25

D52227

SHAFT

- front

1шт.

26

D52228

SPACER

TUBE - spacer, front shaft

1шт.

27

D56219

BRACKET

- front shaft

1шт.

28

D52226

SHAFT

- upper

2шт.

29

D52205

ARM

- boom linkage

1шт.

30

D52209

ARM

- dipper linkage

1шт.

31

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

32

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

33

L11182

YOKE,3/8" - 24

- offset, linkage

2шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

2шт.

35

D50415

ROD

- control linkage

2шт.

36

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

37

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

38

D56305

BRACKET

- control mounting

1шт.

PREVIOUS BRACKET D52195 REV. A AND B

1шт.

Illustration Ref. C has the center bar on Ref. 38 removed .

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

40

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - NC x1 - 1/2"

2шт.

41

92-6

LOCK WASHER,3/8"

3шт.

42

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

43

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

44

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

45

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - stabilizer connecting rod

2шт.

46

25-116

NUT,Hex, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

2шт.

47

D50410

ROD - control, stabilizer

2шт.

48

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN - clevis

2шт.

49

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

50

D52197

TREAD

REST - foot, LH

1шт.

51

D52196

TREAD

REST - foot, RH

1шт.

52

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

53

92-6

LOCK WASHER,3/8"

6шт.

54

D50567

BRACKET

- valve mounting

1шт.

55

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

56

195-33

WASHER,1/2"

- plain, 1/2"

2шт.

57

92-8

LOCK WASHER,1/2"

2шт.

58

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.
