Запчасти Case 35 (402) - BACKHOE CNTRL TOWER, CASE - CESSNA VALVES, USED ON MDLS W/ BACKHOE SN 5251151 & AFT

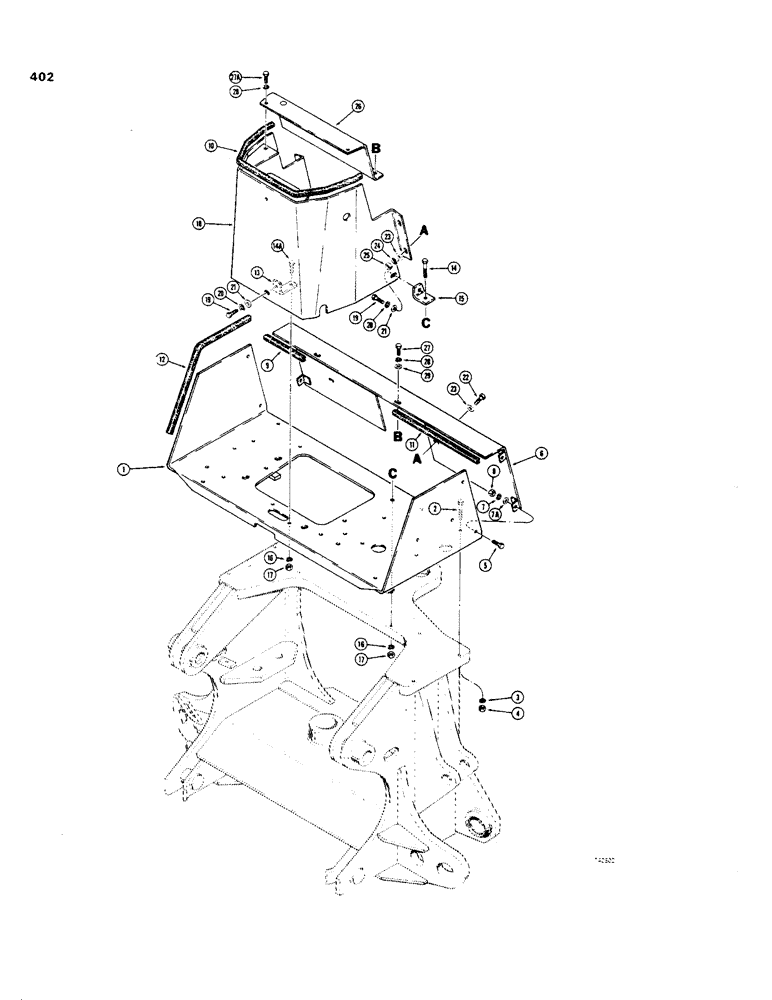

Схема запчастей Case 35 - (402) - BACKHOE CNTRL TOWER, CASE - CESSNA VALVES, USED ON MDLS W/ BACKHOE SN 5251151 & AFT

Артикул

Название

Примечание

Количество

1

D60127

PLATE AND FOOT SHIELDS- mounting frame, top

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

D60177

PANEL - front, console and foot shields

1шт.

7

92-6

LOCK WASHER,3/8"

4шт.

7a

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

9

D60179

RUBBER STRIP

GUARD - edge, 6-1/2" long, cut from D52812

1шт.

10

D52240

GUARD - edge, 29" long, cut from D52812

1шт.

11

D60180

STRIP

GUARD - edge, 14-1/2" long, cut from D52812

1шт.

12

D35424

LINING

GUARD - edge, 16" long, cut from D52812

2шт.

13

D52697

STRAP

ANGLE - center panel anchor

1шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14a

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" 16 NC x 1 - 1/2"

1шт.

15

D50287

SUPPORT

BRACKET - mounting, center panel

2шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

18

D60181

PANEL ASSY.

PANEL - console, center

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

195-25

WASHER,3/8"

- plain, 3/8"

3шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

23

195-25

WASHER,3/8"

- plain, 3/8"

8шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

26

D60174

PANEL - console, top

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27a

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8" - 16 NC x 1/2"

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

195-25

WASHER,3/8"

- plain, 3/8"

2шт.

Выбрано товаров: 32
