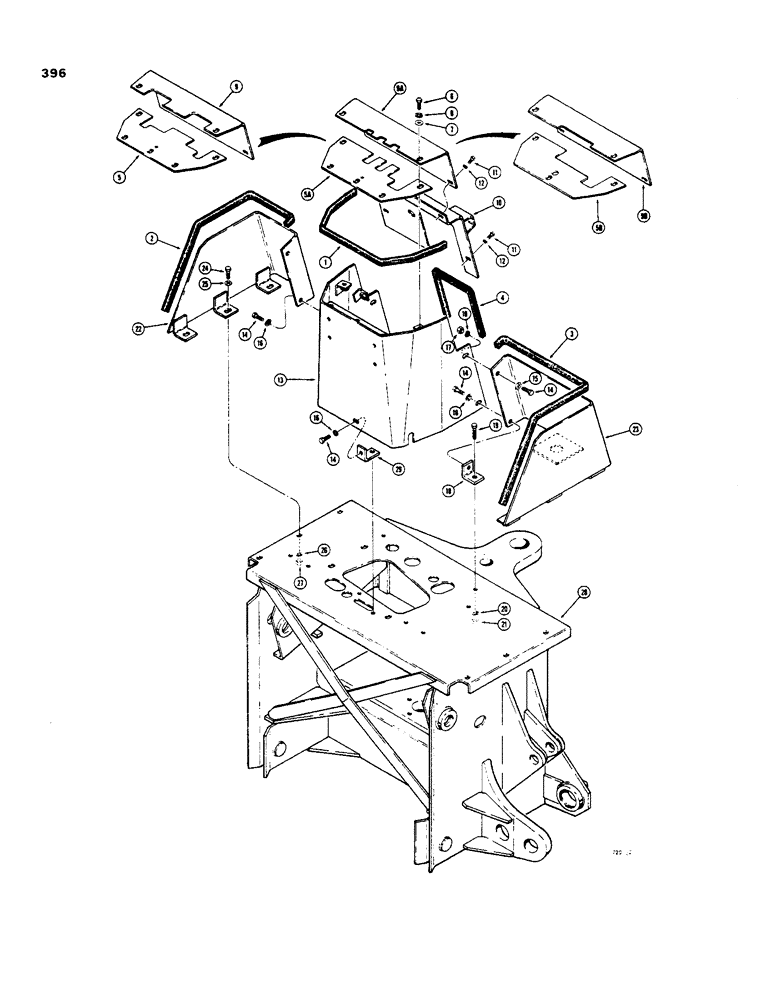

Запчасти Case 35 (396) - BACKHOE CNTRL TOWER, W/ SINGLE PIECE WELDED SWING PEDAL GUARDS COMMERCIAL-CROSS VALVES

1

D52240

TRIM - protection, quickedge, 29" long, console top, cut from D52812

1шт.

2

D50352

LINING

TRIM - protection, quickedge, 30" long, LH panel, cut from D52812

1шт.

3

D50659

TRIM - protection, quickedge, 38" long, RH panel, cut from D52812

1шт.

4

D47936

LINING

TRIM - protection, quickedge, 24" long, front panel, cut from D52812

1шт.

5

D52199

FLEXIBLE HOSE

PLATE - console top, twin lever control

1шт.

5a

D55285

PLATE

- console top, individual lever control, early production

1шт.

5b

D55285

PLATE

- console top, individual lever control, late production

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

7

195-25

WASHER,3/8"

- plain, 3/8"

5шт.

8

92-6

LOCK WASHER,3/8"

5шт.

9

D52198

PANEL - top, front, twin lever control

1шт.

9a

D55284

PANEL

- top, front, individual lever control, early production

1шт.

9b

D55284

PANEL

- top, front, individual lever control, late production

1шт.

10

D50676

PANEL ASSY.

PANEL - bottom, front

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

D50349

PANEL - center

1шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

15

195-25

WASHER,3/8"

- plain, 3/8"

2шт.

16

92-6

LOCK WASHER,3/8"

5шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

D50287

SUPPORT

BRACKET - angle, center panel

2шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

22

D50346

PANEL

GUARD PANEL - LH control tower, order Refs. 26 and 28 from Figure 398, plug hardware

1шт.

23

D50345

PANEL

GUARD PANEL - RH control tower, order Refs. 25 and 27 from Figure 398, plus hardware

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

25

195-25

WASHER,3/8"

- plain, 3/8"

6шт.

26

92-6

LOCK WASHER,3/8"

6шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

28

REF

INSTRUCTION

FRAME - backhoe mounting, see Figures 312 - 358 for related parts

1шт.

29

D52697

STRAP

ANGLE - center panel anchor

1шт.
