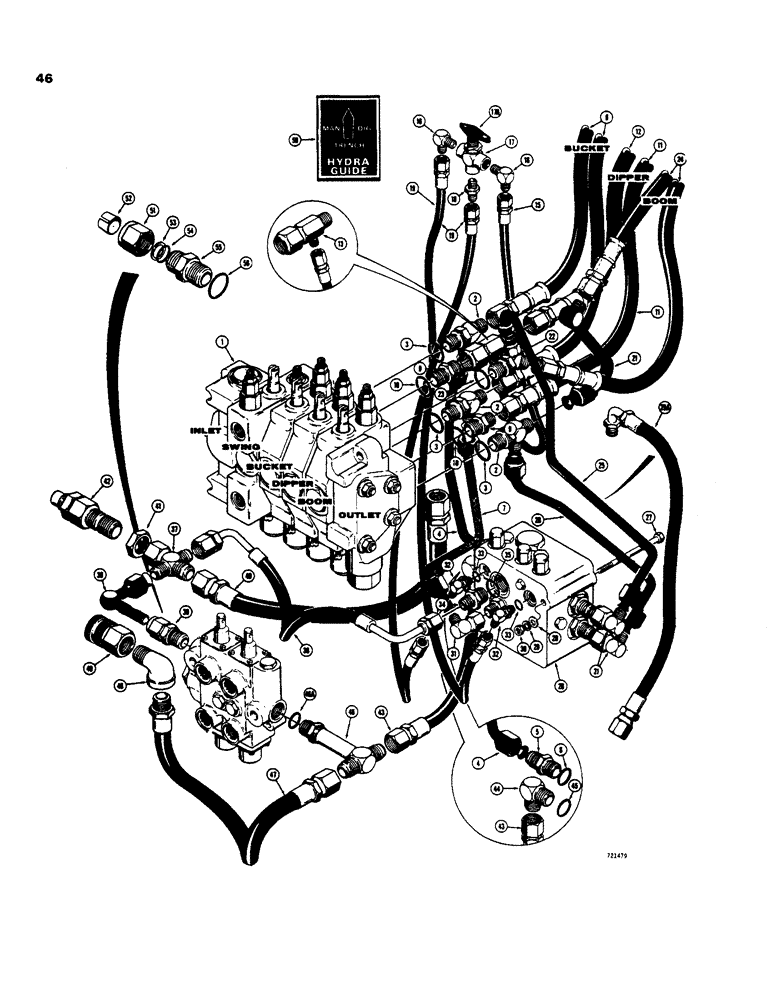

Запчасти Case 35 (046) - HYDRA-GUIDE CNTRLS, COMMERCIAL - CROSS VALVES, USED ON MDLS W/ BACKHOE SN BEF 5219901

1

D50560

LOCK VALVE

VALVE - backhoe control, parts list Figure 180

1шт.

2

218-5295

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- adjustable, Includes: Ref. 3

3шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

D54109

TUBE

- upper port of backhoe valve bucket section to Hydra-Guide valve

1шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, staright, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

D54107

TUBE

- lower port of backhoe valve bucket section to Hydra-Guide valve

1шт.

8

D55989

HOSE,15.88mm ID x 2413mm L, SAE 100R2

- hydraulic, to bucket cylinder, 94" (2388 mm) long, see Figure 86 for connecting hydraulics

2шт.

9

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 10

2шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

D55988

HOSE

- hydraulic, lower port backhoe valve to dipper cylinder, 82" (2083 mm) long

1шт.

12

D55987

HOSE

- hydraulic, upper port backhoe valve to dipper cylinder, 89" (2261 mm) long, see Figure 86 for connecting hydraulics

1шт.

13

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

- special, swivel

1шт.

14

RESERVED

1шт.

15

D54100

FLEXIBLE HOSE

HOSE - hydraulic, upper port of backhoe valve dipper section to selector valve, 23" (584 mm) long

1шт.

16

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

2шт.

17

D55981

LOCK VALVE

VALVE - selector

1шт.

17a

D57384

HANDLE - selector valve

1шт.

18

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, male

1шт.

19

D52711

HOSE

- hydraulic, selector valve to Hydra-Guide valve 32" (813 mm) long

2шт.

20

D54103

TUBE

- lower port of backhoe valve boom section to Hydra-Guide valve

1шт.

21

D54977

TUBE

- lower port, backhoe valve, not used on boom lock models

1шт.

22

D54114

ELBOW UNION

TEE - adjustable, 45 degree, Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

D50383

HOSE

- hydraulic, backhoe valve to boom cylinder, 38" (965mm)long see Figure 86 for connecting parts

2шт.

25

D54101

TUBE

- upper port of backhoe valve dipper section to Hydra-Guide valve, for service, order D55136 hose

1шт.

25a

D55136

HOSE ASSY.

HOSE - upper port of backhoe valve dipper section to Hydra-Guide valve, for service, order section to hydra-Guide valve, 30" (762 mm) long

1шт.

26

D54561

VALVE

- Hydra-Guide, parts list Figure 166

1шт.

27

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

28

195-25

WASHER,3/8"

- plain, 3/8"

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

31

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, swivel

3шт.

32

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adjustable, Includes: Ref. 33

2шт.

33

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

34

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Includes: Ref. 35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

D52716

HOSE ASSY.

HOSE - Hydra-Guide to backhoe return 18" (457 mm) long

1шт.

37

D54111

CROSS

- swivel

1шт.

38

D52669

TUBE

- return from stabilizer valve

1шт.

39

222-3024

CONNECTOR, ELEC,1 1/8"-12 x 1 1/16"-12

CONNECTOR - male, parts list below

1шт.

40

D50390

HOSE

- hydraulic from backhoe valve, 19-1/2" (496 mm) long

1шт.

41

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12, Coupling

1шт.

42

D52673

COUPLING, BREAK AWAY

COUPLING - quick disconnect, parts list Figure 162

1шт.

43

D54105

HOSE

- hydraulic, Hydra-Guide valve to stabilizer valve, 13-1/2" (343 mm) long

1шт.

44

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 45

1шт.

45

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

46

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

TEE - Special, Includes Ref 46A

1шт.

46a

2185008

O-RING

1шт.

47

D52667

HOSE

- hydraulic, pressure, 36" (914 mm) long

1шт.

48

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

49

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, parts list Figure 162

1шт.

50

321-2057

DECAL

- selector valve instuctions

1шт.

222-3024

CONNECTOR, ELEC,1 1/8"-12 x 1 1/16"-12

CONNECTOR ASSEMBLY - tube, stabilizer valve return, Includes: Ref. 51 - 56

1шт.

51

222-3111

TUBE NUT,1"-12

NUT - hex, tube

1шт.

52

222-3105

SLEEVE,1" Tube

- tube connector

1шт.

53

D54295

RING

- back, inner O-ring seal

1шт.

54

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- inner

1шт.

55

NSS

NOT SOLD SEPARAT

BODY - connector, tube

1шт.

56

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- outer

1шт.
