Запчасти Case 35 (378) - HYDRAULIC EXTENDABLE DIPPER, FOUR FOOT EXTENSION MECHANICAL PARTS USED BEF BACKHOE SN 5288692

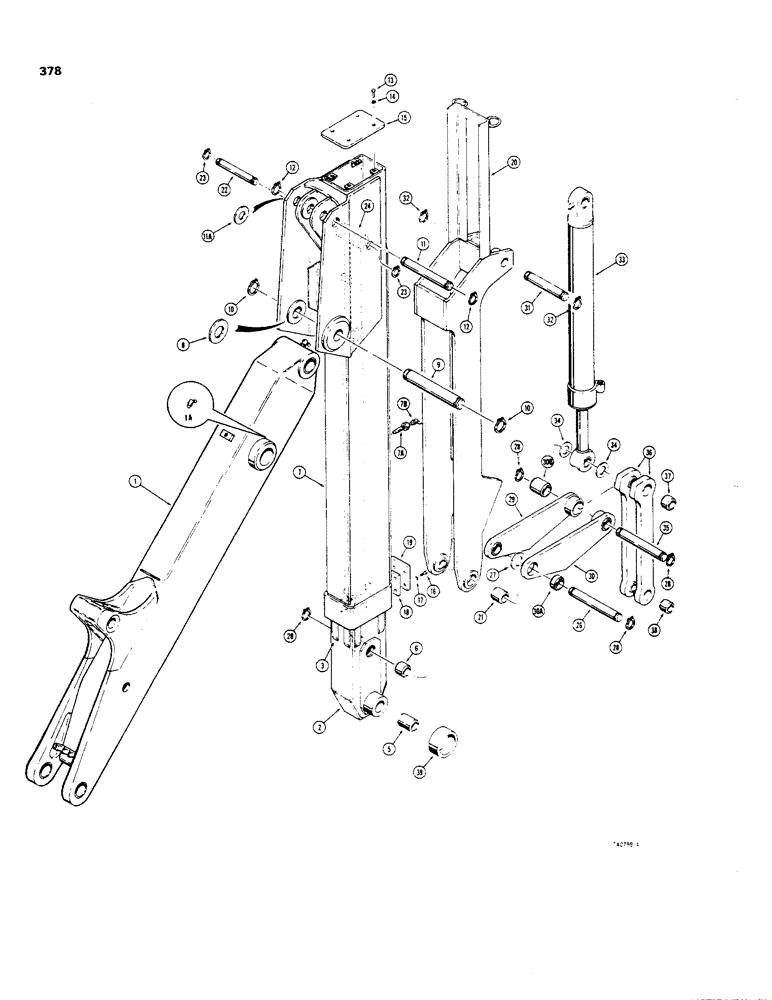

Схема запчастей Case 35 - (378) - HYDRAULIC EXTENDABLE DIPPER, FOUR FOOT EXTENSION MECHANICAL PARTS USED BEF BACKHOE SN 5288692

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BOOM - backhoe, see Figure 372 for boom

1шт.

1a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

2

D55727

ARM

DIPPER ARM ASSEMBLY - extension, Includes: Ref. 3 - 6

1шт.

D16615

STRIP

KIT - wear strip, 4 foot extendahoe, use Ref. 3, 7A, and 1A, Includes: Ref. 3 and 4

2шт.

3

D55688

STRIP

WEAR STRIP - dipper slide, steel

4шт.

4

RESERVED

1шт.

5

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper arm, at bucket

2шт.

6

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper arm, at bucket link

2шт.

7

D57385

KIT

SLIDE - extendable dipper, includes (2) D46405 bushings, 3/4" and if used, (2) D34340 bushings, 1" long, for service D61519 dipper housing kit, D61744 extension assembly, D61701 plate and plate mounting hardware, also (1) D37611

1шт.

7a

219-107

NOZZLE CAP

NOZZLE - extension, grease fitting, 40 used

1шт.

7b

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

1шт.

8

D53561

BUSHING

SPACER - dipper, Serial Range: slide-boom

2шт.

9

D45034

PIN

- dipper, Serial Range: slide-boom

1шт.

10

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

11

D53818

PIN,44.45mm OD x 278.89mm L

- dipper cylinder to dipper slide

1шт.

11a

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat 1-3/4" ID

4шт.

12

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

14a

95-6

WASHER,3/8"

- plain, 3/8, if used, not illustrated

4шт.

15

D52537

COVER ASSY

COVER - end, dipper side

1шт.

16

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

D75425

STOP

SPACER - extension stop

1шт.

19

D52631

STOP

- dipper extension

1шт.

20

D52562

ARM

EXTENSION ASSEMBLY - dipper, welded guide plate, for models with bolt on guide plates see reference number 19 Figure 380, Includes: Ref. 21

1шт.

21

D52521

BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L

- bucket link pin

2шт.

22

D44882

PIN,38.1mm OD x 203.2mm L

- extension, Serial Range: cylinder-slide

1шт.

23

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

24

REF

INSTRUCTION

CYLINDER - hydraulic, dipper extension, parts list Figure 314 - 320

1шт.

25

RESERVED

1шт.

26

D53818

PIN,44.45mm OD x 278.89mm L

- dipper and dipper extension to bucket links

1шт.

27

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- plain, bucket link to extension

1шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

29

D61088

LINK

- dipper and extension to dump links, LH

1шт.

30

D61087

LINK

- dipper and extension to dump links, RH, Includes: Ref. 30A and 30B

1шт.

30a

46405

BUSHING - link, at dipper arm

1шт.

30b

42788

PUMP

BUSHING - link, at bucket cylinder

1шт.

31

D56570

PIN

- bucket cylinder to dipper extension

1шт.

32

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

33

REF

INSTRUCTION

CYLINDER - hydraulic, bucket, parts list Figure 306 - 312

1шт.

34

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- plain, bucket cylinder to links

1шт.

35

D53818

PIN,44.45mm OD x 278.89mm L

- bucket, Serial Range: cylinder-links

1шт.

36

D50157

LINK

- bucket dump, Includes: Ref. 37 and 38

2шт.

37

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- link, at cylinder

1шт.

38

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket

1шт.

39

D52578

BUSHING

SPACER - dipper arm to bucket, if used

2шт.

Выбрано товаров: 47
