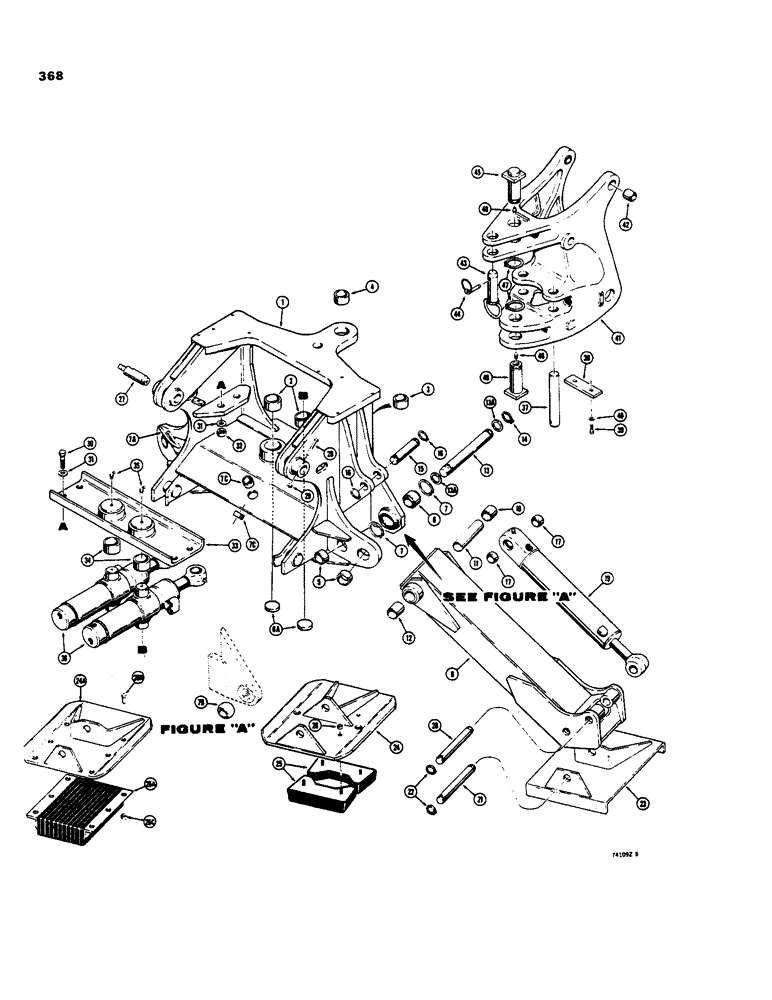

Запчасти Case 35 (368) - MOUNTING FRAME AND STABILIZERS, CASE-CESSNA VALVES, USED ON MDLS W/ BACKHOE SN 5251151 & AFT

1

D60000

FRAME - backhoe mounting, order, (2), D60803 inner races, reference no. 7B also, (1), 41-1032 plug, reference no. 7 C, Includes: Ref. 2 - 7A

1шт.

2

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame, at swing tower, lower

1шт.

4

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- frame, at swing tower, upper

1шт.

5

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- stabilizer anchor, press-in type

4шт.

6

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

BUSHING - stabilizer anchor, pivot ball type, before backhoe, Serial Range: -5274798

2шт.

THE WELDMENT THAT ITEM 6 GOES INTO IS PART NO. D60846 RACE OUTER.

1шт.

6a

41-1044

PLUG,Cup, 2 3/4"

- cup

2шт.

7

F61018

SNAP RING,M73, Int

Ring, Snap, , pivotal ball bushing, before backhoe 2.812", Int, #281, Serial Range: -5274798

4шт.

7a

D61298

GUIDE

- hose

1шт.

7b

D60803

BUSHING,44.42mm ID x 63.75mm OD

RACE - inner, stabilizer anchor, backhoe, Start Serial: 5274798

2шт.

7c

41-1032

PLUG,Cup, 2"

- core hole, 2" diameter, backhoe, Start Serial: 5274798

1шт.

8

D50292

SUPPORT ASSY.

LEG - stabilizer, RH, Includes: Ref. 10, 11 and 12

1шт.

9

D50293

SUPPORT ASSY.

LEG - stabilizer, LH Includes: Ref. 10,11 and 12 not shown

1шт.

10

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- leg to frame, 1-1/4" (31 mm) long

1шт.

11

D54013

SPACER,50.7mm ID x 53.98mm OD x 140.72mm L

SPACER - bushing

1шт.

12

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- leg to frame, 2" (51 mm) long

1шт.

13

D67308

PIN,44.4mm OD x 344.17mm L

- stabilizer, Serial Range: leg-frame

2шт.

13a

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4"

2шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

15

D29483

PIN,38.1mm OD x 146.05mm L

- stabilizer, Serial Range: cylinder-frame

2шт.

16

D25279

SNAP RING,M35, Int

RING - pin retaining

4шт.

17

D50337

BUSHING,38.91mm ID x 44.45mm OD x 14.22mm L

SPACER -, Serial Range: cylinder-frame

4шт.

18

REF

INSTRUCTION

CYLINDER - hydraulic, LH stabilizer, not shown, see Figures 252 - 268

1шт.

19

REF

INSTRUCTION

CYLINDER - hydraulic, RH stabilizer, see Figures 252 - 268

1шт.

20

D50695

PIN,38.1mm OD x 195.33mm L

- stabilizer, Serial Range: cylinder-leg

2шт.

21

D50696

PIN,38.1mm OD x 225.55mm L

- stabilizer, Serial Range: foot-leg

2шт.

22

D25279

SNAP RING,M35, Int

RING - pin retaining

8шт.

23

D55473

PAD

FOOT - stabilizer, cleated, when stock is exhausted, order D64621 foot for service

2шт.

23

D64621

FOOT REST

FOOT - stabilizer, cleated

2шт.

24

D55478

FOOT

- stabilizer, street or cemetery pad, optional, uses D40469 pad

2шт.

24a

61376

FOOT - stabilizer, street or cemetery pad, optional, uses D61368 pad

2шт.

25

R31222

SHOE

PAD - rubber, D55478 foot, optional

4шт.

26

D29712

SPECIAL NUT

- hex, special

8шт.

26a

D61368

PAD

Rubber, D61376 stabilizer foot, optional

2шт.

26b

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

12шт.

26c

25-1012

NUT,3/4"-10, G5

12шт.

27

D56335

PIN

- tractor to backhoe mounting frame

2шт.

28

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

29

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC

2шт.

30

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

31

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, hardened

8шт.

32

25-1016

NUT,1"-8, G5

4шт.

33

D60169

CHANNEL

PLATE - retainer, swing cylinder, upper, Includes: Ref. 34

1шт.

34

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, upper

2шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

36

REF

INSTRUCTION

CYLINDER - hydraulic, swing, parts list Figures 272 - 288

2шт.

37

D49863

PIN,44.45mm OD x 248.92mm L

- swing, Serial Range: cylinder-tower

2шт.

38

D49864

PLATE

- pin retaining

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

D50134

LATHE

TOWER - swing, Includes: Ref. 42

1шт.

42

D49429

BUSHING

- at boom cylinder, closed end

2шт.

43

D49879

PIN

- swing locking

1шт.

44

D33805

PIN

- Klik

1шт.

45

D74004

PIN

- tower to frame, upper

1шт.

46

D74004

PIN

- tower to frame, lower

1шт.

47

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.
