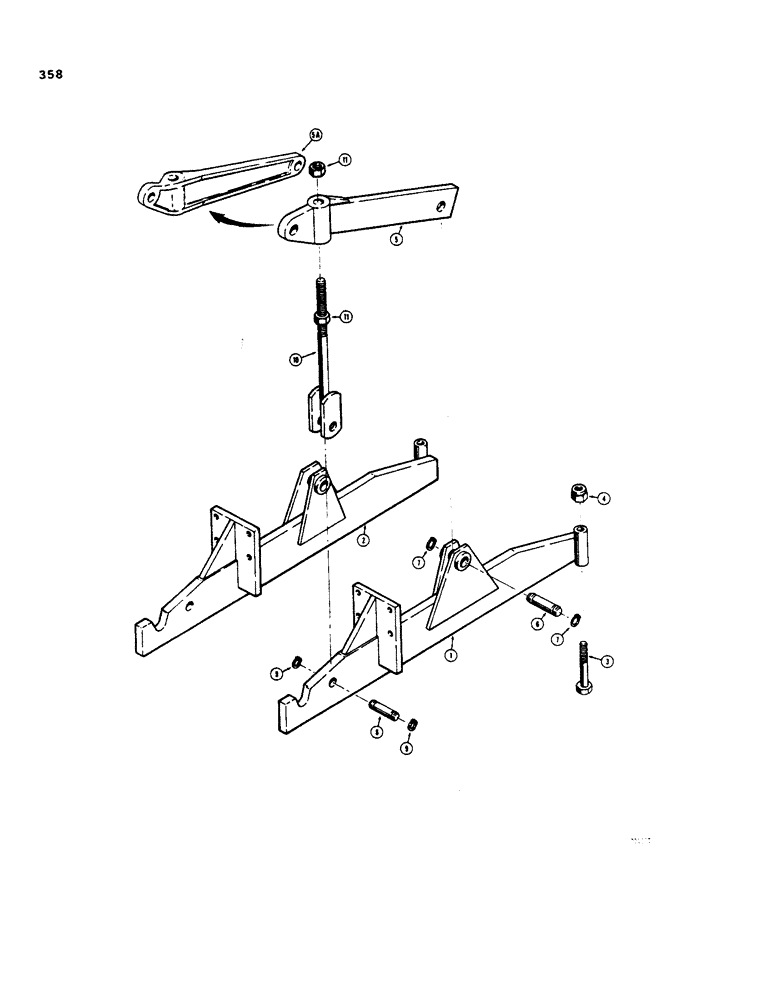

Запчасти Case 35 (358) - BACKHOE MOUNTING PARTS

1

D52180

ARM

SUPPORT ARM - lower, RH

1шт.

2

D52181

ARM

SUPPORT ARM - lower, LH

1шт.

3

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

- hex, 3/4" - 10 NC x 6-3/4 "

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, lock, 3/4" - 10 NC

2шт.

5

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

SUPPORT ARM - upper, fabricated type, use with (4) D58169

4шт.

If stock is exhausted of this fabricated arm the D58169 cast arm can be used if both are replaced. Do not mix cast and fabricated arms on same tractor.

1шт.

5a

D58169

ARM

SUPPORT ARM - upper, cast type, loader, Start Serial: 5264200

2шт.

6

D28037

AXLE PIN

PIN - arm mounting, upper

2шт.

7

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

8

D33816

PIN

- mounting, tension strap

2шт.

9

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

10

D54307

ROD

STRAP - tension

2шт.

11

25-1116

NUT,1"-14, G5

- hex, lock, 1" - 14 NF

4шт.
