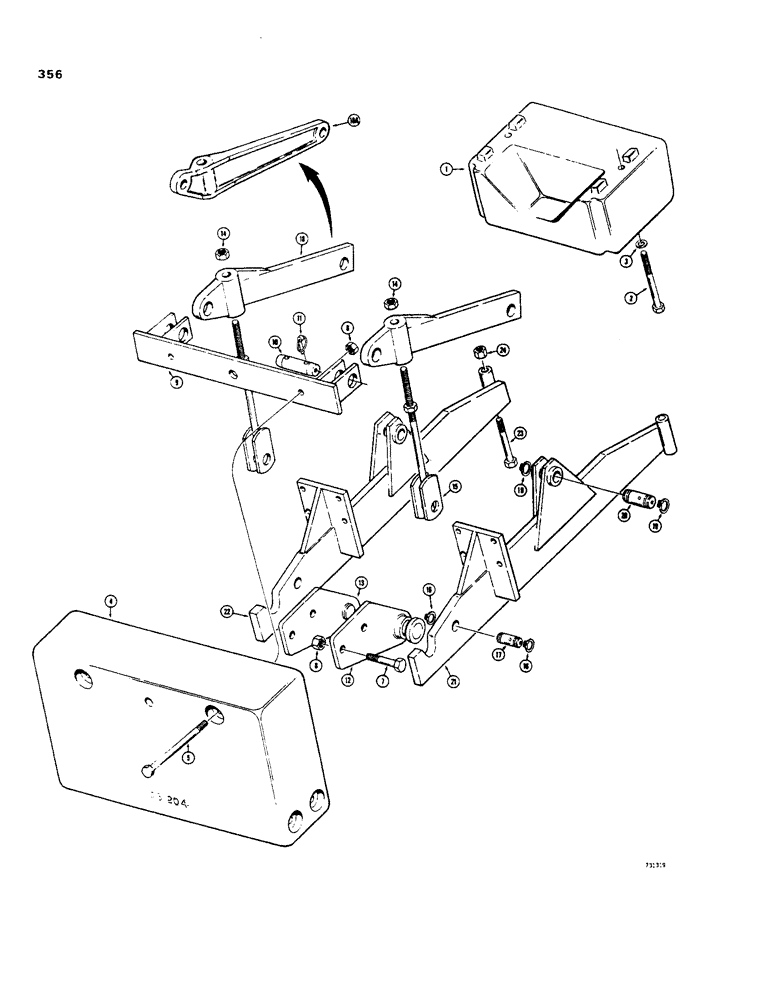

Запчасти Case 35 (356) - COUNTERWEIGHTS, USED ON STANDARD BACKHOE MODELS ONLY

1

D32736

WEIGHT

COUNTERWEIGHT - front mounted, 580 lbs (263 kg)

1шт.

2

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4" - 10 NC x 8-1/2"

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

2шт.

1

E12332

WEIGHT

COUNTERWEIGHT - front mounted, 720 lbs (327 kg), used w/ extendahoe models only

1шт.

2

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4" -10 NC x 8-1/2", front mounted counterweight used w/ extendahoe models only

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special, front mounted counterweight used w/ extendahoe models only

2шт.

4

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs (635 kg), quick detachable

1шт.

5

15-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

- hex, 1" - 8 NC x 10-1/2", quick detachable rear counterweight

2шт.

6

230-41116

NUT,1"-8, GA

NUT - hex, lock, 1" - 8 NC, quick detachable rear counterweight

2шт.

7

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

Quick detachable rear counterweight Hex, 1"-8 x 6 1/2", G5

4шт.

8

230-41116

NUT,1"-8, GA

NUT - hex, lock, 1" - 8 NC, quick detachable rear counterweight

4шт.

9

D50818

BRACKET

- quick detachable rear counterweight

1шт.

10

D49812

PIN,38.1mm OD x 137.16mm L

- bracket to upper support arm, quick detachable rear counterweight

2шт.

11

D33805

PIN

KLIK PIN - pin retaining, quick detachable rear counterweight

4шт.

12

D37134

ARM

SUPPORT ARM - lower, at , RH, quick detachable rear counterweight

1шт.

13

D37135

ARM

SUPPORT ARM - lower, at , LH, quick detachable rear counterweight

1шт.

14

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NC, quick detachable rear counterweight

4шт.

15

D54307

ROD

TENSION ROD - upper to lower support arm, quick detachable rear counterweight

2шт.

16

D26918

SNAP RING,#125, Ext

Ring, Snap, , quick detachable rear counterweight #125, Ext

4шт.

17

D33816

PIN

- tension rod to lower support arm, quick detachable rear counterweight

2шт.

18

D54311

ARM

SUPPORT ARM - Upper, fabricated type, quick detachable rear counterweight

2шт.

If stock is exhausted of this fabricated arm the D58169 cast arm can be used if both are replaced. Do not mix cast and fabricated arms on same tractor.

1шт.

18a

D58169

ARM

SUPPORT ARM - Upper, cast type, loader sn 5264200 and after, quick detachable rear counterweight

2шт.

19

D25279

SNAP RING,M35, Int

RING - retaining, pin, quick detachable rear counterweight

4шт.

20

D28037

AXLE PIN

PIN - upper support arm to frame, quick detachable rear counterweight

2шт.

21

D52180

ARM

SUPPORT ARM - lower, RH, quick detachable rear counterweight

1шт.

22

D52181

ARM

SUPPORT ARM - lower, LH, quick detachable rear counterweight

1шт.

23

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

- hex, 3/4" - 10 NC x 6-3/4 ", quick detachable rear counterweight

2шт.

24

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, lock, 3/4" - 10 NC, quick detachable rear counterweight

2шт.
