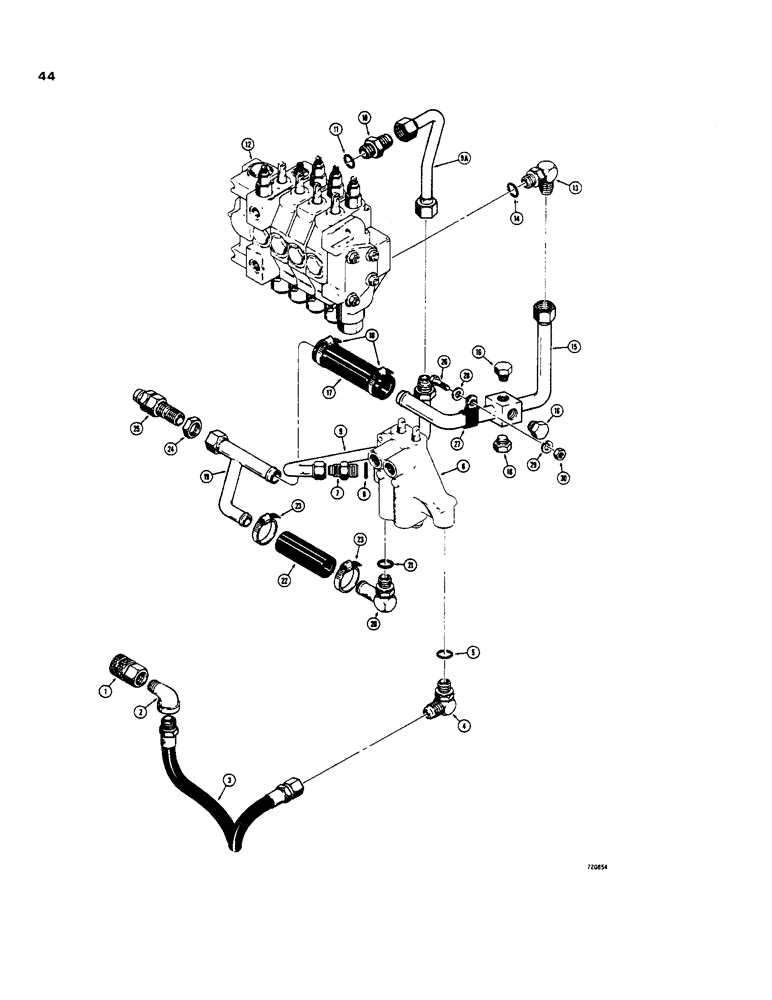

Запчасти Case 35 (044) - BACKHOE INTERMEDIATE HYDRUALICS, COMMERCIAL - CESSNA VALVES

1

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female half, parts list Figure 162

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street (991 mm) long 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

3

D56094

HOSE

- pressure line to stabilizer valve, 39" (991 mm) long

1шт.

4

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 5 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - stabilizer control, see Figure 74 related parts and Figure 212 for component parts

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, staright, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

D56164

TUBE

- stabilizer to backhoe control valve, lower

1шт.

9a

D55548

TUBE

- stabilizer to backhoe control valve, upper

1шт.

10

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male straight, Incl. Ref. 11

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

D50560

LOCK VALVE

VALVE - backhoe control. see Figure 76 for related parts and Figure 180 for component parts

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

D56257

TUBE

- return, backhoe control valve to tube "Y"

1шт.

16

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT

3шт.

17

32798

HOSE

- return, backhoe valve

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

19

D56124

TUBE

- return, "Y" type

1шт.

20

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

HOSE STEM - 90 degree, stabilizer control valve to tube "Y", Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

D24728

HOSE

- return, stabilizer valve

1шт.

23

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

24

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12, Disconnect

1шт.

25

D52673

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male half, parts list Figure 162

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

27

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- return, tube

1шт.

28

195-24

WASHER,5/16"

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
