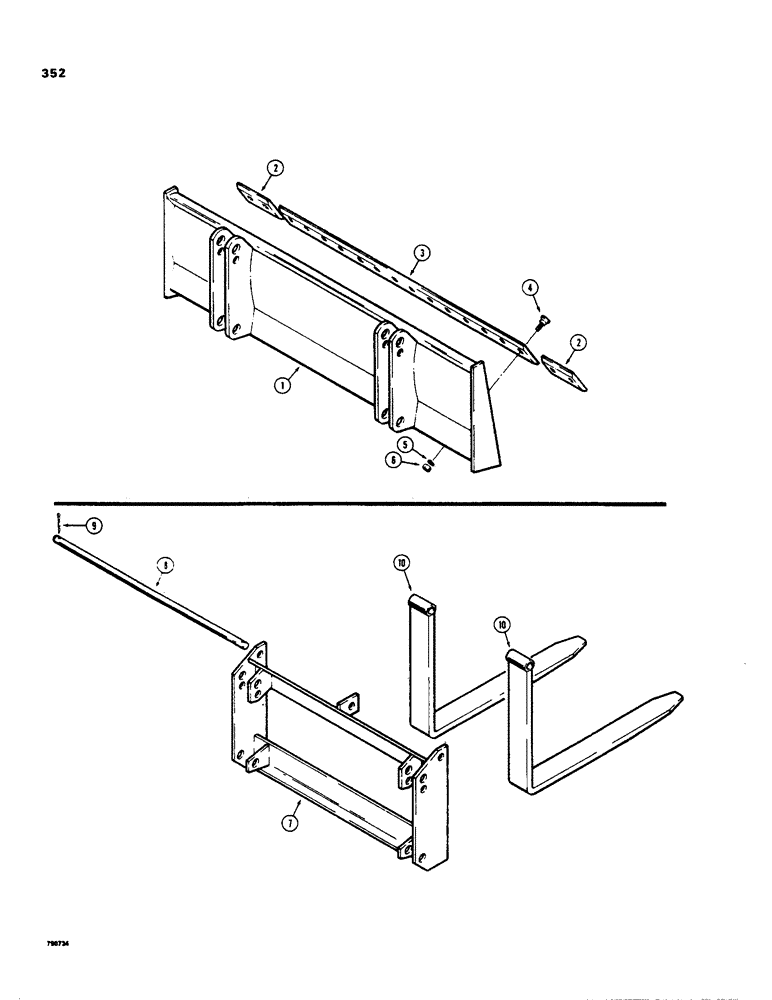

Запчасти Case 35 (352) - LOADER BLADE

D11944

BLADE - loader, machinery item, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - loader blade

1шт.

2

38150

EDGE

CUTTING EDGE - moldboard, end

2шт.

3

NLS

NO LONGER SERVICED

CUTTING EDGE - moldboard, center

1шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2" 13 NC x 1-3/4"

18шт.

5

92-8

LOCK WASHER,1/2"

18шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" -13 NC

18шт.

D11942

PALLET FORKS - loader, machinery item, Includes: Ref. 7 - 10

1шт.

7

D30953

FRAME - pallet fork

1шт.

8

D21656

SHAFT

- fork Mounting, pallet fork

1шт.

9

132-152

PIN

- cotter, 1/4" dia x 1-3/4", pallet fork

2шт.

10

D47999

FORK

- pallet

2шт.
