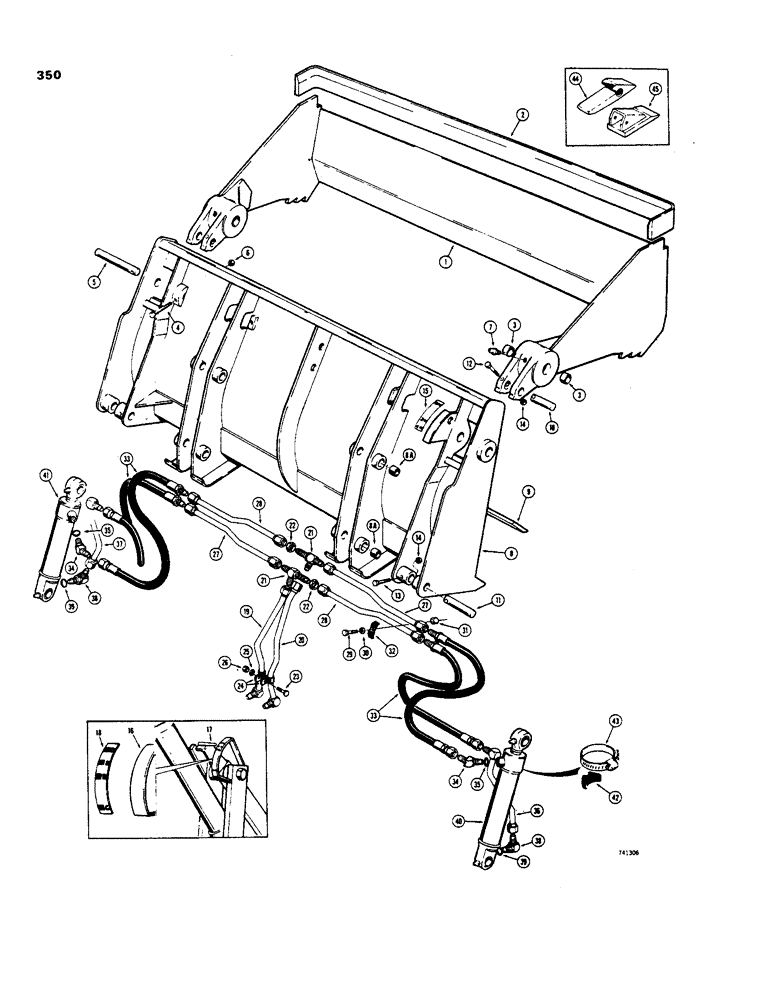

Запчасти Case 35 (350) - D54087 4-IN-1 BUCKET

D54087

BUCKET ASSEMBLY - 4 in 1, machinery item, Includes: Ref. 1 - 15

1шт.

D51384

SHELL

CLAM ASSEMBLY - bucket, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

2

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

CUTTING EDGE - clam

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- clam pivot

4шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

Pivot, Serial Range: clam-blade

2шт.

6

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock, 3/8" - 16 NC

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

D54088

BLADE ASSEMBLY - bucket, Includes: Ref. 8, 8A and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

8a

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket ear

8шт.

9

D51388

EDGE, CUTTING

CUTTING EDGE - blade

1шт.

10

D51392

PIN,31.72mm OD x 101.6mm L

- cylinder mounting, upper

2шт.

11

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

12

13656

BOLT - hex, 3/8" - 16 NC x 3-1/2", upper mounting pin

2шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-3/4", lower mounting pin

2шт.

14

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, lock, 3/8" - 16 NC

4шт.

15

321-1708

DECAL

- clam opening

1шт.

16

D51816

PLATE

INDICATOR - bucket position

1шт.

17

D51726

PIN

POINTER - bucket position

1шт.

18

321-1707

DECAL

- bucket position

1шт.

19

D51615

TUBE

- clam cylinder, closed end

1шт.

20

D51617

TUBE

- clam cylinder, rod end

1шт.

21

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

- bulkhead type

2шт.

22

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

381888

CLAMP - tube

2шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" -18 NC

1шт.

27

D51613

TUBE - clam cylinder, RH cylinder rod end and LH cylinder closed end

2шт.

28

D51611

TUBE - clam cylinder, RH cylinder closed end and LH cylinder rod end

2шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" -16 NC x 1-1/2"

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

D33552

BUSHING

SPACER - tube clamp

2шт.

32

D40236

CLAMP

- tube

2шт.

33

38410

HOSE

- clam cylinder, 22-1/2" (572 mm) long

4шт.

34

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 45 degree, Incl. Ref 35

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

D51621

TUBE

- hose to LH clam cylinder

1шт.

37

D51619

TUBE

- hose to LH clam cylinder

1шт.

38

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degree, Incl. Ref. 39

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

REF

INSTRUCTION

CYLINDER - RH clam, see Figures 238 - 244

1шт.

41

REF

INSTRUCTION

CYLINDER - LH clam, see Figures 238 - 244

1шт.

42

D38648

BLOCK

SADDLE - tube clamp

2шт.

43

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - cylinder to tube

2шт.

44

D58499

SUPPORT

SHANK - bucket tooth, optional

9шт.

45

D58576

TOOTH

POINT - tooth, H and L manufactured, 4-7/8" long,optional bucket

9шт.

45

D58577

TOOTH

POINT - tooth, Fabco manufactured, 4-3/4" long, optional bucket

9шт.
