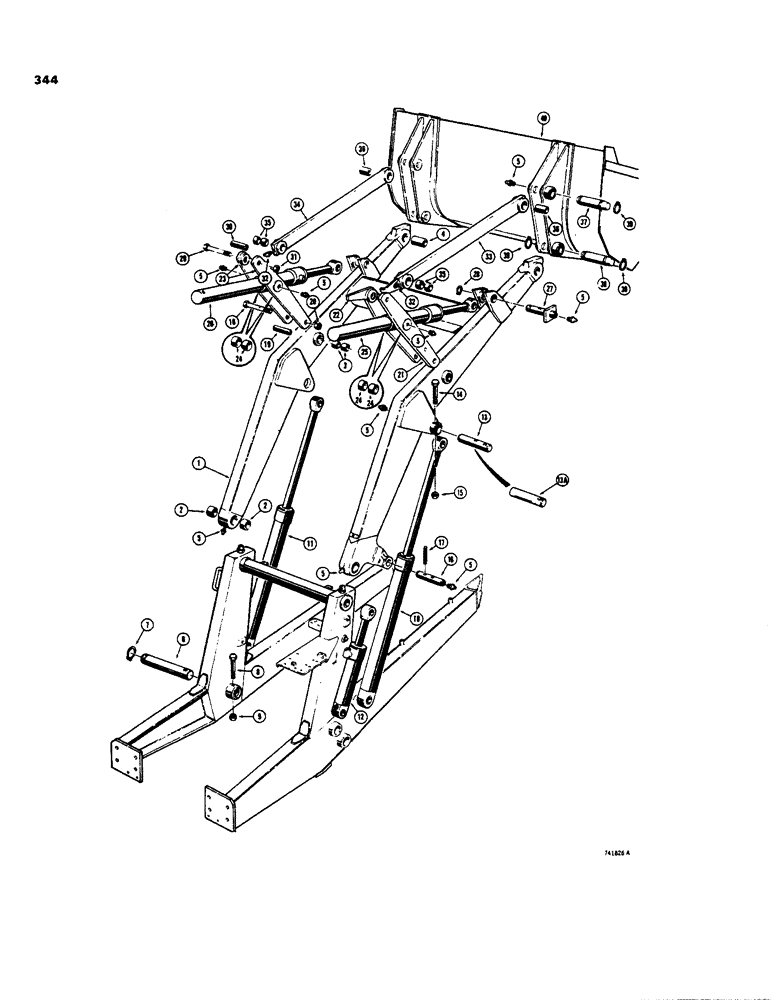

Запчасти Case 35 (344) - LOADER LIFT FRAME AND RELATED PARTS

1

D55343

ARM

FRAME - loader lift, Includes: Ref. 2 - 4

1шт.

2

D30935

BUSHING,47.85mm ID x 57.15mm OD x 33.27mm L

- frame, at subframe

4шт.

3

D37763

BUSHING

- frame, at tilt linkage

4шт.

4

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- frame, at bucket

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight, grease, 1/8" NPT

13шт.

6

D44915

AXLE PIN

PIN - cylinder retaining

3шт.

7

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

3шт.

8

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8" - 16 NC x 3-1/4"

3шт.

9

131-652

LOCK NUT,3/8"-16, GB

NUT - lock, hex, 3/8" - 16 NC

3шт.

10

REF

INSTRUCTION

CYLINDER - lift, RH, parts list Figure 224 - 230

1шт.

11

REF

INSTRUCTION

CYLINDER - lift, LH, parts list Figure 224 - 230

1шт.

12

REF

INSTRUCTION

CYLINDER - hydra-leveling, parts list Figures 218, 220

1шт.

13

D44983

PIN

- cylinder mounting, lift, used with cylinder that does not have grease fitting in rod eye, see Figure 224

2шт.

13a

D67357

PIN

- cylinder mounting, lift, used with cylinder that does have grease fitting in rod eye, see Figure 224

2шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

2шт.

15

131-652

LOCK NUT,3/8"-16, GB

NUT - lock, hex, 3/8" - 16 NC

2шт.

16

D31265

PIN

- cylinder mounting, hydra-leveling

1шт.

17

135-814

GROOVED PIN,5/16" x 2 3/4", Type E, Hardened

Pin, Grooved, 5/16" x 2 3/4", Type E, Hardened

1шт.

18

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

2шт.

19

D31219

BUSHING,26.67mm ID x 38.08mm OD x 101.6mm L

SPACER - bushing

2шт.

20

131-659

NUT,1"-8, GB

NUT - lock, hex, 1" - 8 NC

2шт.

21

D44996

DRAG LINK

LINK - tilt cylinder, RH outer

1шт.

22

D45017

DRAG LINK

LINK - tilt cylinder, RH inner

1шт.

23

D44997

ARTICULATION

LINK - tilt cylinder, LH inner and outer, Includes: Ref. 24

2шт.

24

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link, used on all tilt links

1шт.

25

REF

INSTRUCTION

CYLINDER - tilt, RH parts list Figures 232, 234

1шт.

26

REF

INSTRUCTION

CYLINDER - tilt, LH, parts list Figures 232, 234

1шт.

27

D45001

PIN

- cylinder retaining, tilt

2шт.

28

D25279

SNAP RING,M35, Int

RING - snap

2шт.

29

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

2шт.

30

D45904

BUSHING,26.67mm ID x 38.07mm OD x 99.21mm L

SPACER - bushing

2шт.

31

131-659

NUT,1"-8, GB

NUT - lock, hex 1" -8 NC

2шт.

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

33

D30945

DRAG LINK

ARM - tilt, RH

1шт.

34

D30947

SUN VISOR

ARM - tilt, LH, Includes: Ref. 35 and 36

1шт.

35

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- arm, at bucket, D30945 and D30947 arm

2шт.

36

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- arm, at bucket, D30945 and D30947 arm

1шт.

37

D37287

PIN

- bucket, upper

2шт.

38

D37286

PIN

- bucket, lower

2шт.

39

D25279

SNAP RING,M35, Int

RING - pin retaining

8шт.

40

REF

INSTRUCTION

BUCKET - loader, see Figures 346 - 350 for options

1шт.
