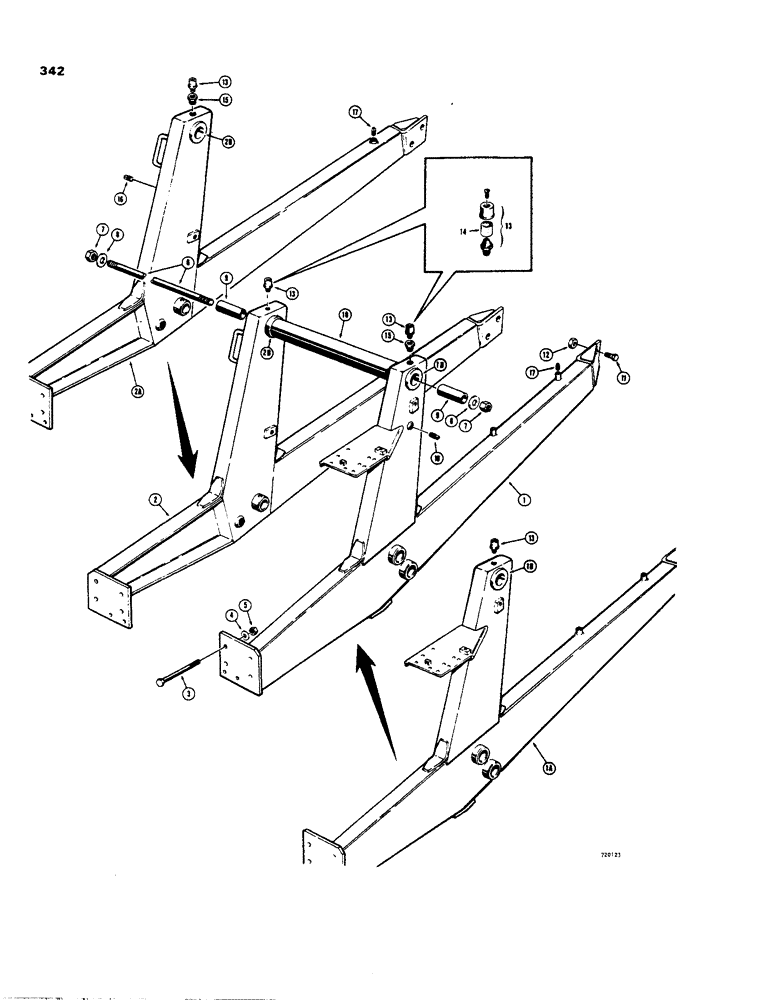

Запчасти Case 35 (342) - LOADER SUBFRAME AND RELATED PARTS

1

D49905

FRAME - sub, loader, RH identified by tapped holes for fill and check plugs

1шт.

1a

D55154

FRAME

- sub, loader, RH does not have tapped holes for fill and check plugs, before loader, Includes: Ref. 1B, Serial Range: -52289995

1шт.

1a

D57503

FRAME

- sub, loader, RH does not have tapped holes for fill and check plugs, loader, Includes: Ref. 1B, Start Serial: 52289995

1шт.

D55766 and D55153 subframe are not equipped with ROPS mounting brackets, not required with cab mounting. If tractor is equipped with ROPS, order D57503 RH subframe of D57504 LH subframe.

1шт.

1b

D52277

BOSS

- bushing spacer, welded to loader subframe

1шт.

2

D49904

FRAME - sub, loader LH does not have tapped holes for for fill and check plugs

1шт.

2a

D57504

FRAME

- sub, loader, LH, identified by tapped holes for fill and check plugs, Includes: Ref. 2B

1шт.

D55766 and D55153 subframe are not equipped with ROPS mounting brackets, not required with cab mounting. If tractor is equipped with ROPS, order D57503 RH subframe of D57504 LH subframe.

1шт.

2b

D52277

BOSS

- bushing spacer, welded to loader subframe

1шт.

3

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

- hex, 5/8" - 11 NC x 8"

8шт.

4

A28084

WASHER

- special

8шт.

5

129-563

NUT,5/8"-11, G8

- hex, lock, 5/8" - 11 NC

8шт.

6

D37713

ROD

- tie, subframe

1шт.

7

131-659

NUT,1"-8, GB

NUT - lock, hex, 1" -8NC

2шт.

8

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- special

2шт.

9

D52278

SLEEVE,25.78mm ID x 47.63mm OD x 121.41mm L

- spacer

2шт.

10

D37772

TUBE

- subframe

1шт.

11

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

12

131-657

LOCK NUT,3/4"-10, GB

NUT - lock, hex, 3/4" - 10 NC

4шт.

13

31543

BREATHER

- hydrualic, Includes: Ref. 14

2шт.

14

T14011

ELEMENT

- breather, if serviceable

1шт.

15

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - pipe, 1" NPT x 1/4' NPT

1шт.

16

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, square head, 3/8" NPT

1-2шт.

17

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head, 1/4" NPT

1шт.

18

D59918

BRACKET - tube mounting, welded to subframe, models with noise control, not shown

1шт.
